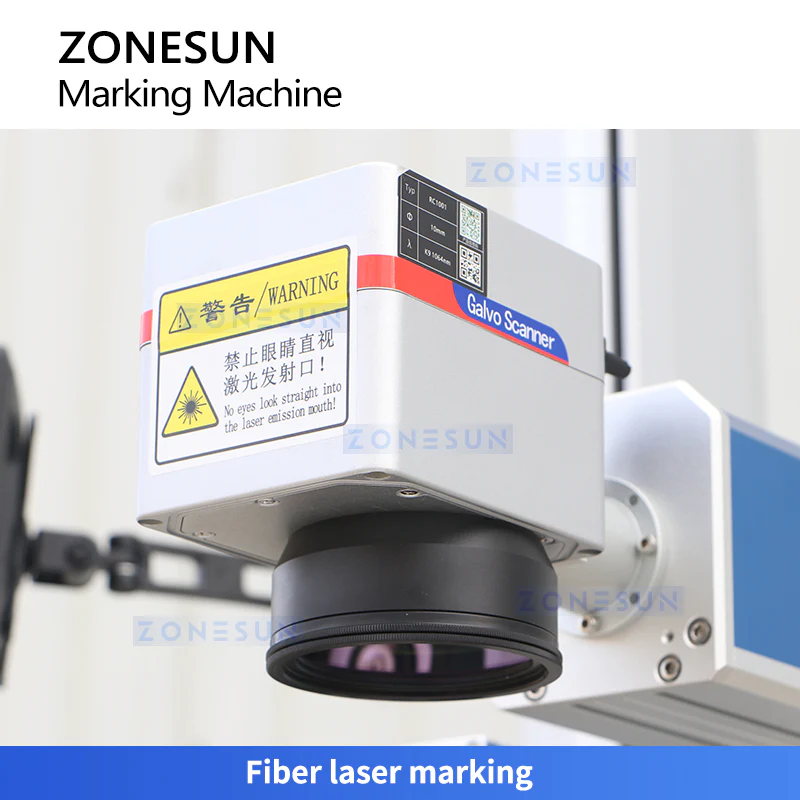

The ZONESUN ZS-LMR1 is a fully integrated Roll to Roll Rewinder and Fiber Laser Coding Machine designed to streamline high-volume label processing. Combining precise laser marking with efficient label rewinding, this system eliminates manual handling and ensures permanent, high-resolution codes on laminated labels. The fiber laser delivers crisp markings at speeds up to 5000mm/s, while the rewinder supports label widths up to 120mm and roll diameters up to 250mm. Ideal for traceability, batch coding, and compliance labeling, ZS-LMR1 boosts productivity and accuracy in packaging, cosmetics, pharmaceuticals, and logistics operations.

PARAMETER

• Machine Name: Fiber Laser Marking Machine
• Voltage: 220V/110V 50-60Hz
• Power Consumption: ≤500W
• Laser Wavelength: 1064nm
• Laser Output Power: 20W
• Modulation Frequency: 20KHz-180KHz
• Beam Quality: <1.5
• Marking Speed: 5000mm/s
• Marking Depth: 0.01-2mm
• Minimum Character Height: 0.15mm
• Minimum Focus Spot: 0.005mm
• Lifting Stroke of Laser: 500mm
• Applicable Labels: Laminated Label
• Graphics Formats: AI, BMP, PLT, DXF, DST
• Marking Area: 110*110mm
• Cooling Way: Air Cooling
• Packaging Size: About 1310*640*660mm
• Gross Weight: About 111kg

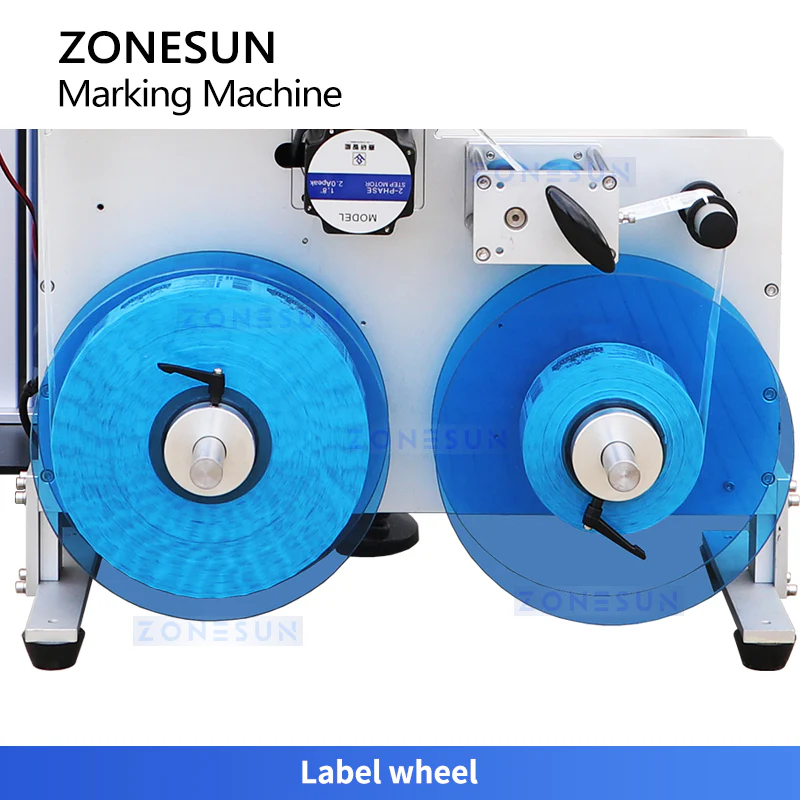

• Machine Model: ZS-RM2
• Voltage: 220V/110V 50-60Hz
• Power: 400W
• Rolling Speed: 0-20m/min
• Applicable Label Width: ≤120mm
• Label Roll Inside Diameter: 76mm
• Label Roll Outer Diameter: Max 250mm
• One Rolling Direction: Roll in positive direction
• Machine Size: About 660*400*510mm
• Package Size: About 760*500*650mm
• Net Weight/Gross Weight: About 30kg/40kg
