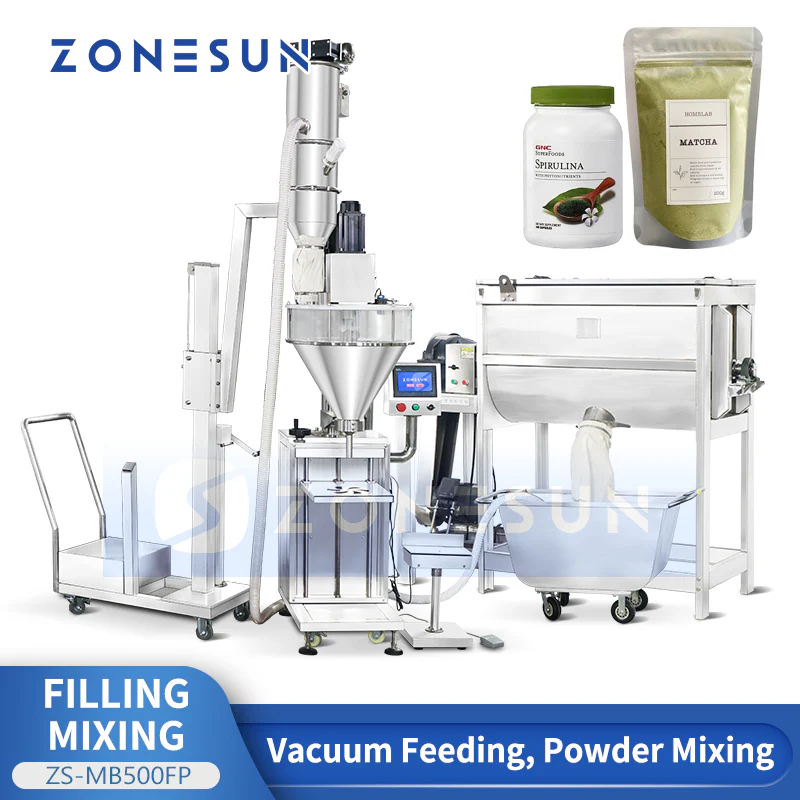

ZONESUN ZS-MB500FP Semi Automatic Powder Mixing Feeding Filling Machine
The ZS-MB500FP integrates mixing, vacuum feeding, and auger filling into one streamlined system. Designed for powders like flour, metal dust, supplements, and starch, it automates pretreatment, material transfer, and bottle filling with precision and efficiency. Ideal for small to medium-scale production lines in food, chemical, and health industries.
Specification Details
Model ZS-BM500
Voltage 380V
Power 4 kW
Capacity 500 Liters (volume-based; weight varies by material density)
Rotating Speed 15 rpm
Machine Material Stainless Steel
Package Size Approx. 2130 × 890 × 1860 mm
Package Weight Approx. 458 kg
Specification Details
Model ZS-FM710
Voltage 110V / 220V / 3-380V, 50–60Hz
Main Motor Power 1.25 kW
Filling Type Weight Control or Auger Filling
Filling Range Approx. 10–2000 g
Suitable Bottle Diameter Approx. 25–150 mm
Suitable Bottle Height Approx. 60–300 mm
Hopper Capacity Approx. 25 Liters
Working Speed Approx. 1–30 bottles per minute
Machine Dimensions Approx. 450 × 650 × 1860 mm
Weighing Device Size Approx. 265 × 265 × 570 mm
Machine Weight Approx. 128 kg
Package Dimensions Approx. 1900 × 2170 × 820 mm
Package Weight Approx. 171 kg
Specification Details
Model ZS-VFP1
Voltage 110V / 220V, 50–60Hz
Working Capacity 350–700 kg/h
Hopper Capacity 4.1 Liters
Suitable Product Requires material specific gravity and transport distance (horizontal & vertical)
Working Pressure 0.6–0.8 Mpa
Suction Hose Length 5 meters
Machine Dimensions Approx. Ø213 × 790 mm
Package Dimensions Approx. 1140 × 540 × 1840 mm
Package Weight Approx. 114 kg
The ZS-MB500FP integrates mixing, vacuum feeding, and auger filling into one streamlined system. Designed for powders like flour, metal dust, supplements, and starch, it automates pretreatment, material transfer, and bottle filling with precision and efficiency. Ideal for small to medium-scale production lines in food, chemical, and health industries.
Specification Details
Model ZS-BM500
Voltage 380V
Power 4 kW
Capacity 500 Liters (volume-based; weight varies by material density)
Rotating Speed 15 rpm
Machine Material Stainless Steel
Package Size Approx. 2130 × 890 × 1860 mm
Package Weight Approx. 458 kg
Specification Details
Model ZS-FM710
Voltage 110V / 220V / 3-380V, 50–60Hz
Main Motor Power 1.25 kW
Filling Type Weight Control or Auger Filling
Filling Range Approx. 10–2000 g
Suitable Bottle Diameter Approx. 25–150 mm
Suitable Bottle Height Approx. 60–300 mm
Hopper Capacity Approx. 25 Liters
Working Speed Approx. 1–30 bottles per minute
Machine Dimensions Approx. 450 × 650 × 1860 mm
Weighing Device Size Approx. 265 × 265 × 570 mm
Machine Weight Approx. 128 kg
Package Dimensions Approx. 1900 × 2170 × 820 mm
Package Weight Approx. 171 kg
Specification Details
Model ZS-VFP1
Voltage 110V / 220V, 50–60Hz
Working Capacity 350–700 kg/h
Hopper Capacity 4.1 Liters
Suitable Product Requires material specific gravity and transport distance (horizontal & vertical)
Working Pressure 0.6–0.8 Mpa
Suction Hose Length 5 meters
Machine Dimensions Approx. Ø213 × 790 mm
Package Dimensions Approx. 1140 × 540 × 1840 mm
Package Weight Approx. 114 kg
Original: $9,499.00
-70%$9,499.00
$2,849.70Description
The ZS-MB500FP integrates mixing, vacuum feeding, and auger filling into one streamlined system. Designed for powders like flour, metal dust, supplements, and starch, it automates pretreatment, material transfer, and bottle filling with precision and efficiency. Ideal for small to medium-scale production lines in food, chemical, and health industries.
Specification Details
Model ZS-BM500
Voltage 380V
Power 4 kW
Capacity 500 Liters (volume-based; weight varies by material density)
Rotating Speed 15 rpm
Machine Material Stainless Steel
Package Size Approx. 2130 × 890 × 1860 mm
Package Weight Approx. 458 kg
Specification Details
Model ZS-FM710
Voltage 110V / 220V / 3-380V, 50–60Hz
Main Motor Power 1.25 kW
Filling Type Weight Control or Auger Filling
Filling Range Approx. 10–2000 g
Suitable Bottle Diameter Approx. 25–150 mm
Suitable Bottle Height Approx. 60–300 mm
Hopper Capacity Approx. 25 Liters
Working Speed Approx. 1–30 bottles per minute
Machine Dimensions Approx. 450 × 650 × 1860 mm
Weighing Device Size Approx. 265 × 265 × 570 mm
Machine Weight Approx. 128 kg
Package Dimensions Approx. 1900 × 2170 × 820 mm
Package Weight Approx. 171 kg
Specification Details
Model ZS-VFP1
Voltage 110V / 220V, 50–60Hz
Working Capacity 350–700 kg/h
Hopper Capacity 4.1 Liters
Suitable Product Requires material specific gravity and transport distance (horizontal & vertical)
Working Pressure 0.6–0.8 Mpa
Suction Hose Length 5 meters
Machine Dimensions Approx. Ø213 × 790 mm
Package Dimensions Approx. 1140 × 540 × 1840 mm
Package Weight Approx. 114 kg
