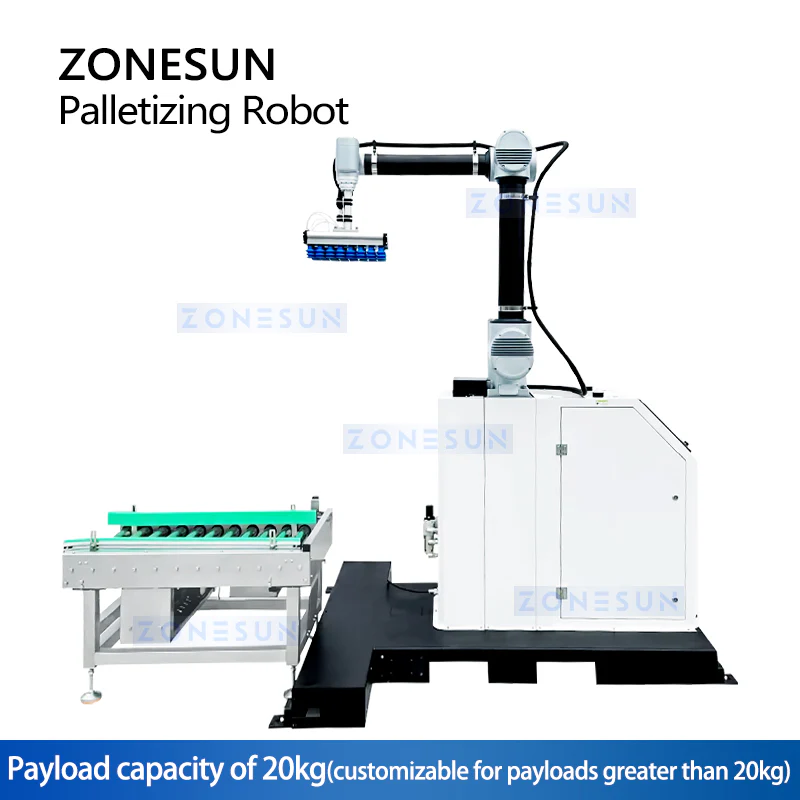

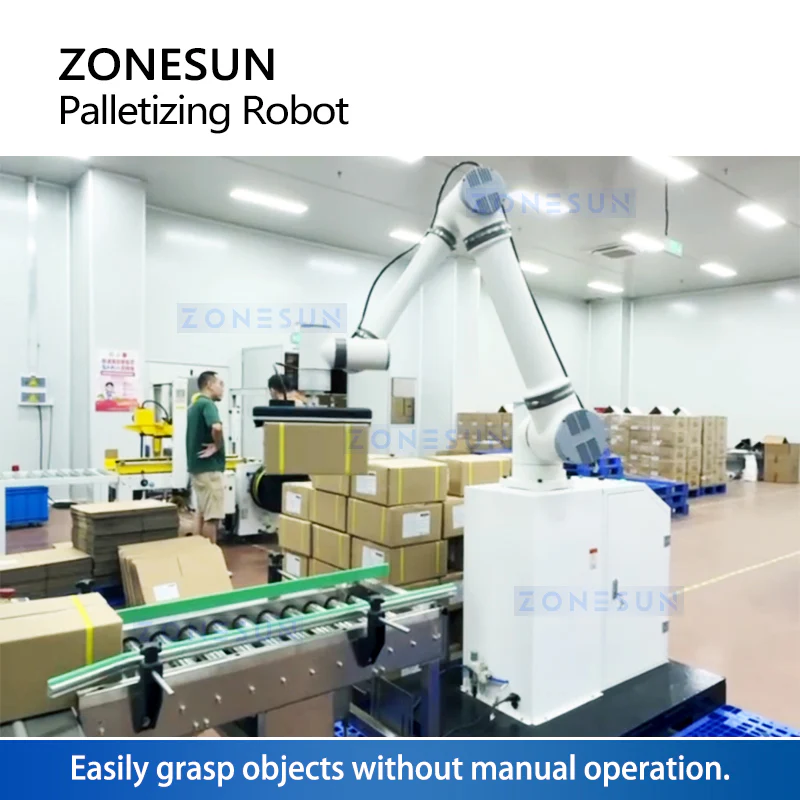

ZONESUN ZS-MD20A Robotic Palletizer for Warehouse & Factory End-of-Line Automation
The ZONESUN ZS-MD20A is a high-performance robotic palletizer engineered to enhance logistics and packaging efficiency in industrial settings. With a 20kg payload capacity and a 1460mm working radius, it accommodates a wide range of carton sizes and pallet configurations. Capable of stacking up to 8 pallets per minute, this compact yet powerful unit is ideal for factories, warehouses, and distribution centers seeking automation in their end-of-line operations. Its precise motion control and compatibility with cartons from 180–500mm in length make it a reliable solution for high-throughput environments.
ZONESUN ZS-MD20A Palletizing Robot – Technical Specifications
Parameter Specification
Model ZS-MD20A
Payload Capacity 20 kg
Working Radius 1460 mm
Palletizing Height (Excl. Pallet) 1700 mm
Palletizing Height (Incl. Pallet) 1950 mm
Pallet Size 1200 mm × 1200 mm
Palletizing Speed 8 pallets/min
Applicable Carton Size
– Length 180–500 mm
– Width 200–450 mm
– Height 200–400 mm
Power Supply 220V, 2.5 kW
Machine Weight 82 kg
Instruction Video
The ZONESUN ZS-MD20A is a high-performance robotic palletizer engineered to enhance logistics and packaging efficiency in industrial settings. With a 20kg payload capacity and a 1460mm working radius, it accommodates a wide range of carton sizes and pallet configurations. Capable of stacking up to 8 pallets per minute, this compact yet powerful unit is ideal for factories, warehouses, and distribution centers seeking automation in their end-of-line operations. Its precise motion control and compatibility with cartons from 180–500mm in length make it a reliable solution for high-throughput environments.
ZONESUN ZS-MD20A Palletizing Robot – Technical Specifications
Parameter Specification
Model ZS-MD20A
Payload Capacity 20 kg
Working Radius 1460 mm
Palletizing Height (Excl. Pallet) 1700 mm
Palletizing Height (Incl. Pallet) 1950 mm
Pallet Size 1200 mm × 1200 mm
Palletizing Speed 8 pallets/min
Applicable Carton Size
– Length 180–500 mm
– Width 200–450 mm
– Height 200–400 mm
Power Supply 220V, 2.5 kW
Machine Weight 82 kg
Instruction Video
Original: $20,299.00
-70%$20,299.00
$6,089.70Description
The ZONESUN ZS-MD20A is a high-performance robotic palletizer engineered to enhance logistics and packaging efficiency in industrial settings. With a 20kg payload capacity and a 1460mm working radius, it accommodates a wide range of carton sizes and pallet configurations. Capable of stacking up to 8 pallets per minute, this compact yet powerful unit is ideal for factories, warehouses, and distribution centers seeking automation in their end-of-line operations. Its precise motion control and compatibility with cartons from 180–500mm in length make it a reliable solution for high-throughput environments.
ZONESUN ZS-MD20A Palletizing Robot – Technical Specifications
Parameter Specification
Model ZS-MD20A
Payload Capacity 20 kg
Working Radius 1460 mm
Palletizing Height (Excl. Pallet) 1700 mm
Palletizing Height (Incl. Pallet) 1950 mm
Pallet Size 1200 mm × 1200 mm
Palletizing Speed 8 pallets/min
Applicable Carton Size
– Length 180–500 mm
– Width 200–450 mm
– Height 200–400 mm
Power Supply 220V, 2.5 kW
Machine Weight 82 kg
