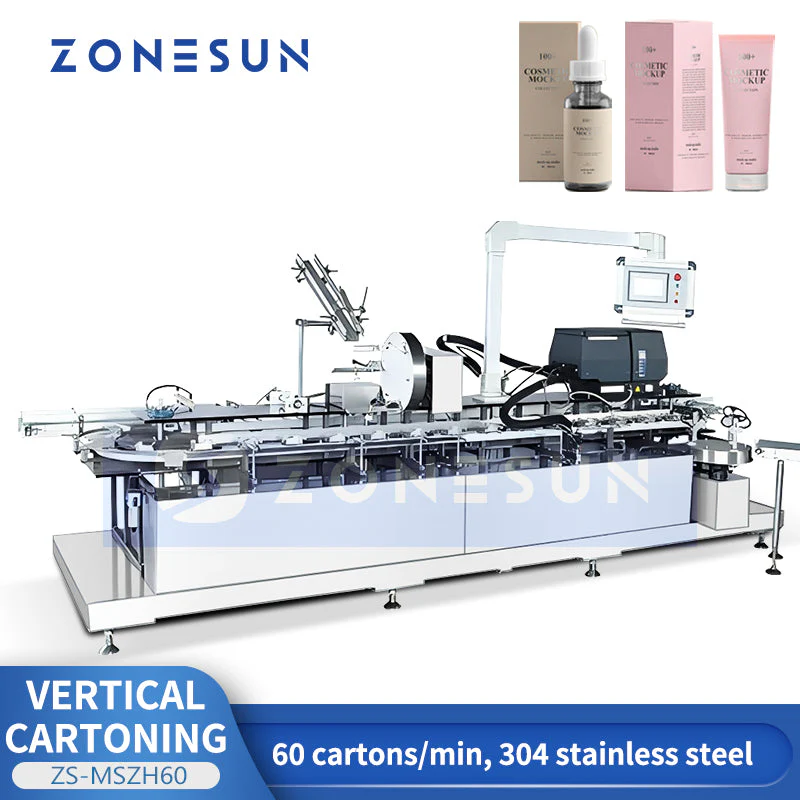

ZONESUN ZS-MSZH60 Automatic Vertical Tuck-in Carton Sealer For Bottles Jars and Tubes
Description

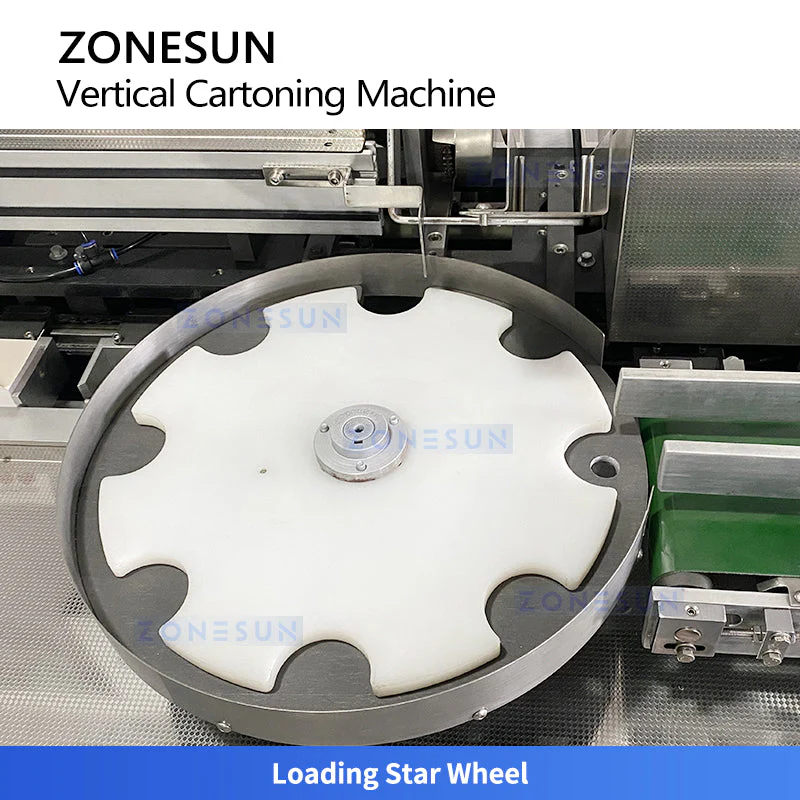

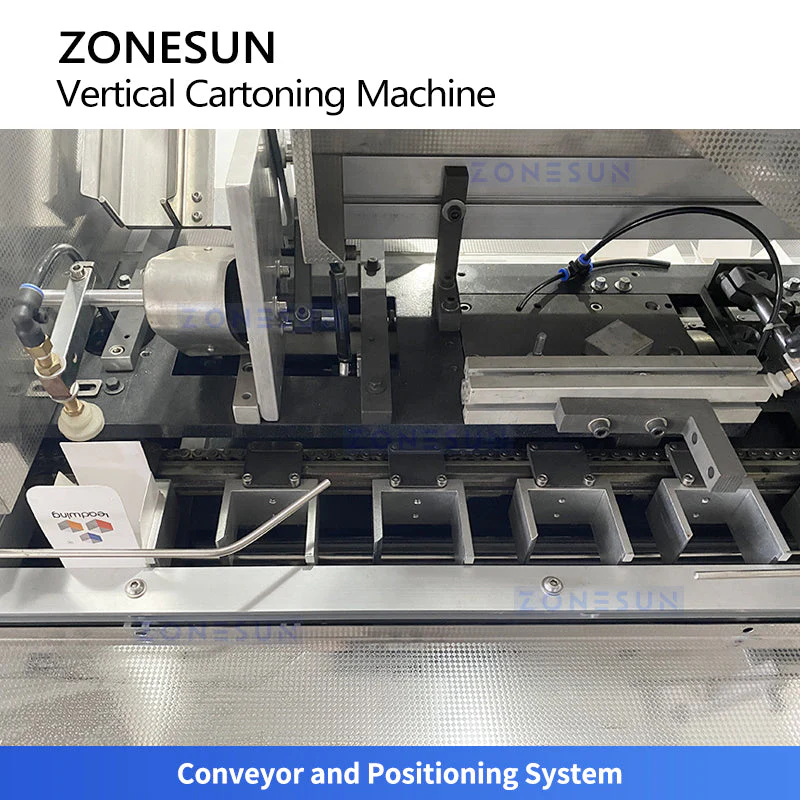

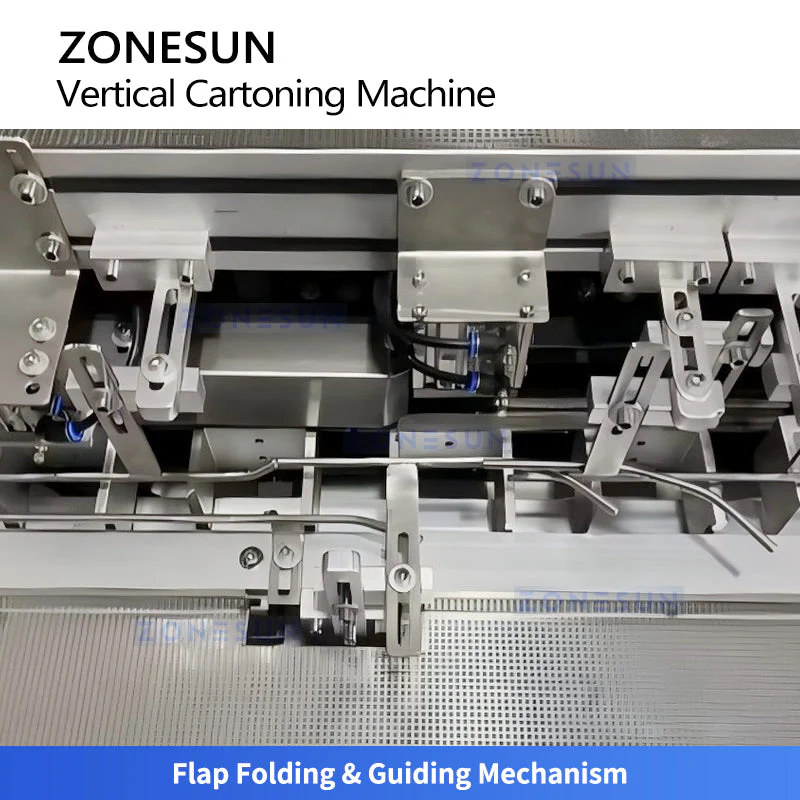

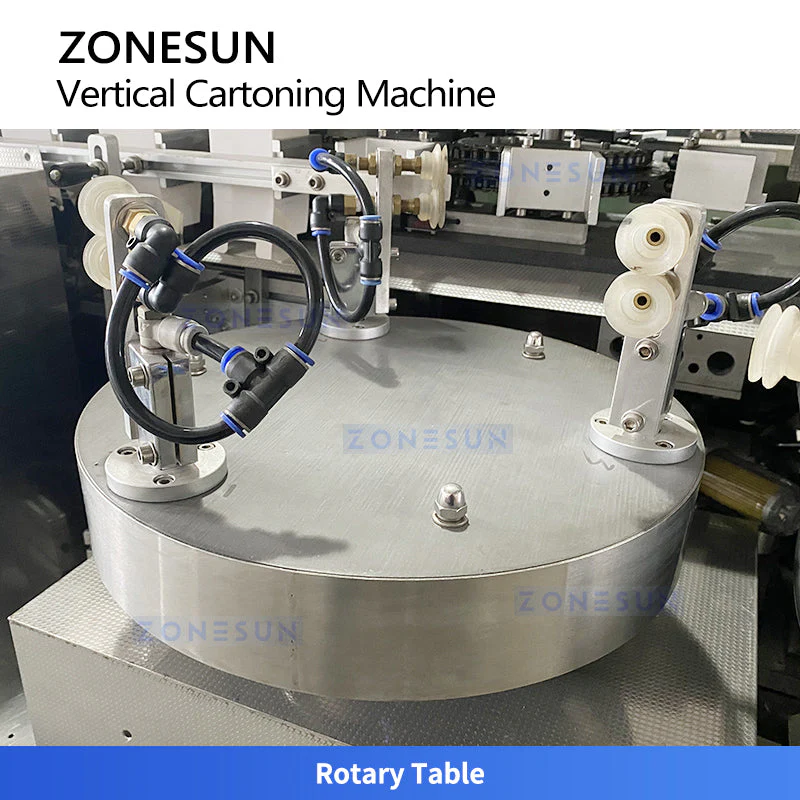

The ZONESUN ZS-MSZH60 is an automatic top-loading vertical cartoning machine designed for packing bottles, jars, and tubes in cosmetic and pharmaceutical industries. With a maximum output of 60 cartons per minute, it features 304 stainless steel construction and supports multiple sealing methods, including tuck-in and hot-melt glue. Its integrated rotary table, servo-driven conveying system, multi-step flap folding mechanism, and synchronized loading star wheel ensure smooth, accurate, and scratch-free high-speed operation. The compact, ergonomic design meets GMP requirements and fits seamlessly into modern production lines.
Parameter
- Model: ZS‑MSZH60
- Max. Output: 60 cartons/min
- Max. Box Size: Customized
- Motion Type: Intermittent motion
- Carton Quality Requirement: 250–400 g/m², pre‑folded with deep crease
- Max. Power: 8 kW
- Compressed Air Working Pressure: 0.6–0.8 MPa
- Compressed Air Consumption: 150–200 L/min
- Machine Dimensions: 2700 × 2020 × 1800 mm
- Weight: About 1500 kg
Description
The ZONESUN ZS-MSZH60 is an automatic top-loading vertical cartoning machine designed for packing bottles, jars, and tubes in cosmetic and pharmaceutical industries. With a maximum output of 60 cartons per minute, it features 304 stainless steel construction and supports multiple sealing methods, including tuck-in and hot-melt glue. Its integrated rotary table, servo-driven conveying system, multi-step flap folding mechanism, and synchronized loading star wheel ensure smooth, accurate, and scratch-free high-speed operation. The compact, ergonomic design meets GMP requirements and fits seamlessly into modern production lines.
Parameter
- Model: ZS‑MSZH60
- Max. Output: 60 cartons/min
- Max. Box Size: Customized
- Motion Type: Intermittent motion
- Carton Quality Requirement: 250–400 g/m², pre‑folded with deep crease
- Max. Power: 8 kW
- Compressed Air Working Pressure: 0.6–0.8 MPa
- Compressed Air Consumption: 150–200 L/min
- Machine Dimensions: 2700 × 2020 × 1800 mm
- Weight: About 1500 kg
Original: $62,000.00
-70%$62,000.00
$18,600.00Description
Description
The ZONESUN ZS-MSZH60 is an automatic top-loading vertical cartoning machine designed for packing bottles, jars, and tubes in cosmetic and pharmaceutical industries. With a maximum output of 60 cartons per minute, it features 304 stainless steel construction and supports multiple sealing methods, including tuck-in and hot-melt glue. Its integrated rotary table, servo-driven conveying system, multi-step flap folding mechanism, and synchronized loading star wheel ensure smooth, accurate, and scratch-free high-speed operation. The compact, ergonomic design meets GMP requirements and fits seamlessly into modern production lines.
Parameter
- Model: ZS‑MSZH60
- Max. Output: 60 cartons/min
- Max. Box Size: Customized
- Motion Type: Intermittent motion
- Carton Quality Requirement: 250–400 g/m², pre‑folded with deep crease
- Max. Power: 8 kW
- Compressed Air Working Pressure: 0.6–0.8 MPa
- Compressed Air Consumption: 150–200 L/min
- Machine Dimensions: 2700 × 2020 × 1800 mm
- Weight: About 1500 kg
