Description

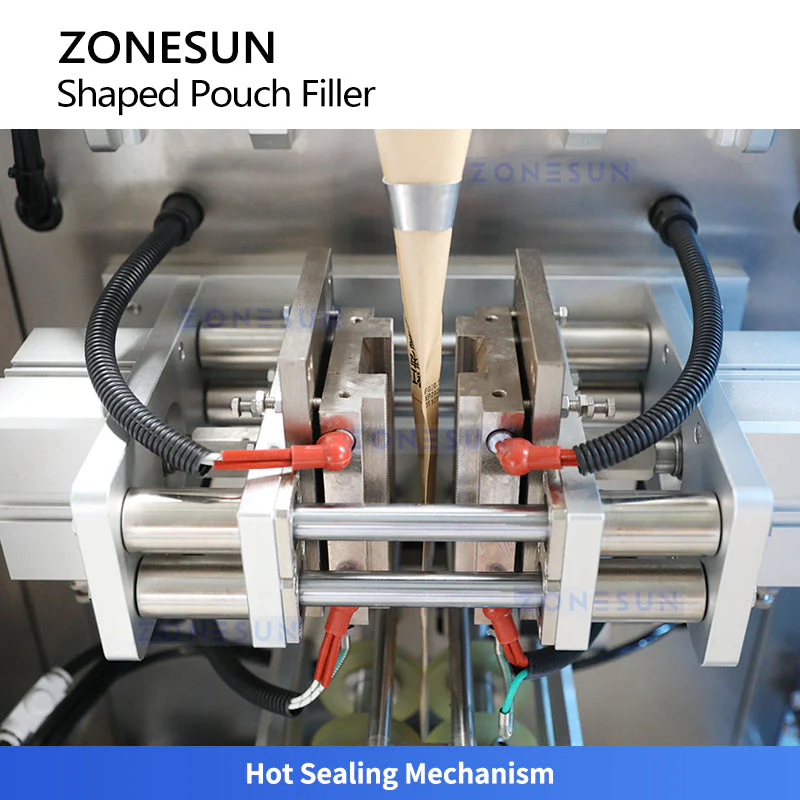

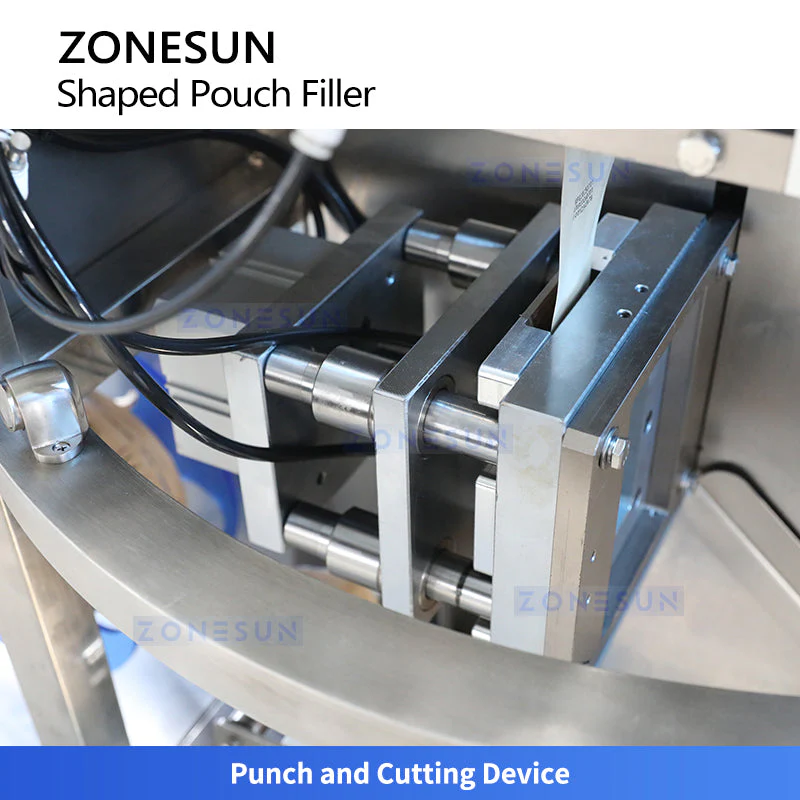

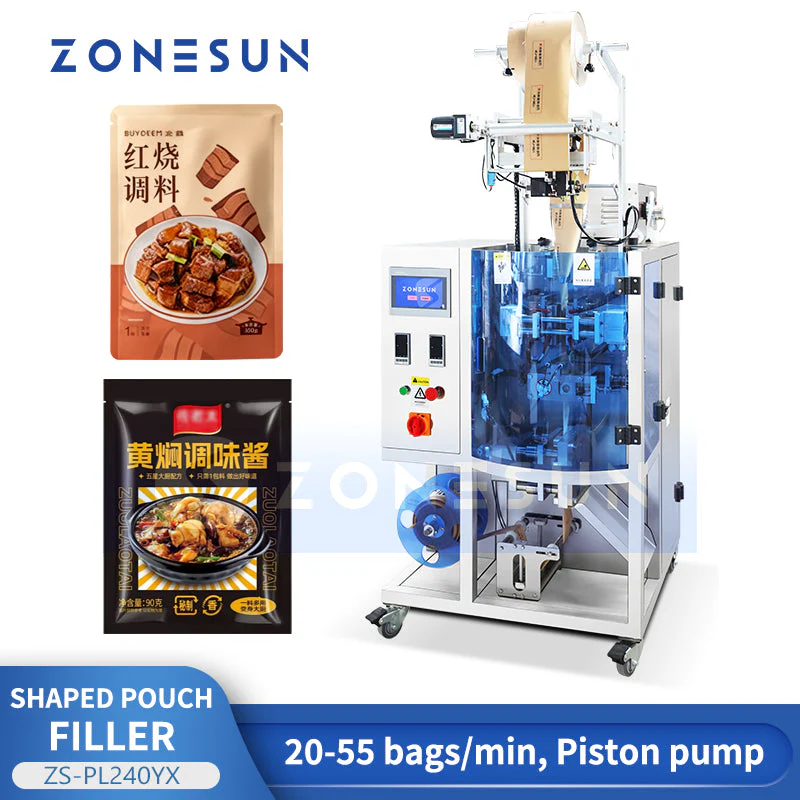

The ZONESUN ZS-PL240YX shaped pouch filling and sealing machine integrates automatic measuring, filling, forming, sealing, punching, and cutting for liquid sachets. It offers high filling accuracy, fast output, and easy operation. Sealing and cutting molds are fully customizable to match specific pouch designs. Widely us ed in food, cosmetics, and pharmaceutical industries, the machine supports optional coding, mixing, and heating functions to meet diverse production needs. Note: An external air compressor is required and must be purchased separately. Please contact customer service for customization details.

Parameter

• Model：ZS-PL240YX

• Voltage：110/220V, 50–60Hz

• Power：2 kW

• Metering Method：Piston pump, Magnetic pump

• Packaging Form：Round corner & back side sealing (customizable)

• Dosage Range：Standard：1-50ml（can be customized）

• Bag Size：Length 40–160 mm; Width 20–110 mm (can be customizable)

• Packaging Speed：30-60 bags/min (depending on actual material)

• Machine Size (L×W×H)：780 × 750 × 1800 mm

• Machine Weight：About 300 kg
