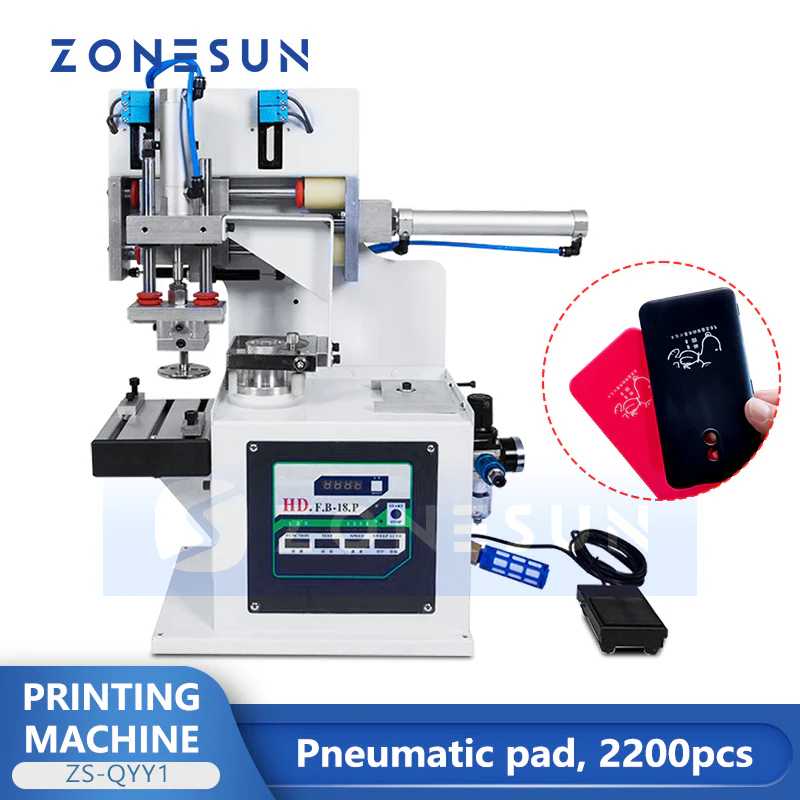

ZONESUN ZS-QYY1 Pneumatic Pad Printing Machine for Flat Surfaces
The ZONESUN ZS-QYY1 pneumatic pad printing machine is ideal for printing logos, batch numbers, expiration dates, and emblems on flat surfaces like plastic, metal, paper, cups, and boxes. Its compact design, low noise output, and scent-free operation make it suitable for both small workshops and industrial production lines. With stable performance and high-speed operation, it’s perfect for manufacturers seeking efficient and eco-friendly marking solutions.
ZONESUN ZS-QYY1 Steel Sheet Oil Tank Printing Machine
Technical Specifications
Parameter Value
Model ZS-QYY1
Compatible Sizes 100×250mm, 100×215mm, 85×175mm
Steel Sheet Size 100×250mm

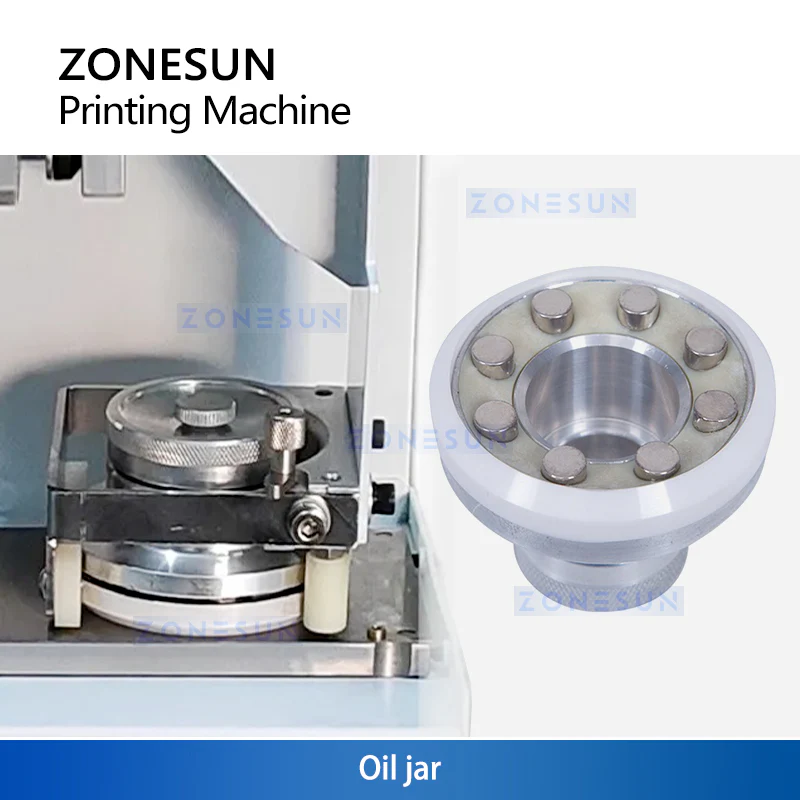

Oil Tank Diameter 90mm
Printing Area 80×80mm
Forward/Backward Stroke 125mm
Operation Speed 2200 cycles/hour
Power 50W
Power Supply AC 220V, 50/60Hz
Working Air Pressure 4–6 bar
Machine Dimensions 600×270×570mm
Net Weight 35kg










The ZONESUN ZS-QYY1 pneumatic pad printing machine is ideal for printing logos, batch numbers, expiration dates, and emblems on flat surfaces like plastic, metal, paper, cups, and boxes. Its compact design, low noise output, and scent-free operation make it suitable for both small workshops and industrial production lines. With stable performance and high-speed operation, it’s perfect for manufacturers seeking efficient and eco-friendly marking solutions.
ZONESUN ZS-QYY1 Steel Sheet Oil Tank Printing Machine
Technical Specifications
Parameter Value
Model ZS-QYY1
Compatible Sizes 100×250mm, 100×215mm, 85×175mm
Steel Sheet Size 100×250mm
Oil Tank Diameter 90mm
Printing Area 80×80mm
Forward/Backward Stroke 125mm
Operation Speed 2200 cycles/hour
Power 50W
Power Supply AC 220V, 50/60Hz
Working Air Pressure 4–6 bar
Machine Dimensions 600×270×570mm
Net Weight 35kg










Original: $890.00
-70%$890.00
$267.00Description
The ZONESUN ZS-QYY1 pneumatic pad printing machine is ideal for printing logos, batch numbers, expiration dates, and emblems on flat surfaces like plastic, metal, paper, cups, and boxes. Its compact design, low noise output, and scent-free operation make it suitable for both small workshops and industrial production lines. With stable performance and high-speed operation, it’s perfect for manufacturers seeking efficient and eco-friendly marking solutions.
ZONESUN ZS-QYY1 Steel Sheet Oil Tank Printing Machine
Technical Specifications
Parameter Value
Model ZS-QYY1
Compatible Sizes 100×250mm, 100×215mm, 85×175mm
Steel Sheet Size 100×250mm
Oil Tank Diameter 90mm
Printing Area 80×80mm
Forward/Backward Stroke 125mm
Operation Speed 2200 cycles/hour
Power 50W
Power Supply AC 220V, 50/60Hz
Working Air Pressure 4–6 bar
Machine Dimensions 600×270×570mm
Net Weight 35kg
