ZONESUN ZS-SBM2A Automatic Bottle Blow Molding Machine 2-Cavity with UV Heating
DESCRIPTION

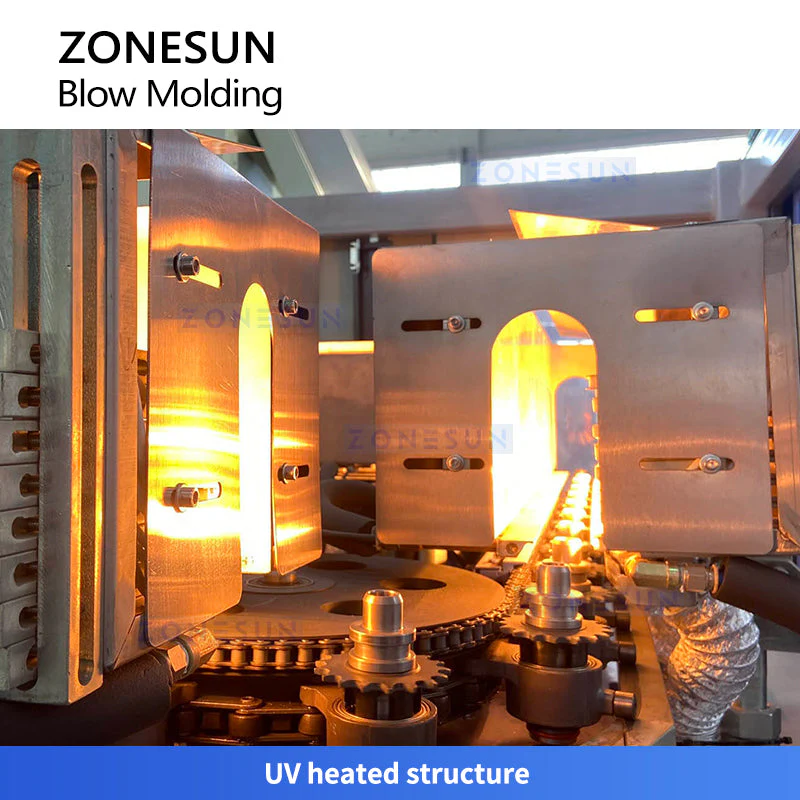

Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.
Parameters
- Model: ZS-SBM2A
- Cavity Count: 2
- Output: 1200–1300 bottles/hour
- Maximum Bottle Volume: 5 L
- Max. Bottle Mouth Diameter: 150 mm
- Max. Bottle Diameter: 180 mm
- Max. Bottle Height: 400 mm
- Number of Heating Tubes: 32 pcs
- Heating Tube Power: 1.5 kW
- Max. Heating Power: 48 kW
- Total Power Installed: 51 kW
- Actual Power Consumption: 35.7 kW
- Working Pressure: 5–6 kg/cm²
- Ambient Temperature Requirement: 10 °C
- Machine Dimensions: 4700 × 1600 × 1900 mm
- Machine Weight: 3000 kg
DESCRIPTION
Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.
Parameters
- Model: ZS-SBM2A
- Cavity Count: 2
- Output: 1200–1300 bottles/hour
- Maximum Bottle Volume: 5 L
- Max. Bottle Mouth Diameter: 150 mm
- Max. Bottle Diameter: 180 mm
- Max. Bottle Height: 400 mm
- Number of Heating Tubes: 32 pcs
- Heating Tube Power: 1.5 kW
- Max. Heating Power: 48 kW
- Total Power Installed: 51 kW
- Actual Power Consumption: 35.7 kW
- Working Pressure: 5–6 kg/cm²
- Ambient Temperature Requirement: 10 °C
- Machine Dimensions: 4700 × 1600 × 1900 mm
- Machine Weight: 3000 kg
Original: $88,999.00
-70%$88,999.00
$26,699.70Description
DESCRIPTION
Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.
Parameters
- Model: ZS-SBM2A
- Cavity Count: 2
- Output: 1200–1300 bottles/hour
- Maximum Bottle Volume: 5 L
- Max. Bottle Mouth Diameter: 150 mm
- Max. Bottle Diameter: 180 mm
- Max. Bottle Height: 400 mm
- Number of Heating Tubes: 32 pcs
- Heating Tube Power: 1.5 kW
- Max. Heating Power: 48 kW
- Total Power Installed: 51 kW
- Actual Power Consumption: 35.7 kW
- Working Pressure: 5–6 kg/cm²
- Ambient Temperature Requirement: 10 °C
- Machine Dimensions: 4700 × 1600 × 1900 mm
- Machine Weight: 3000 kg
