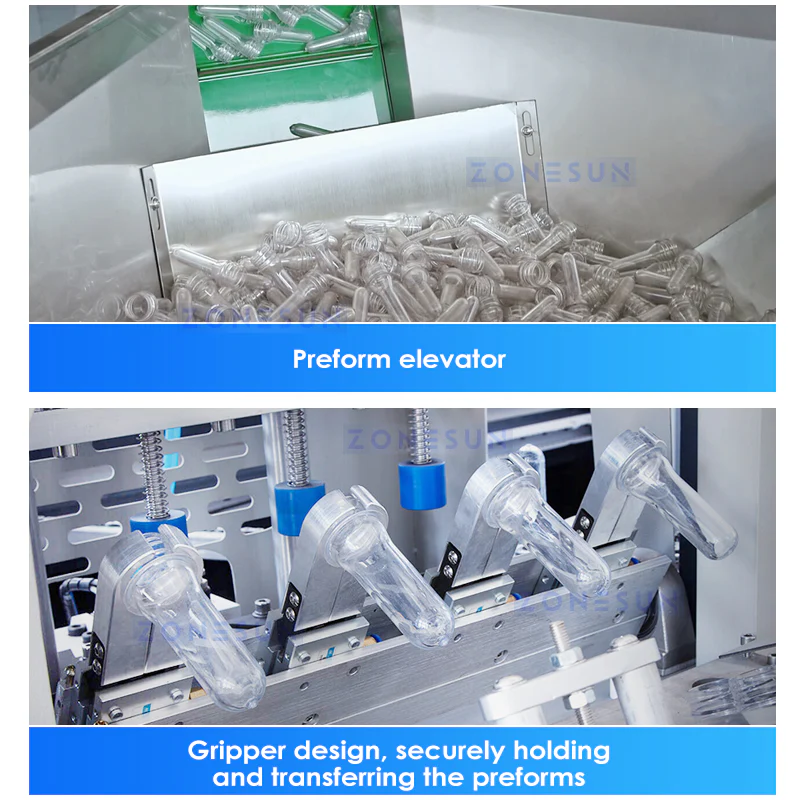

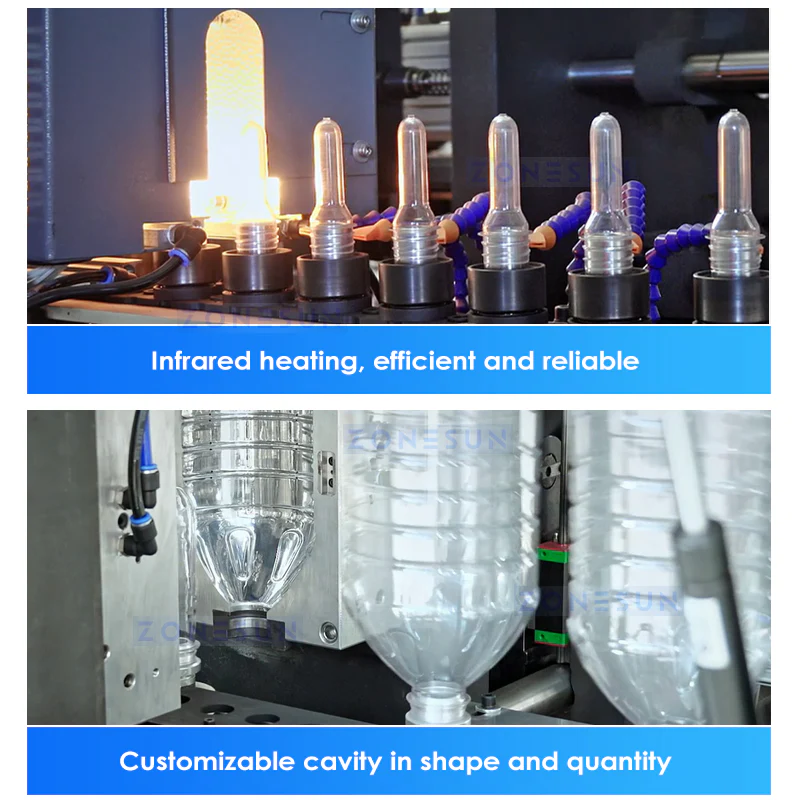

The ZS-SBM32A is a fully automatic stretch blow molding machine engineered for high-efficiency bottle production. From infrared heating to multi-cavity blowing options, it delivers precision and flexibility for manufacturing PET bottles ranging from 100ml to 2000ml. With pneumatic grippers, a preform elevator, and optional air conveyor integration, this machine ensures seamless operation across your production line. Ideal for beverage, cosmetic, and household packaging industries.

Parameter	ZS-SBM32A1	ZS-SBM32A2	ZS-SBM32A4	ZS-SBM32A6
Cavity	1	2	4	6
Container Volume	100–2000ml	100–2000ml	100–2000ml	100–2000ml
Mold Opening Stroke	180mm	180mm	180mm	180mm
Mold Thickness	300mm	300mm	300mm	300mm
Stretching Stroke	450mm	450mm	450mm	450mm
Capacity	1300bph	2600bph	3800bph	6500bph
Container Diameter	50–105mm	50–105mm	50–105mm	50–105mm
Container Height	80–280mm	80–280mm	80–280mm	80–280mm
Neck Range	28–38mm	28–38mm	28–38mm	28–38mm
Voltage/Frequency	380V / 50–60Hz	380V / 50–60Hz	380V / 50–60Hz	380V / 50–60Hz
Total Power	7kW	14kW	40kW	62kW
Heater Power	7kW	12kW	36kW	58kW
Blowing Pressure	8bar	8bar	8bar	8bar
Low Pressure	8bar	8bar	8bar	8bar
Air Low Consumption	1.0m³/min	2.0m³/min	2.3m³/min	2.5m³/min
High Air Consumption	1.6m³/min	3.2m³/min	4.8m³/min	6.5m³/min
Water Consumption	16–25L/min	25–35L/min	35–45L/min	45–60L/min
Dimension (L×W×H)	1.8×0.8×1.8m	2.0×1.0×1.8m	3.0×1.5×1.8m	4.2×1.8×1.8m
Weight	2000kg	2700kg	3800kg	5100kg
Pass Rate	≥99.8%	≥99.8%	≥99.7%	≥99.7%
