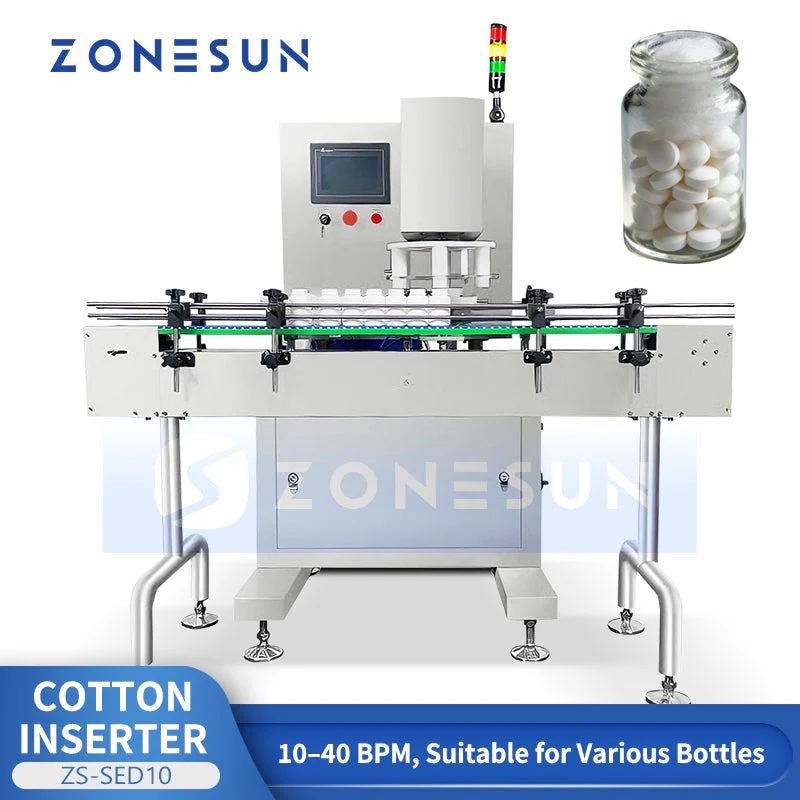

ZONESUN ZS-SED10 Automatic Cotton and Desiccant Inserting Machine Desiccant Feeder
Description

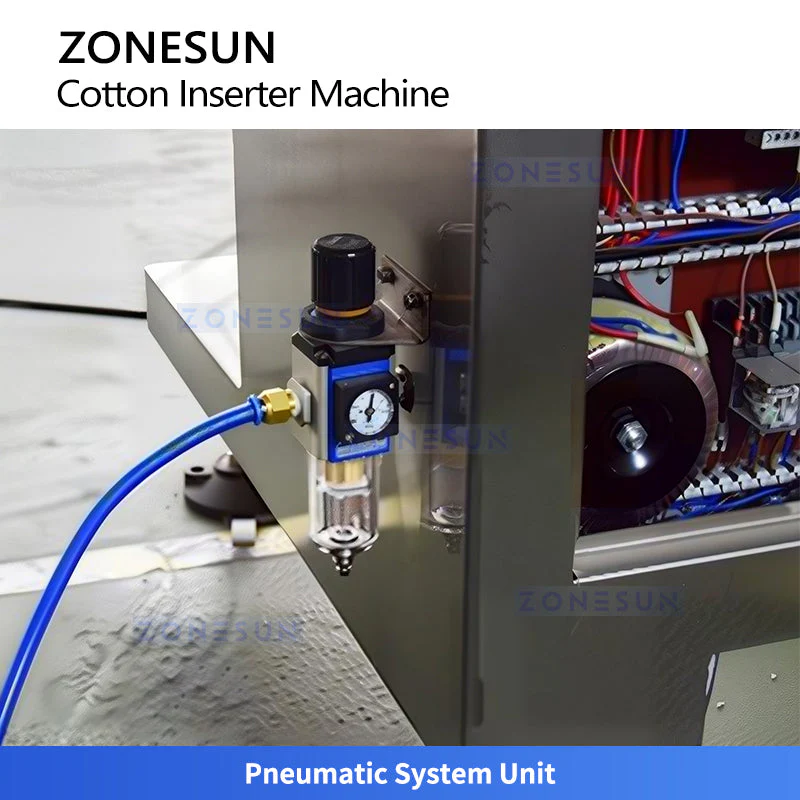

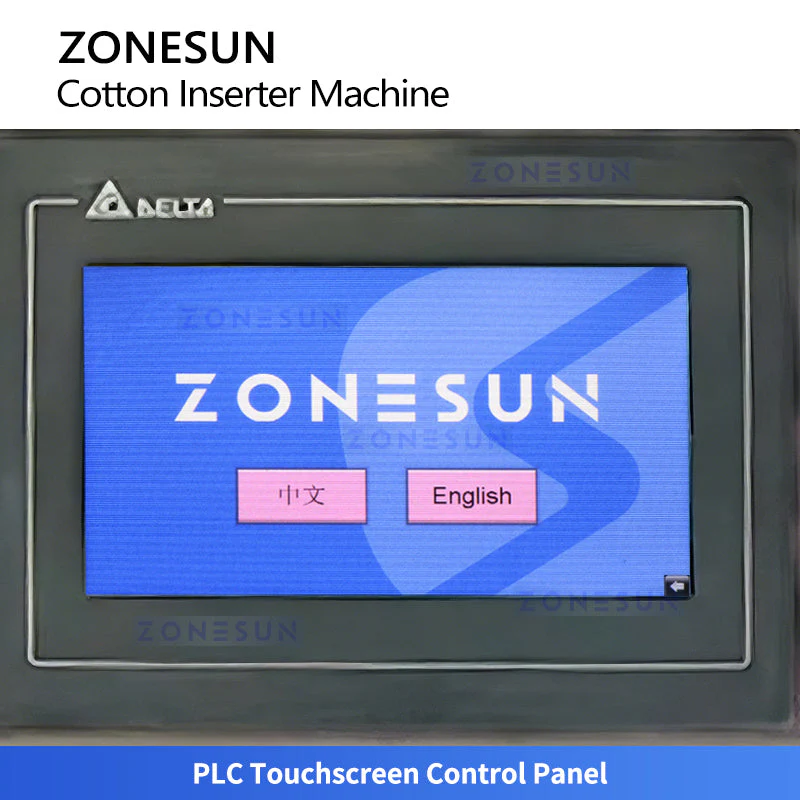

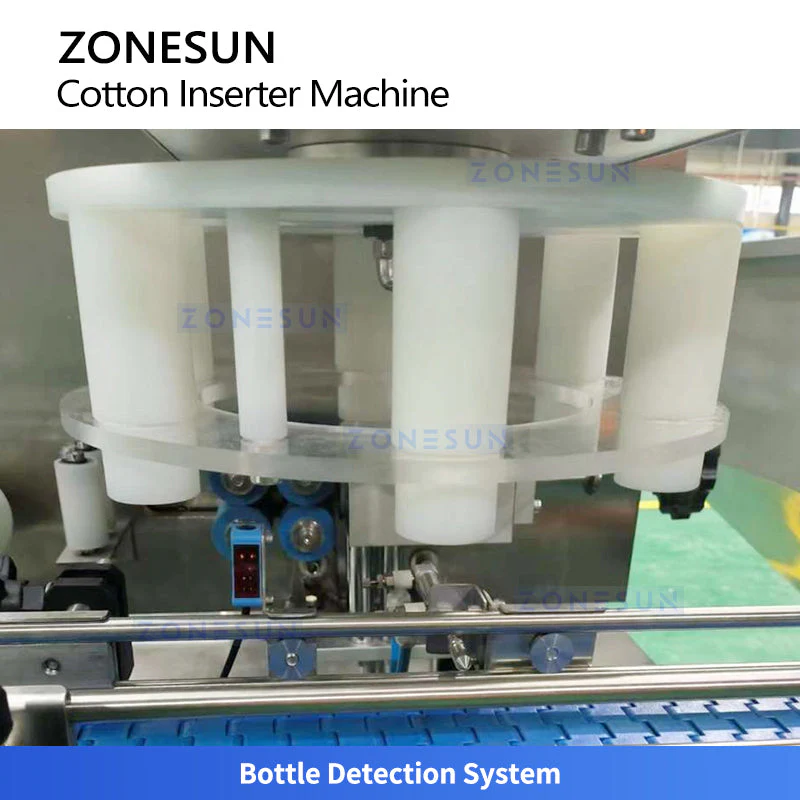

The ZONESUN ZS-SED10 is an automatic cotton desiccant inserting machine designed for round, square, oval, and flat bottles. Running at 10–40 bottles per minute, it integrates cotton feeding, bottle detection, pneumatic cutting, and conveyor transfer into one streamlined system. With its PLC touchscreen control, detection modules, and precision pneumatic unit, it ensures stable, efficient, and contamination-free operation. Compact design and customizable functions make it ideal for medium to large-scale production lines requiring reliable cotton or desiccant inserting solutions.
Parameter
- Model Name: ZS-SED10
-
Application: Suitable for round, square, oval, and flat bottles
- Bottle Diameter: 40–100 mm
- Bottle Height: 50–180 mm
- Cotton Swab Type: Round cotton swabs, diameter 25 mm (length 50–60 mm)
- Capacity: 10–40 bottles/min
- Voltage: AC 220 V, 50 Hz
- Power Consumption: 0.6 kW
- Air Supply Requirement: 0.6 MPa
- Machine Weight: 310 kg
- Overall Dimensions (L×W×H): 1360 × 1080 × 1410 mm
Description
The ZONESUN ZS-SED10 is an automatic cotton desiccant inserting machine designed for round, square, oval, and flat bottles. Running at 10–40 bottles per minute, it integrates cotton feeding, bottle detection, pneumatic cutting, and conveyor transfer into one streamlined system. With its PLC touchscreen control, detection modules, and precision pneumatic unit, it ensures stable, efficient, and contamination-free operation. Compact design and customizable functions make it ideal for medium to large-scale production lines requiring reliable cotton or desiccant inserting solutions.
Parameter
- Model Name: ZS-SED10
-
Application: Suitable for round, square, oval, and flat bottles
- Bottle Diameter: 40–100 mm
- Bottle Height: 50–180 mm
- Cotton Swab Type: Round cotton swabs, diameter 25 mm (length 50–60 mm)
- Capacity: 10–40 bottles/min
- Voltage: AC 220 V, 50 Hz
- Power Consumption: 0.6 kW
- Air Supply Requirement: 0.6 MPa
- Machine Weight: 310 kg
- Overall Dimensions (L×W×H): 1360 × 1080 × 1410 mm
