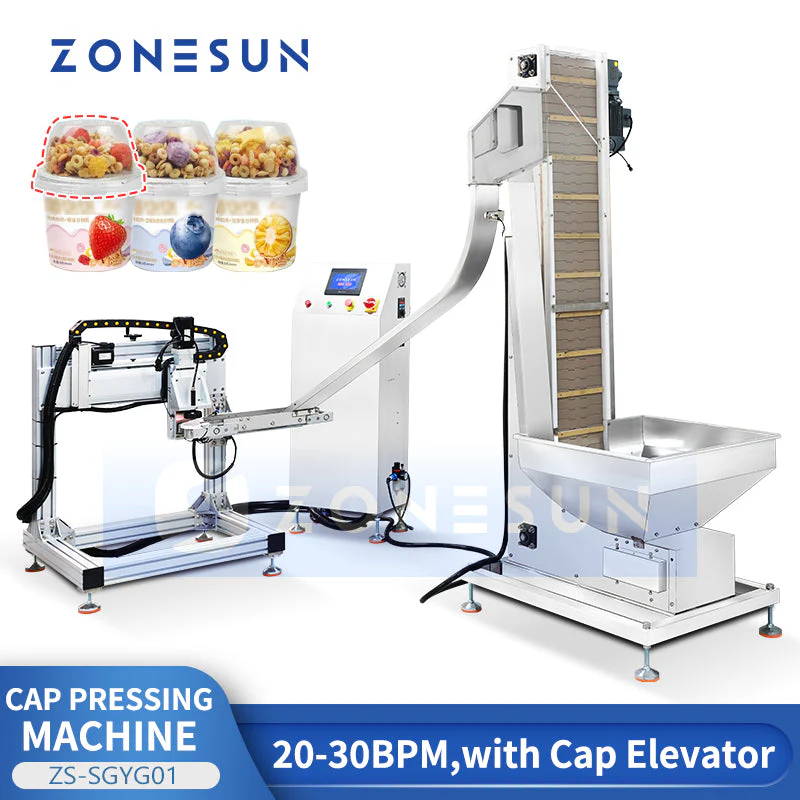

ZONESUN ZS-SGYG01 Automatic Cup Lid Pressing Machine with Cap Elevator Yogurt Cup Pressing Machine
DESCRIPTION

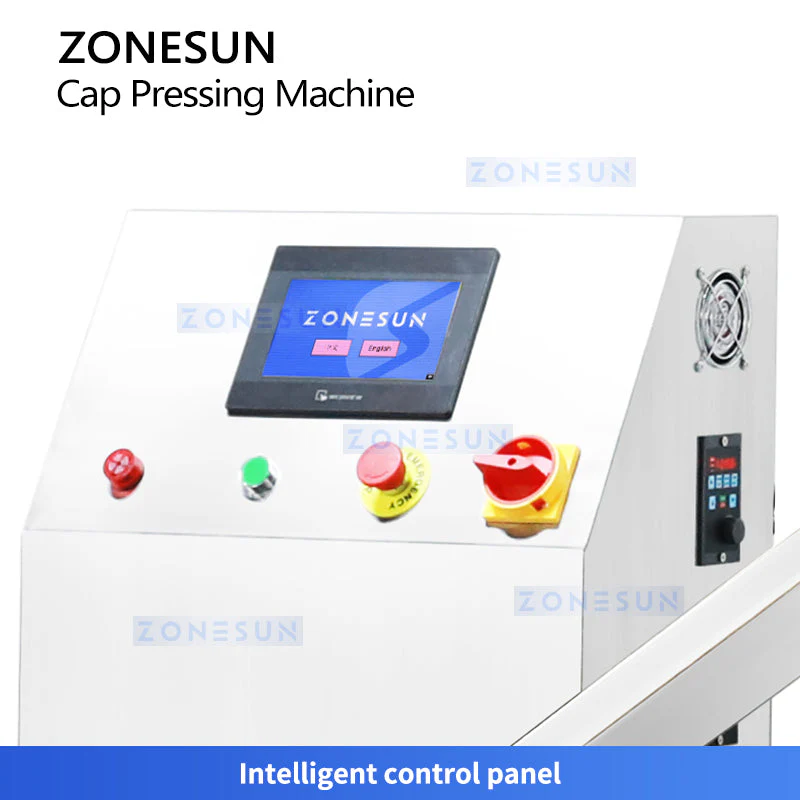

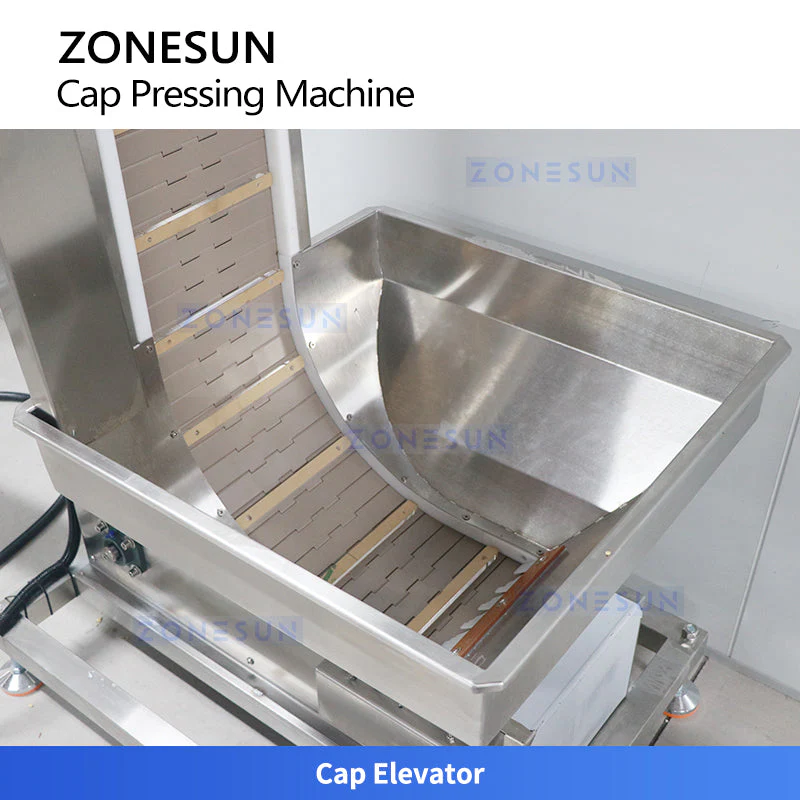

Upgrade your cup packaging line with the ZONESUN Automatic Cup Lid Pressing Machine — designed for efficiently placing and pressing plastic lids onto yogurt, ice cream, and sundae cups. Equipped with a smart cap elevator and PLC touchscreen control, this machine ensures high-speed and precise capping while supporting a wide range of lid sizes.
Parameters
- Model: ZS-SGYG01
- Machine Voltage: 110/220V, 50–60Hz, 500W
- Suitable Bottle Height: Customizable
- Suitable Bottle Cap Diameter: Customizable
- Working Speed: 20–30 BPM (depends on bottles and caps)
- Working Pressure: 0.5 MPa
- Machine Size: Approx. 1750 × 2600 × 2170 mm (L × W × H, total)
- Package Size: – Cap Elevator: Approx. 2220 × 960 × 1210 mm – Capping Structure: Approx. 1330 × 1090 × 1410 mm
- Package Weight: – Cap Elevator: Approx. 180 kg – Capping Structure: Approx. 175 kg
