ZONESUN ZS-TB300N Autoamtic Round Square Bottle Double Side Labeling Machine
DESCRIPTION
This is an automatic tabletop labeling machine. It is applicable to both flat and round bottles. Also, it can apply one or two label on the containers. Compared with others, it is small in size, so it is easier to move it and make it fit for any space.
Parameter
- Machine Model: ZS-TB300N
- Voltage: 110V 60Hz / 220V 50Hz
- Power: 1.5 kW
- Working Speed: About 30–100 bottles/min
- Label Width: ≤150 mm (Customizable)
- Roll Inside Diameter: Ø76 mm
- Roll Outside Diameter: Ø250 mm
- Suitable Bottle Diameter: ≤Ø100 mm, Height ≤350 mm
- Conveyor Size: About 2010 × 100 mm
- Machine Size (L×H×W): About 2000 × 1400 × 1300 mm
- Machine Weight: About 208 kg
Touch Screen Controller
Controls and coordinates all machine work, allowing operators to easily set parameters, monitor status, and troubleshoot through an intuitive touchscreen interface
Control Panel
It operates three core functions: bottle separation, upper belt adjustment, and label application. It ensures consistent spacing, stable container movement, and precise label attachment for a wide range of products. The newly optimized button layout is more centralized, streamlining user interaction and improving operational efficiency.
Autoamtic Labeling feeding
This module automatically feeds bottles into the labeling area at the beginning of the labeling process. It works in coordination with conveyor systems and sensors to ensure that bottles enter the labeling zone with correct spacing, orientation, and speed—preventing overlap, collision, or misalignment.

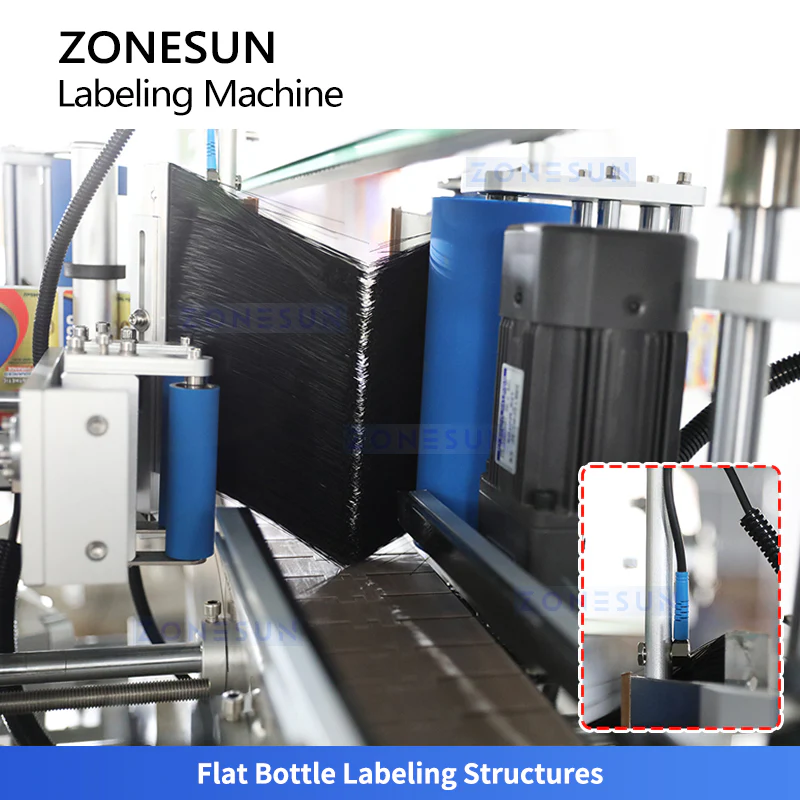

Flat bottle Labeling

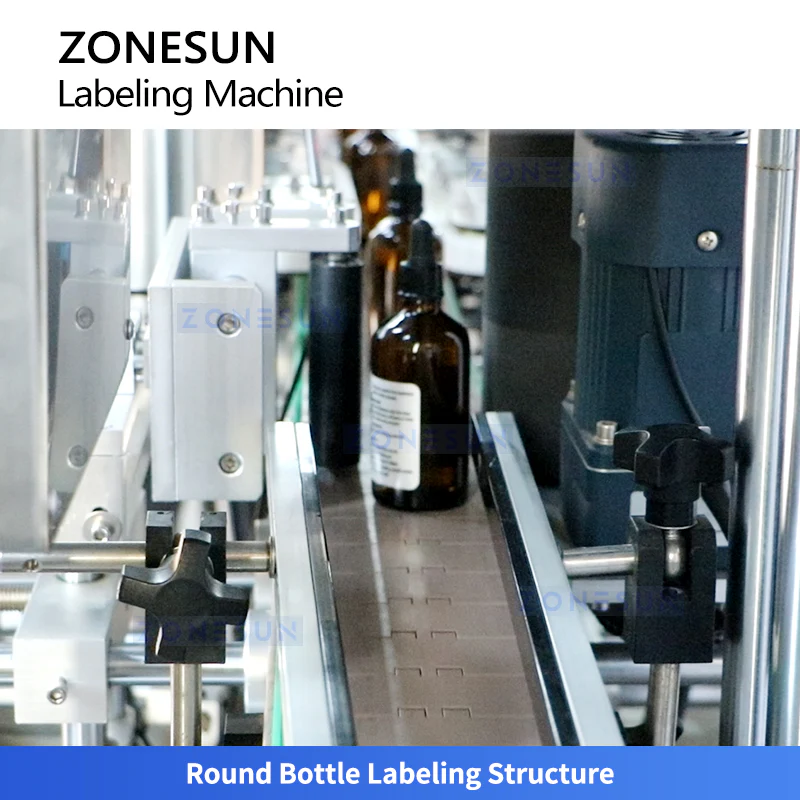

Round Bottle Label
Suitable for single-side,dual side, or full wrap label of round bottles. The 3-roller system ensures smooth rotation and accurate label application.

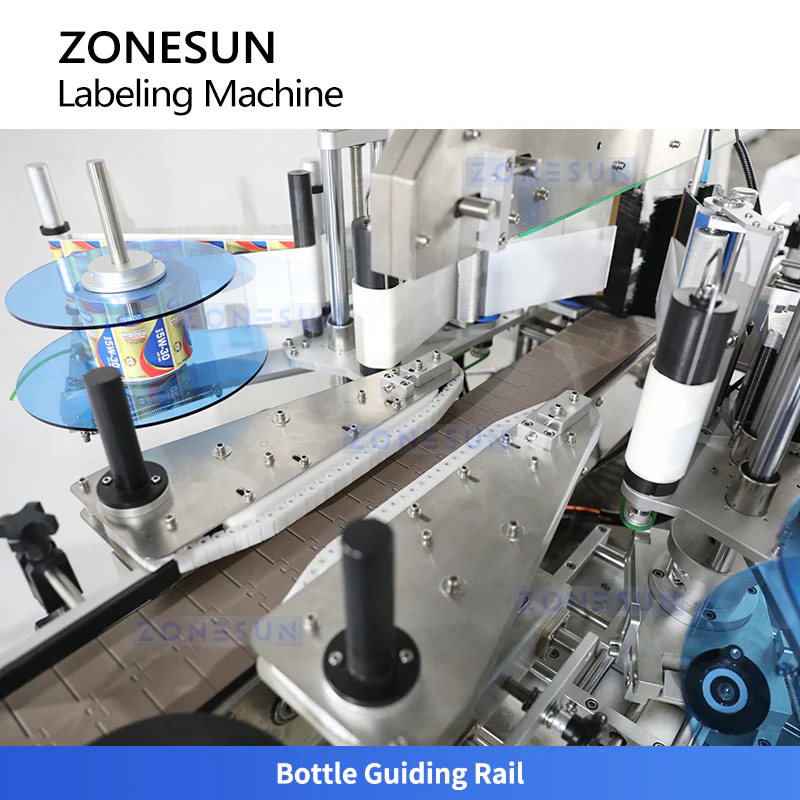

Bottle Guiding Rail
Ensures bottles remain properly aligned during transport, working in tandem with the conveyor, sensors, and labeling head. Some guide rails feature friction layers that support precise label application and enhance overall labeling quality.
3D Adjustable Labeling Shaft
This 3D adjustable labeling shaft serves as a precise positioning mechanism for the labeling head, allowing fine-tuned adjustments in all directions—forward/backward, up/down, and left/right—to ensure smooth label application across various product types with enhanced accuracy and operational efficiency.
DESCRIPTION
This is an automatic tabletop labeling machine. It is applicable to both flat and round bottles. Also, it can apply one or two label on the containers. Compared with others, it is small in size, so it is easier to move it and make it fit for any space.
Parameter
- Machine Model: ZS-TB300N
- Voltage: 110V 60Hz / 220V 50Hz
- Power: 1.5 kW
- Working Speed: About 30–100 bottles/min
- Label Width: ≤150 mm (Customizable)
- Roll Inside Diameter: Ø76 mm
- Roll Outside Diameter: Ø250 mm
- Suitable Bottle Diameter: ≤Ø100 mm, Height ≤350 mm
- Conveyor Size: About 2010 × 100 mm
- Machine Size (L×H×W): About 2000 × 1400 × 1300 mm
- Machine Weight: About 208 kg
Touch Screen Controller
Controls and coordinates all machine work, allowing operators to easily set parameters, monitor status, and troubleshoot through an intuitive touchscreen interface
Control Panel
It operates three core functions: bottle separation, upper belt adjustment, and label application. It ensures consistent spacing, stable container movement, and precise label attachment for a wide range of products. The newly optimized button layout is more centralized, streamlining user interaction and improving operational efficiency.
Autoamtic Labeling feeding
This module automatically feeds bottles into the labeling area at the beginning of the labeling process. It works in coordination with conveyor systems and sensors to ensure that bottles enter the labeling zone with correct spacing, orientation, and speed—preventing overlap, collision, or misalignment.
Flat bottle Labeling
Round Bottle Label
Suitable for single-side,dual side, or full wrap label of round bottles. The 3-roller system ensures smooth rotation and accurate label application.
Bottle Guiding Rail
Ensures bottles remain properly aligned during transport, working in tandem with the conveyor, sensors, and labeling head. Some guide rails feature friction layers that support precise label application and enhance overall labeling quality.
3D Adjustable Labeling Shaft
This 3D adjustable labeling shaft serves as a precise positioning mechanism for the labeling head, allowing fine-tuned adjustments in all directions—forward/backward, up/down, and left/right—to ensure smooth label application across various product types with enhanced accuracy and operational efficiency.
