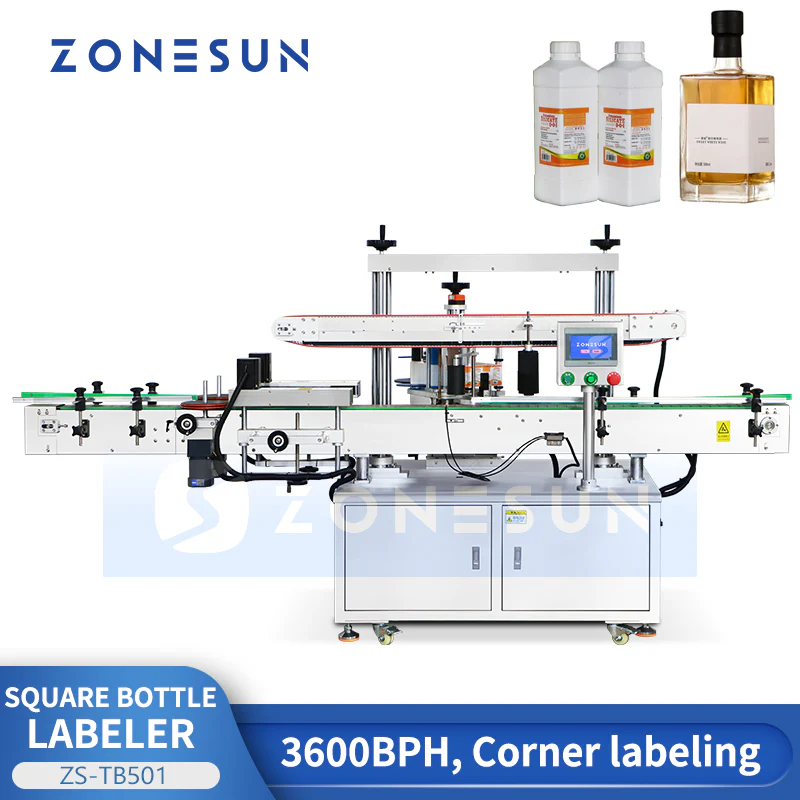

ZONESUN ZS-TB501 Square Bottle Double Corner Labeling Machine
DESCRIPTION
The corner wrap labeling machine is designed for applying self-adhesive labels to two adjacent sides of square bottles—typically the front and side—ensuring a clean, secure, and professional label application. It integrates seamlessly with filling and capping machines to support a fully automated production line.This machine is ideal for labeling square or rectangular bottles used for engine oil, nutritional supplements, olive oil, beverages, perfumes, and other liquid products. Key features include dual-side labeling, optional date coding for batch tracking, and easy integration with existing filling systems, making it an excellent solution for high-speed, high-precision packaging environments.
Parameters
- Model: ZS-TB501
- Voltage: 110V / 220V, 50–60Hz
- Label Width: 20–120 mm
- Label Height: 15–160 mm
-
Suitable Bottle Size:
– Length: 20–100 mm
– Width: 30–100 mm
– Height: 60–280 mm (customizable) -
Standard Roll Diameter:
– Outer: Φ300 mm
– Inner: Φ76 mm - Labeling Accuracy: ±1.0 mm
- Labeling Speed: 20–60 bottles/min
- Machine Dimensions: Approx. 3120 × 1200 × 1650 mm (L × W × H)
- Machine Weight: Approx. 300 kg
- Packaging Dimensions: Approx. 3240 × 1350 × 1740 mm (L × W × H)
- Package Weight: Approx. 601 kg
