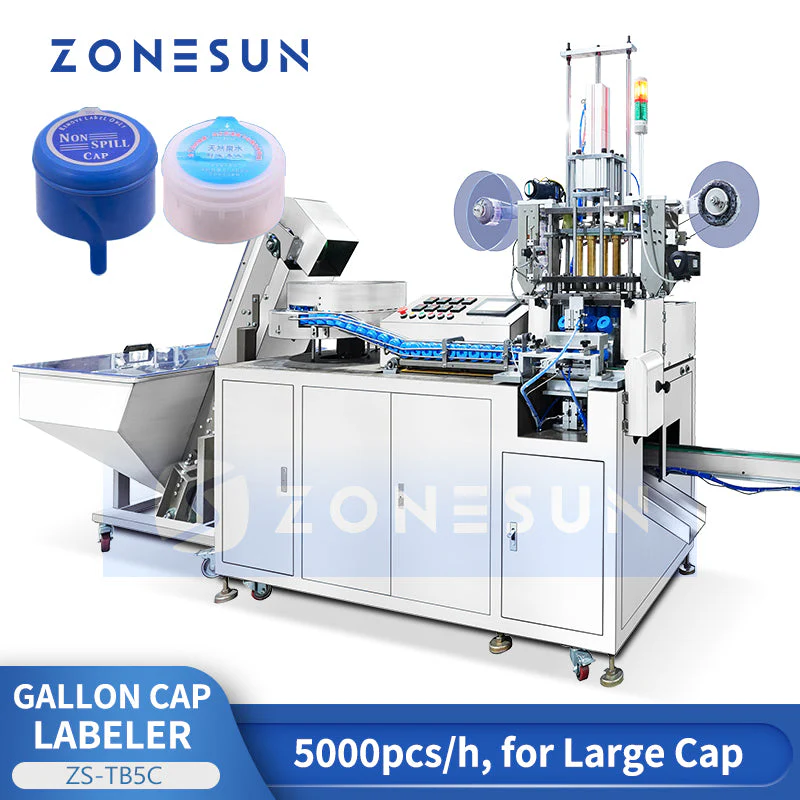

ZONESUN ZS-TB5C Automatic Gallon Bottle Cap Top Labeling Machine For Mineral Water Lids Labeler Solution
DESCRIPTION
This gallon cap labeler is ideal for 3 gallon cap labeler and 5 gallon cap labeler applications. The automatic cap labeler features a cap lifter and vibrating cap feeder for smooth cap feeding. Its cap labeling system ensures high-speed precision. The industrial labeler includes fault detection labeler and a cap labeler with automatic shutdown function, making it smart and reliable intelligent labeling equipment for drinking water bottle labeler needs.
PARAMETER
- Model：ZS-TB5C
- Voltage：AC 380V
- Working voltage：AC 220V and DC 24V
- Working pressure：7.0 kgf/cm2
- Output：About 4200-5000pcs/hour
- Power：About 5kw
- Air supply pressure：7-8kgf/cm2
- Dimensions：3000*1000*1850 mm
- Film：Thick 0.05-0.10 mm,Width 57~63 mm
- Center distance 41 mm

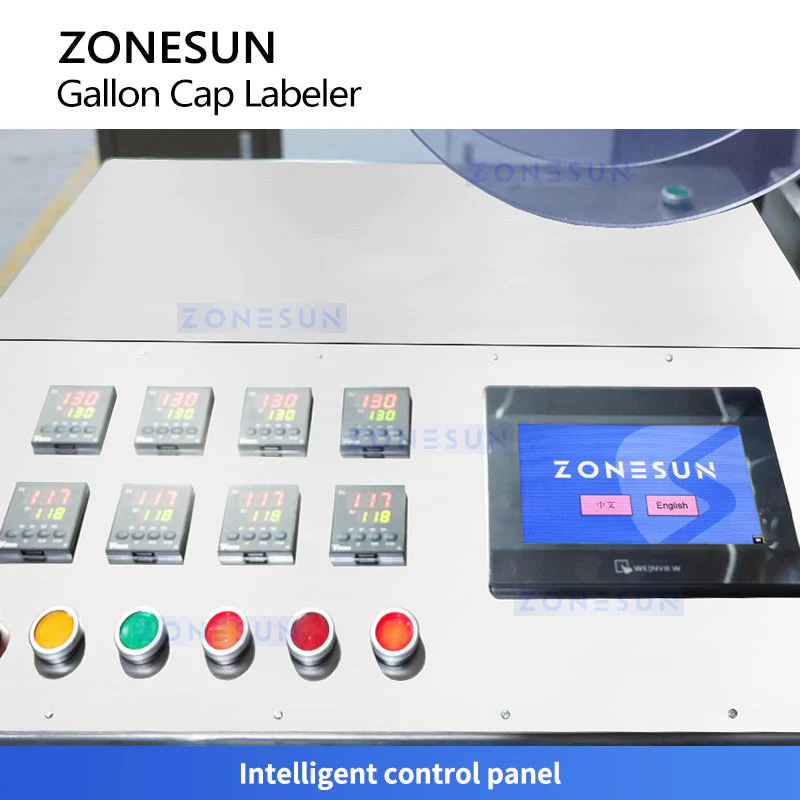

Intelligent control panel
Adopts touch screen interface, which can accurately adjust parameters, monitor in real time and automatically alarm faults.

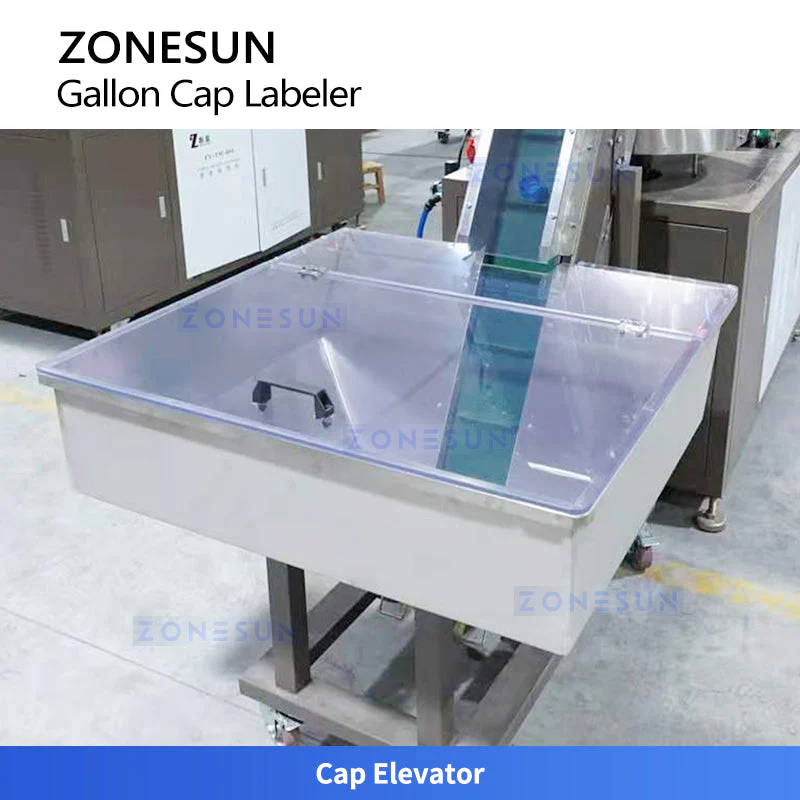

Cap Elevator
Automatically lifts and delivers caps to vibrating feeder.

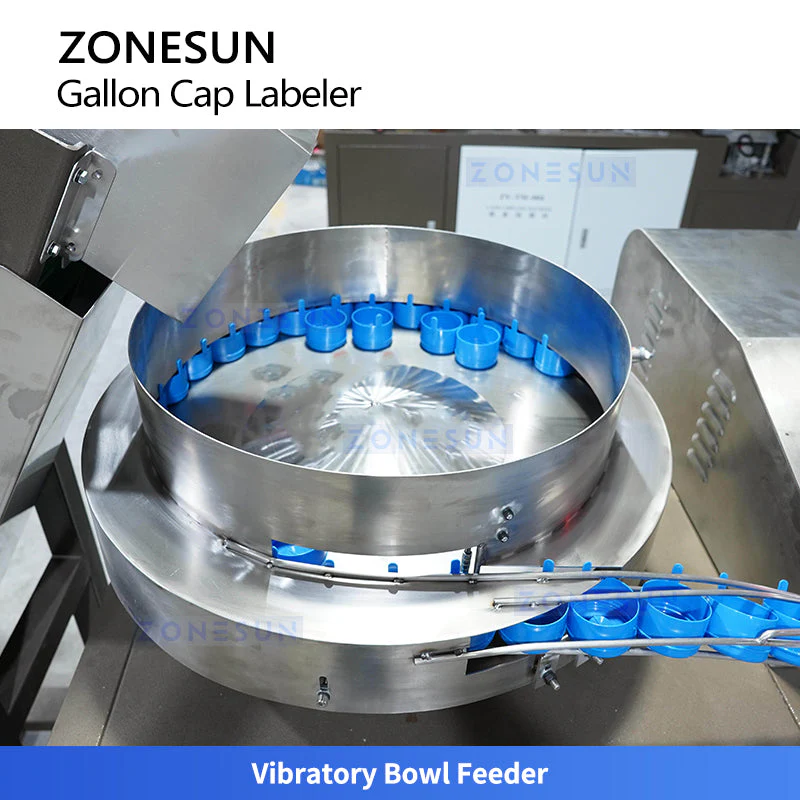

Vibratory Bowl Feeder
Precisely arranges caps so that they can be smoothly and orderly fed into the labeling process, improving labeling accuracy and efficiency.

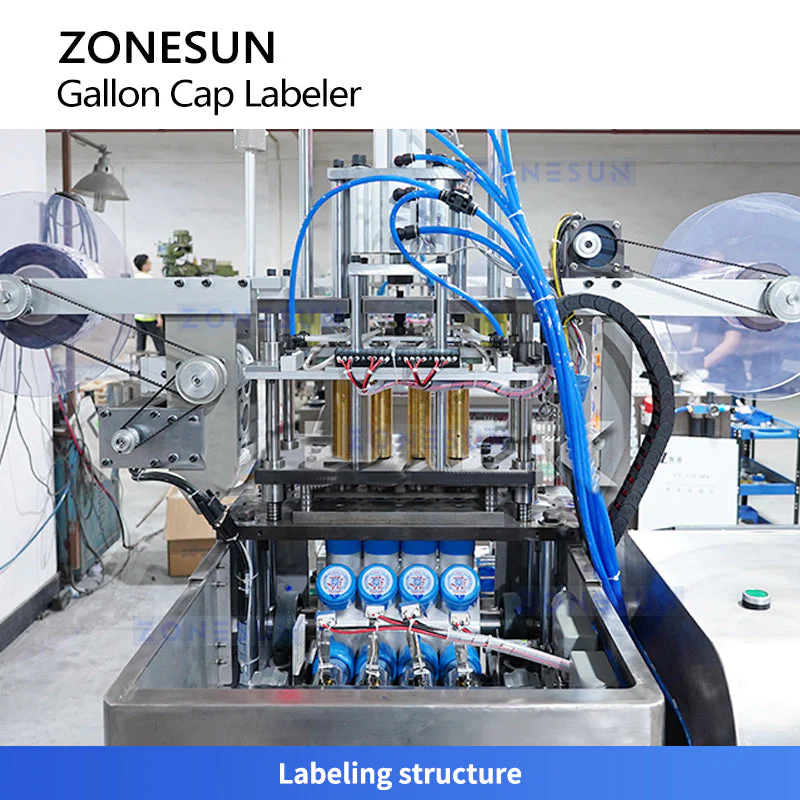

Labeling structure
Equipped with precise positioning system, the label can be firmly and evenly attached to the top of each cap.
Output channel
The labeled caps are collected and conveyed through the output channel.
