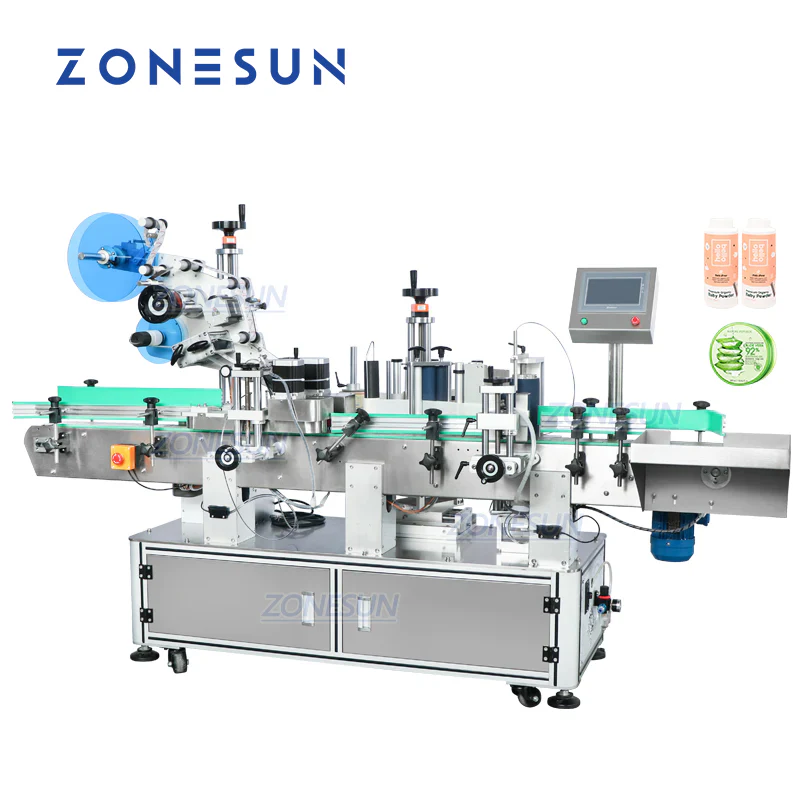

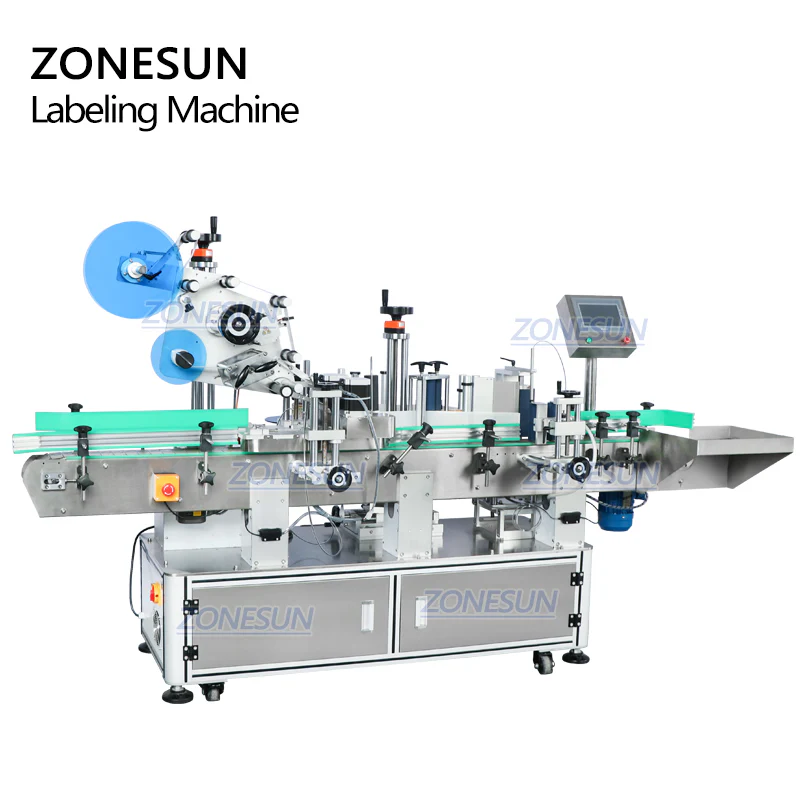

The ZONESUN ZS-TB822D is a high-performance automatic labeling machine designed for both flat bottle caps and round bottles. Featuring dual labeling structures that operate independently, it offers flexible labeling solutions for various packaging formats. With precise ±1.0 mm labeling accuracy and a capacity of 25–45 bottles per minute, it ensures consistent and professional results. The machine supports label sizes up to 285 mm in length and 150 mm in height, with a robust conveyor system for smooth bottle transport. Ideal for cosmetics, beverages, pharmaceuticals, and daily chemical products, this versatile system enhances production efficiency and labeling precision.

Parameter
Model:ZS-TB822D Labeling Machine
Power Supply:AC110V/220V 50Hz/60Hz 5000W
Labeling Capacity(bottles/min):25-45 bottles/min(depends on bottle size)
Labeling Accuracy(mm):±1.0mm
Suitable Bottle Diameter:Φ25-100mm
Label Size(mm):(L)20mm-285mm* (H)20-150mm
Roll inside Diameter(mm):Φ76mm
Roll outside Diameter(mm):Φ280mm
Conveyor Size:100*2380mm(W)
Machine Size:About 2550*1080*1590mm
Package Size:About 2550*1140*1685mm
Net Weight/Gross Weight:About 378kg/523kg

Design with touch screen control panel,it is more convenient to adjust machine parameter.We can customize the control panel in different kinds of languages,if you need this please contact us.

The bottle separating wheel is used to separate bottles during working,makes the production can be in order,reduce production error and improve working efficiency.

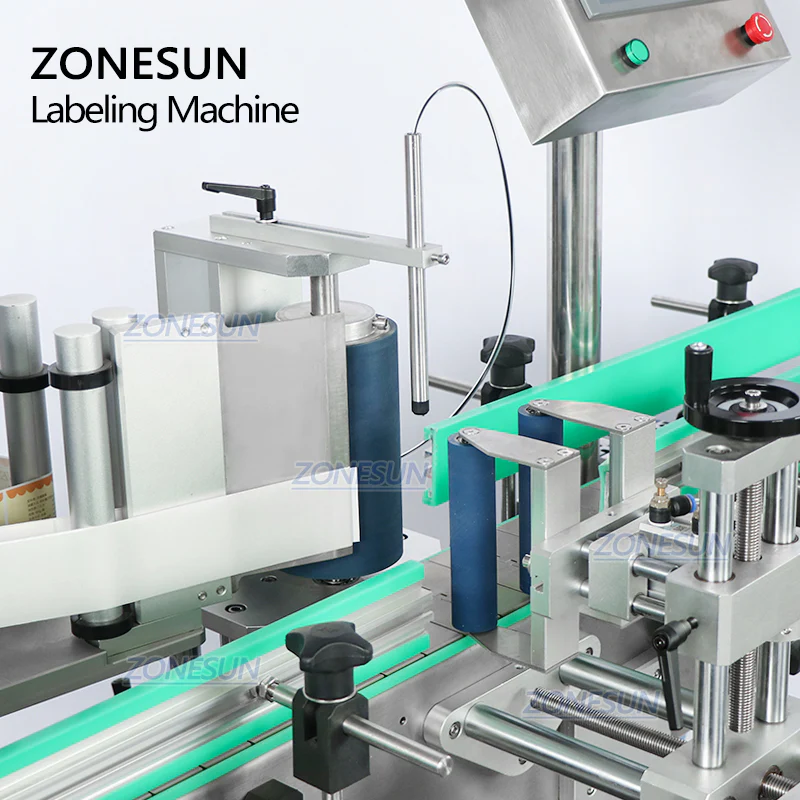

With two kinds of labeling head,this machine can be used to labeling sticker on flat surface and wrapping around bottles.The electric eyes can be used to detecting objects,improves labeling accuracy.

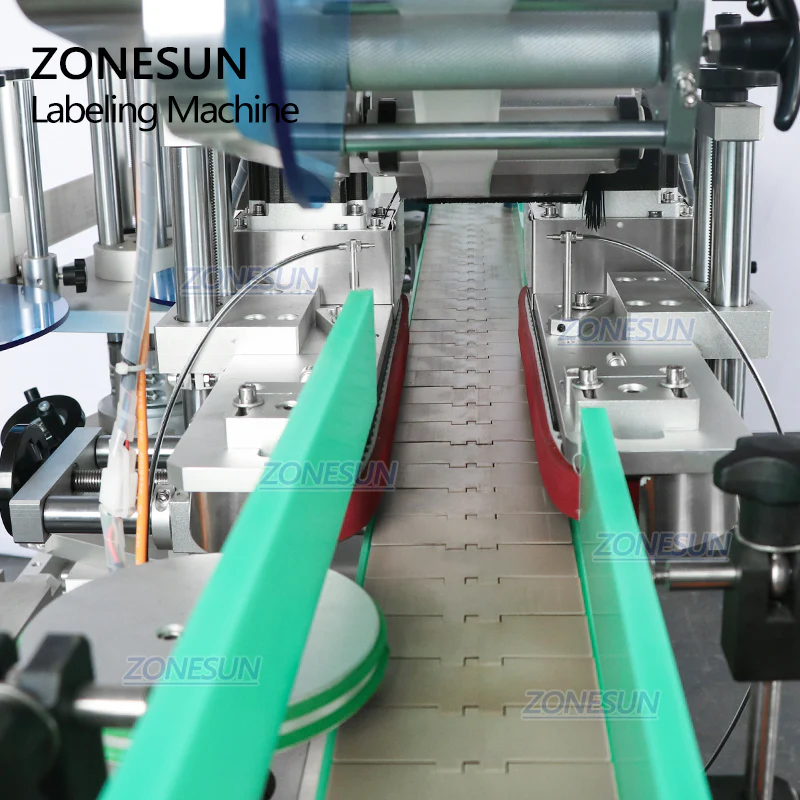

The chain conveyor belt is with larger loading capacity,it can help to transport bottles.The guard railing can be adjusted according to bottles diameter,makes sure the bottle can be conveyed smoothly.

The machine is designed with collecting plate to collect finished products,this prevent that bottles fall from conveyor belt and give more time to operator to collect finished products.
