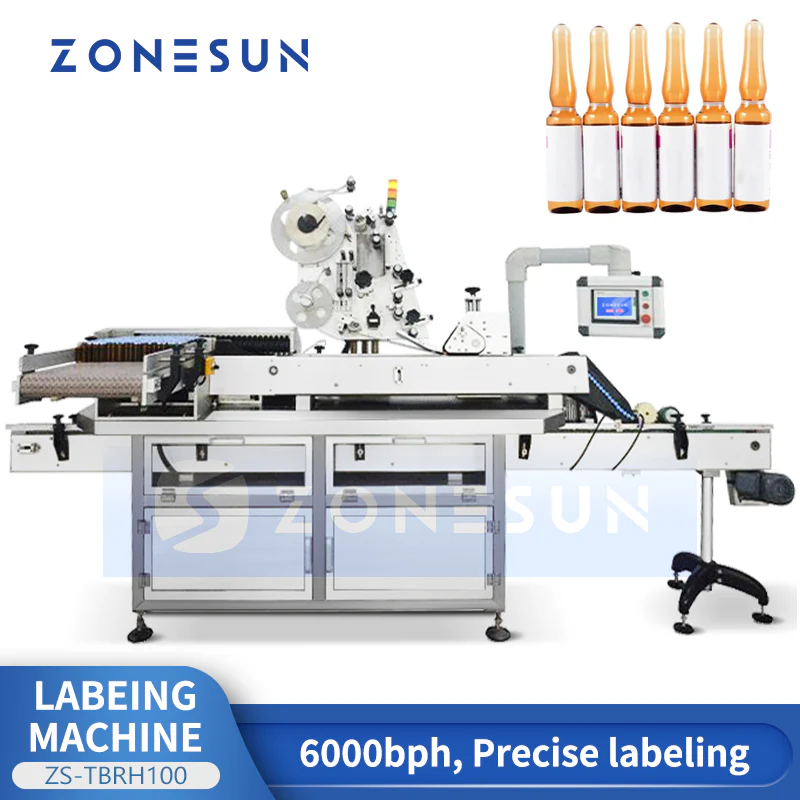

ZONESUN ZS-TBRH100 Horizontal Tube Labeling Machine for Vials & Cosmetic Bottles

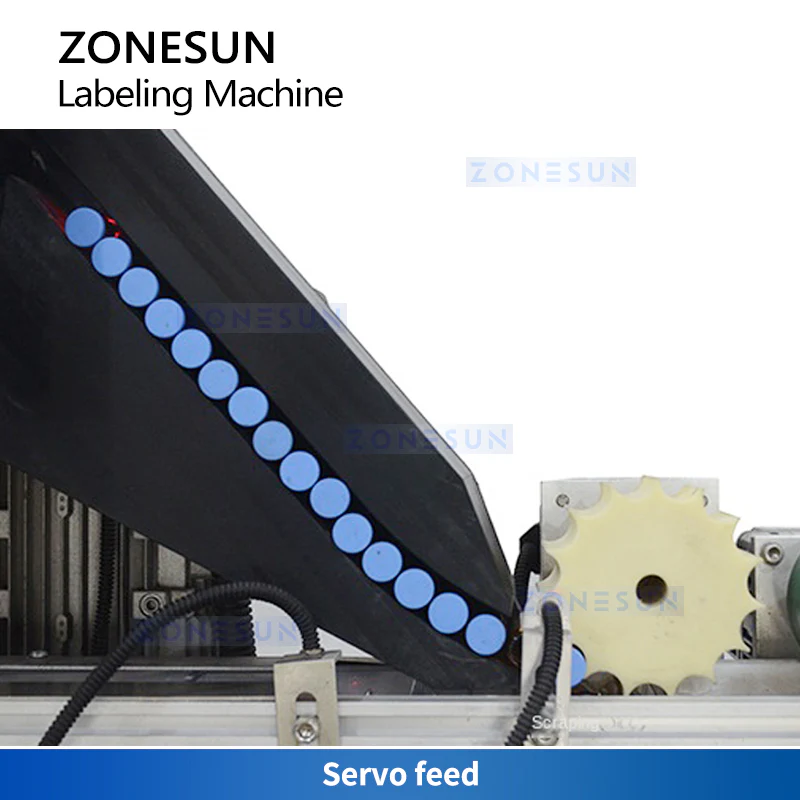

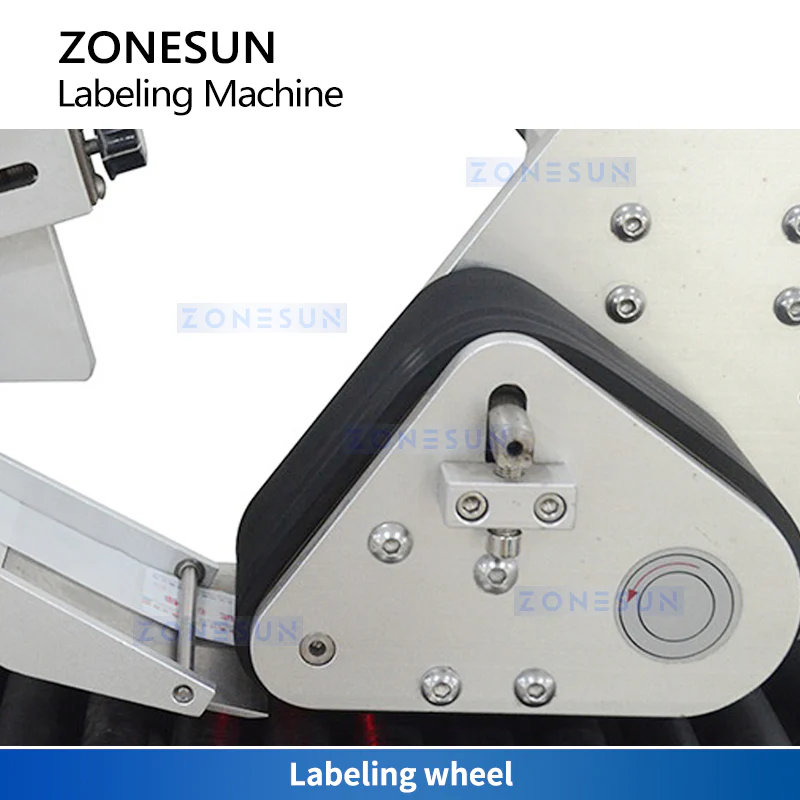

The ZONESUN ZS-TBRH100 Horizontal Round Tube Labeling Machine is engineered for precision labeling of upright bottles and small cylindrical containers. Its innovative infeed mechanism gently inverts bottles and transfers them horizontally onto a roller conveyor for smooth label application. After labeling, a diverting system guides the bottles onto a lower tray conveyor, where a motor-driven starwheel accurately positions them into trays. With a labeling speed of up to 100 bottles per minute and ±1mm accuracy, this machine is ideal for pharmaceutical vials, cosmetic tubes, and lab sample containers.
Parameter
- Model: ZS-TBRH100
- Voltage specification: AC 220V 50/60Hz
- Power consumption: 1.5KW
- Labeling speed: 0–100 bottles/min
- Labeling accuracy: ±1mm (excluding bottle-label mismatch)

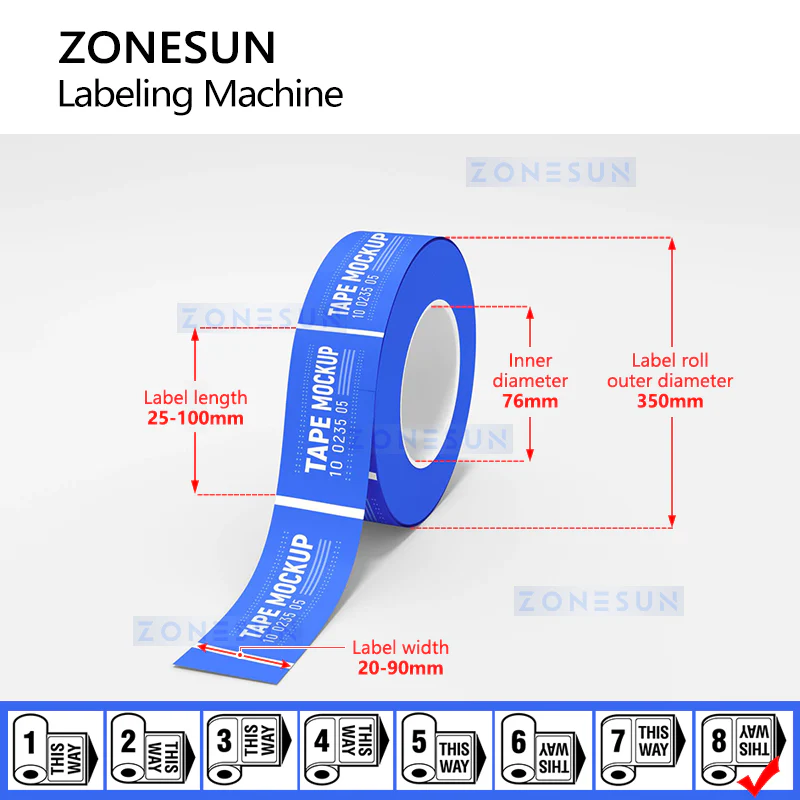

- Label supply: Diameter 350mm, inner diameter of paper roll 76mm
- Printer speed: 0–400 times/min (synchronized with labeling)
- Applicable tags: Height 20–90mm, length 25–100mm
- Applicable containers: Length 25–120mm, diameter 10–30mm
The ZONESUN ZS-TBRH100 Horizontal Round Tube Labeling Machine is engineered for precision labeling of upright bottles and small cylindrical containers. Its innovative infeed mechanism gently inverts bottles and transfers them horizontally onto a roller conveyor for smooth label application. After labeling, a diverting system guides the bottles onto a lower tray conveyor, where a motor-driven starwheel accurately positions them into trays. With a labeling speed of up to 100 bottles per minute and ±1mm accuracy, this machine is ideal for pharmaceutical vials, cosmetic tubes, and lab sample containers.
Parameter
- Model: ZS-TBRH100
- Voltage specification: AC 220V 50/60Hz
- Power consumption: 1.5KW
- Labeling speed: 0–100 bottles/min
- Labeling accuracy: ±1mm (excluding bottle-label mismatch)
- Label supply: Diameter 350mm, inner diameter of paper roll 76mm
- Printer speed: 0–400 times/min (synchronized with labeling)
- Applicable tags: Height 20–90mm, length 25–100mm
- Applicable containers: Length 25–120mm, diameter 10–30mm
Description
The ZONESUN ZS-TBRH100 Horizontal Round Tube Labeling Machine is engineered for precision labeling of upright bottles and small cylindrical containers. Its innovative infeed mechanism gently inverts bottles and transfers them horizontally onto a roller conveyor for smooth label application. After labeling, a diverting system guides the bottles onto a lower tray conveyor, where a motor-driven starwheel accurately positions them into trays. With a labeling speed of up to 100 bottles per minute and ±1mm accuracy, this machine is ideal for pharmaceutical vials, cosmetic tubes, and lab sample containers.
Parameter
- Model: ZS-TBRH100
- Voltage specification: AC 220V 50/60Hz
- Power consumption: 1.5KW
- Labeling speed: 0–100 bottles/min
- Labeling accuracy: ±1mm (excluding bottle-label mismatch)
- Label supply: Diameter 350mm, inner diameter of paper roll 76mm
- Printer speed: 0–400 times/min (synchronized with labeling)
- Applicable tags: Height 20–90mm, length 25–100mm
- Applicable containers: Length 25–120mm, diameter 10–30mm
