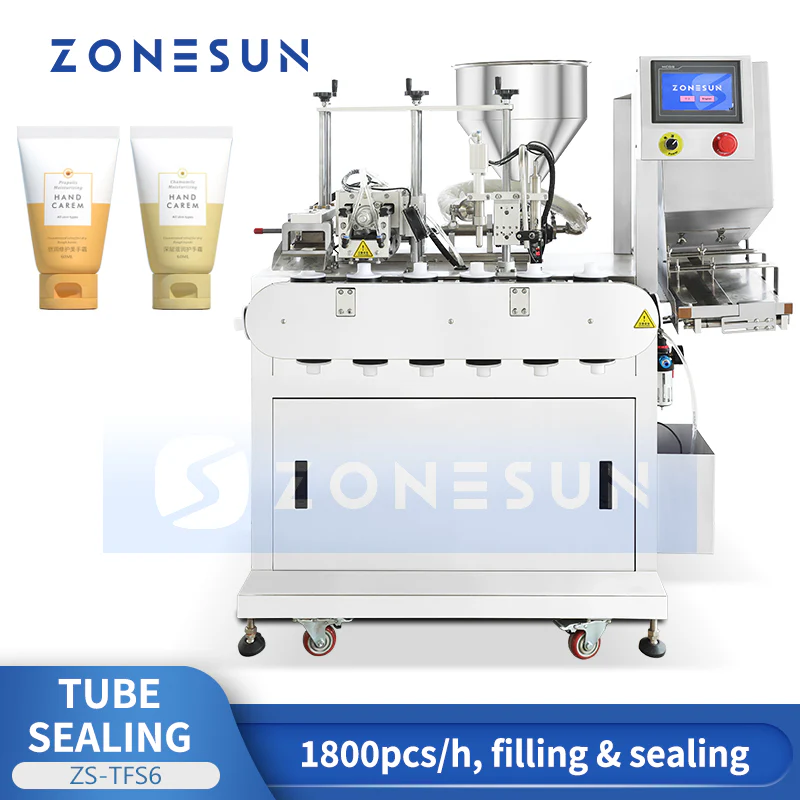

ZONESUN ZS-TFS6 Ultrasonic Tube Filling and Sealing Machine
DESCRIPTION
Introducing our state-of-the-art Ultrasonic Tube Filling and Sealing Machine, designed for the cosmetics, adhesives, shoe polish, and food industries. This advanced machine features six workstations powered by a servo motor, enabling intermittent motion of a circular chain. The 14 fixtures on the chain perform equidistant movements, ensuring efficient automatic filling, sealing, coding, edge trimming, and product ejection. With its smooth and reliable operation, this machine is the perfect solution for high-quality packaging needs across various sectors.
PARAMETER
- Model: ZS-TFS6
- Hose material: Composite tube, plastic tube
- Hose diameter: Φ16mm-Φ50mm
- Hose length: 50mm-250mm (customizable)
- Filling capacity: 20ml-300ml/piece (adjustable)
- Filling accuracy: ±1%
- Benchmarking method: Servo benchmarking
- Filling method: Pneumatic piston filling
- Sealing method: Ultrasonic welding
- Production capacity: 20-30 pieces/minute
- Compressed air: 0.5-0.8mpa
- Power: 4.5kw (220V 50Hz)
- Ultrasonic power: 2.6kw
- Dimensions: LWH:120×80×150cm
- Main unit weight: About 220kg

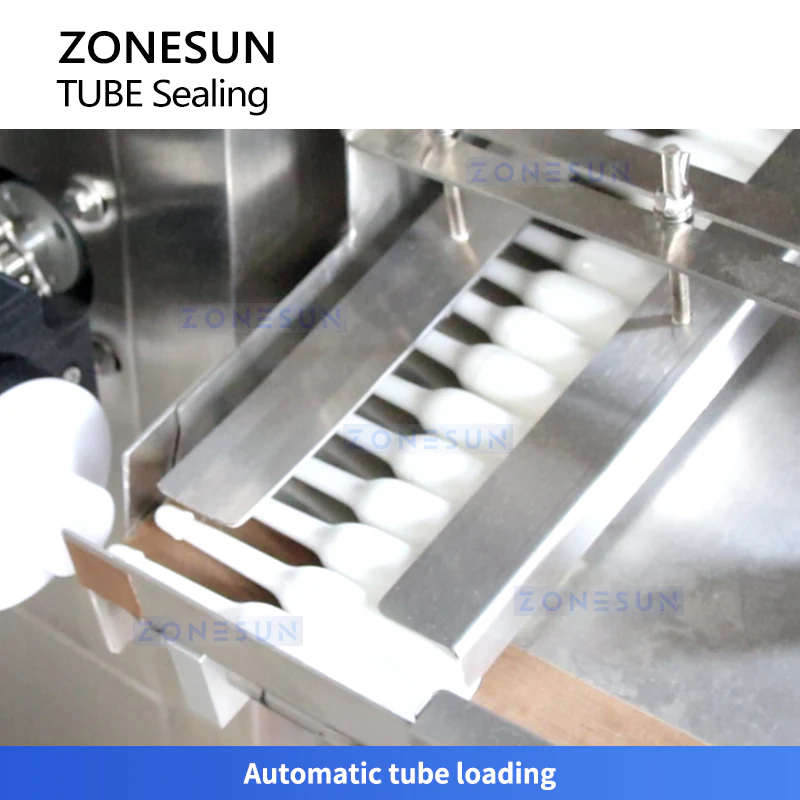

Tube Loading

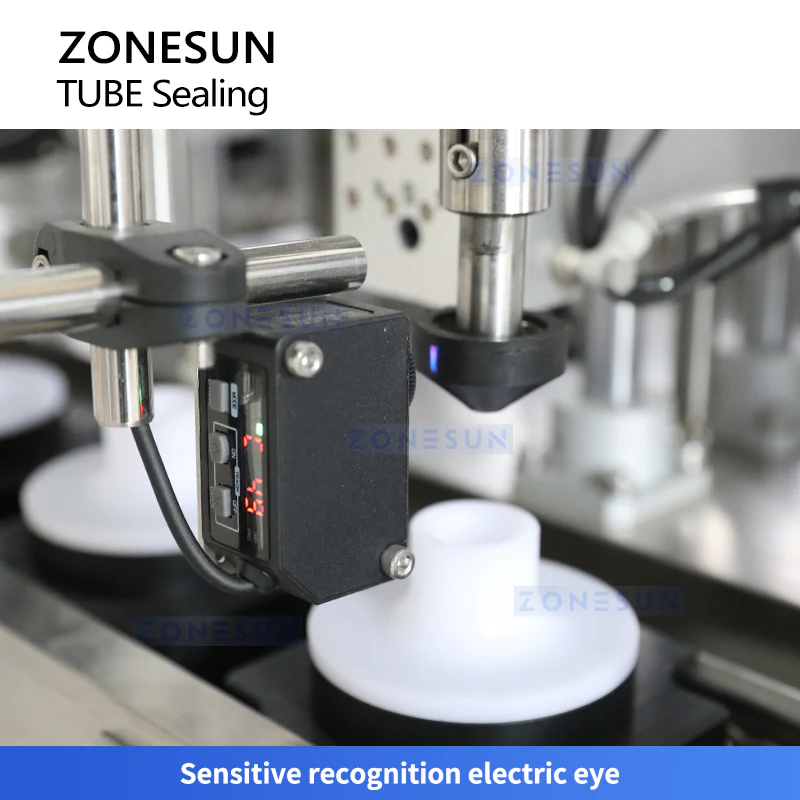

Electric Eye

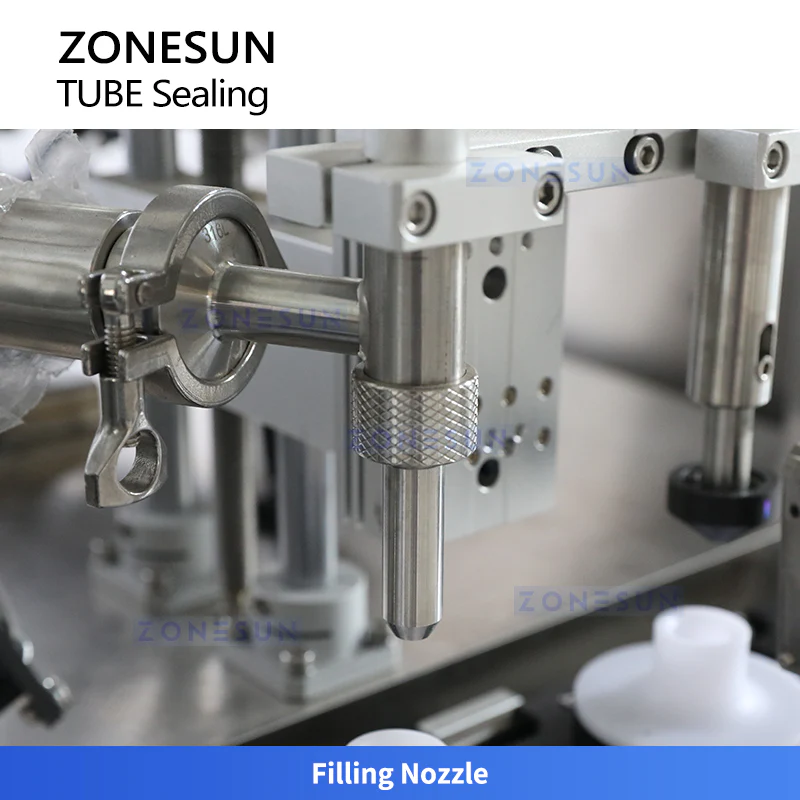

Filling Nozzle

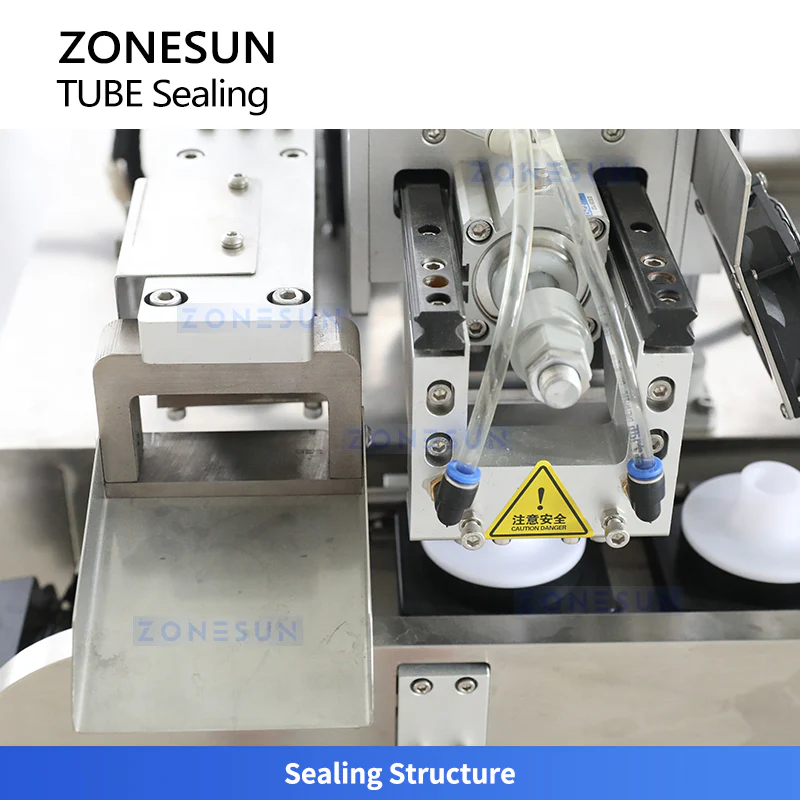

Sealing Structure
