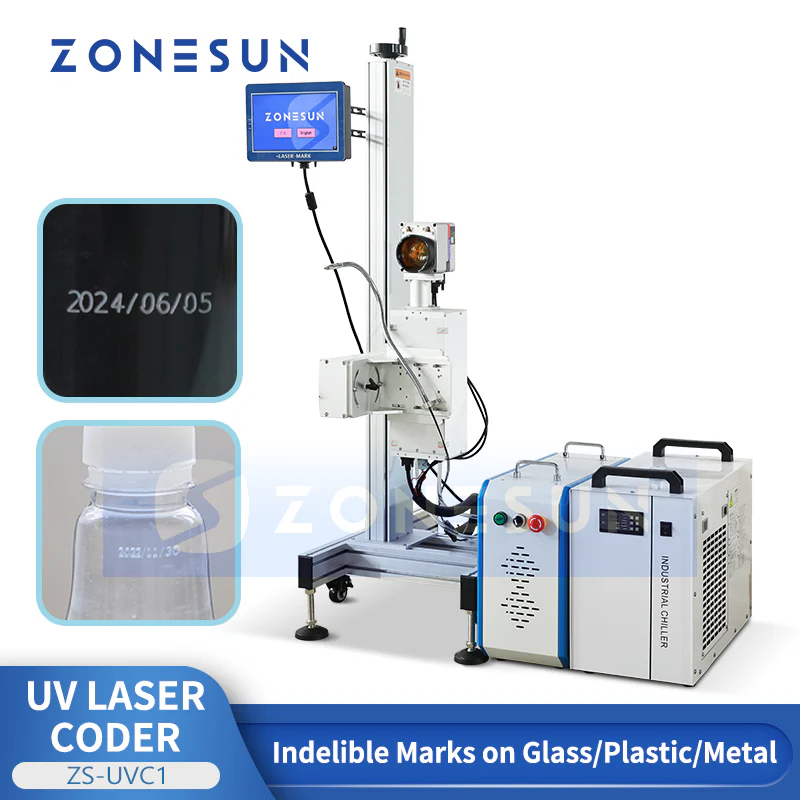

ZS-UVC1 is a cutting-edge UV laser coding machine designed for high-precision, non-contact marking across a wide range of materials. It delivers crisp, permanent codes, logos, and text without the need for ink or chemicals, making it an eco-friendly solution for industrial marking. With a high-speed output, water cooling system, and multi-language interface, it’s ideal for packaging lines in electronics, cosmetics, food, and medical industries.

Parameter

• Model: ZS-UVC1
• Output power: 3W / 5W / 10W
• Machine power: 800W
• Laser wavelength: 355nm

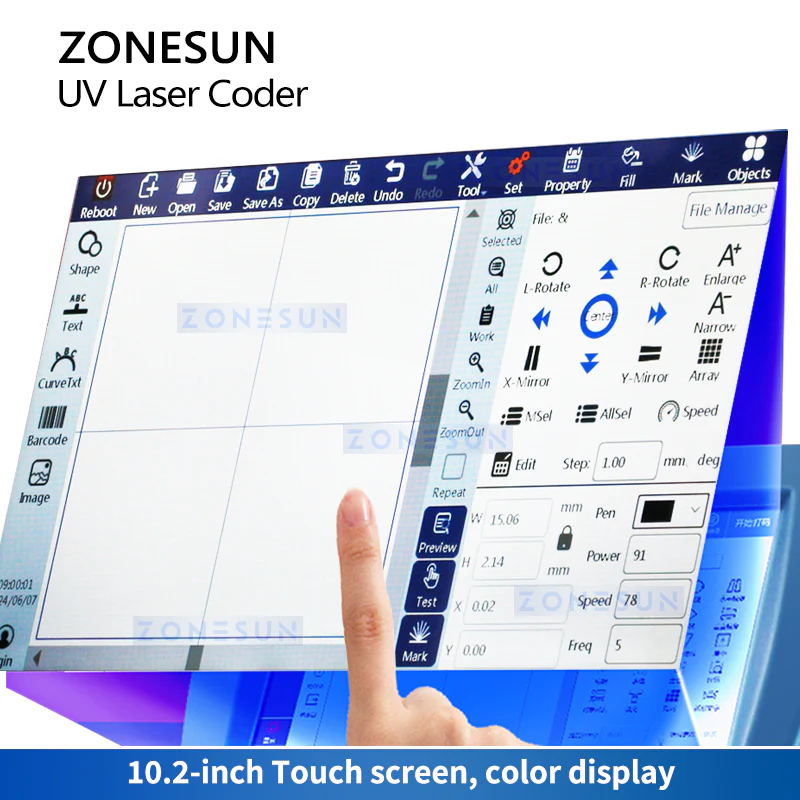

• Control system: 10.2-inch touch screen (Linux system)
• Production speed: 0–130m/min (depends on material)
• Minimum line width: 0.0012mm
• Marking range: 110×110mm (optional)
• Marking speed:
• ≥1200mm/s
• PVC tubes: 40m/min
• PET bottles: 20,000 bottles/h
• Coated cartons: 35m/min
• Cooling method: Water cooling
• Multi-language support: English, French, Spanish, German, Chinese, Russian, Korean, Arabic, etc. (expandable)
• Suitable materials: Glass, metal, plastic, wood, leather, acrylic, nano, cloth, ceramic, purple sand, coated film (actual testing required)
• Package size:
• Lens: Approx. 630×430×210mm
• Industrial chiller: Approx. 680×410×560mm
• Power supply host: Approx. 670×410×560mm
• Package weight:
• Lens: Approx. 13kg
• Industrial chiller: Approx. 24kg
• Power supply host: Approx. 13kg
