Zonesun ZS-VGPJ1 Pneumatic Paste Hydraulic Press Filling Machine
Description

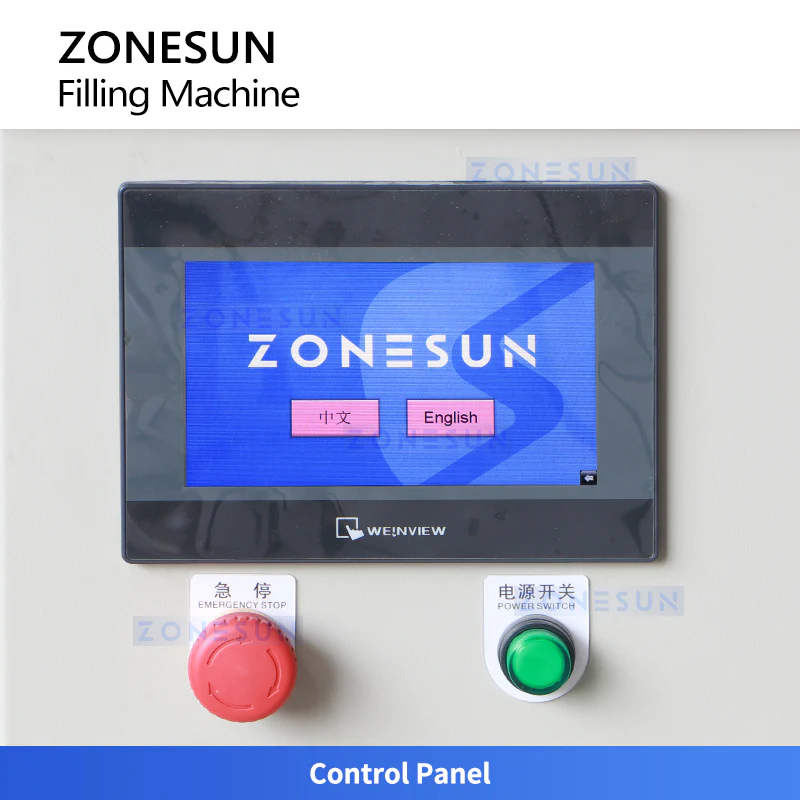

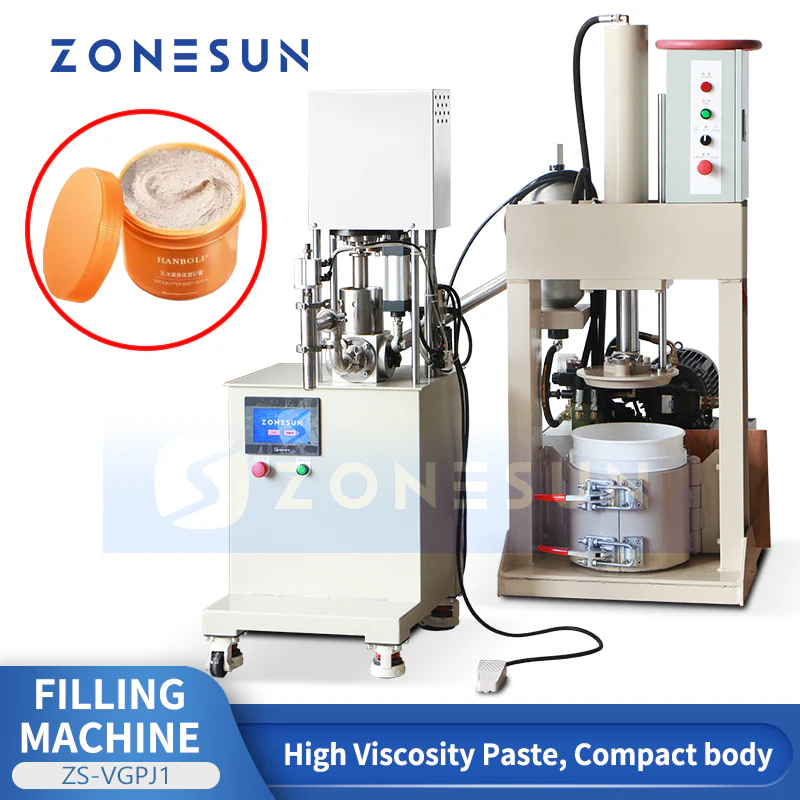

This semi-automatic filling machine is ideal for high-viscosity materials like abrasive pastes, grease, and gels. It features a PLC controller and touchscreen interface for precise control and easy operation. The volumetric metering cylinder and servo motor ensure accurate filling, while the hydraulic system efficiently handles viscous materials. This versatile machine is widely used in the chemical, pharmaceutical, and food industries.

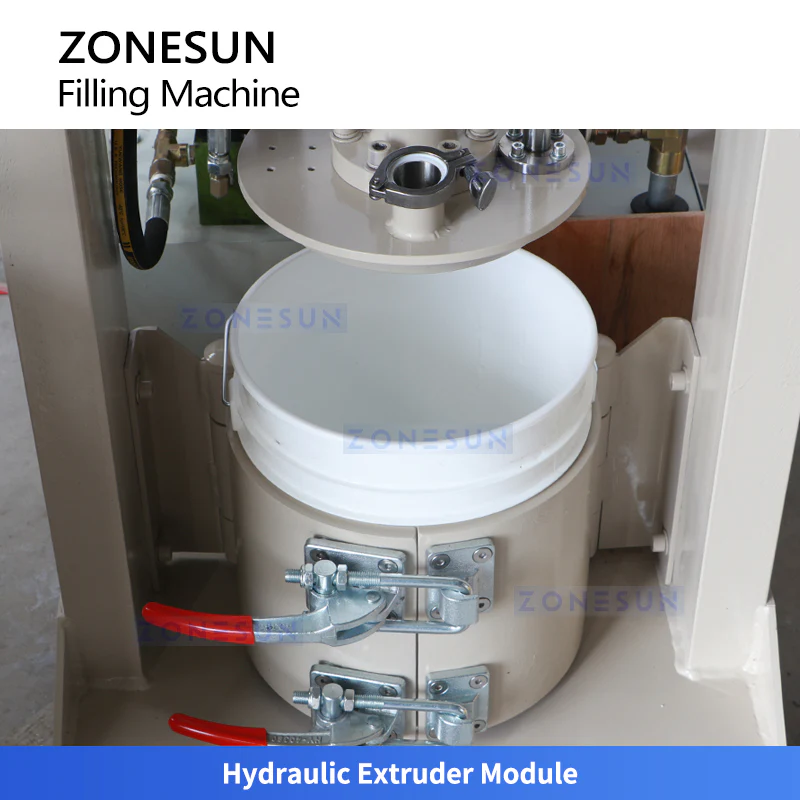

Automatic Pressure Adjustment: The hydraulic press automatically adjusts pressure based on the material's viscosity and filling requirements. When activated, the press applies downward force until internal pressure reaches equilibrium, ensuring consistent and controlled filling. Continuous material flow triggers further downward pressure adjustments, maintaining optimal filling conditions.
Parameter - ZS-VGT1
Power Supply：220V/50HZ
Air Supply：0.5–0.8 MPa
Air Consume：<0.3 m³/min
Filling Volume：Max 350 ml (Customizable)
Volume Precision：≤±0.5%
Working Speed：15–45 pcs/min
Bottle Diameters：φ30–50 mm (Customizable)
Machine Size：650 × 600 × 1400 mm (L×W×H)
Machine Weight：150 kg
Parameter - ZS-PJ15T
Power Supply：380V/220V
Extruding Pressure：15T (45T/60T available)
Material Tank Size：20L (φ284 mm × H880 mm)
Discharging Outlet Size：DN38
Oil Tank Capacity：40L
Machine Size：About 800 × 600 × 1380 mm (L×W×H)
Machine Weight：About 360 kg
Package Size：About 950 × 720 × 1640 mm
Package Weight：About 410 kg
Description
This semi-automatic filling machine is ideal for high-viscosity materials like abrasive pastes, grease, and gels. It features a PLC controller and touchscreen interface for precise control and easy operation. The volumetric metering cylinder and servo motor ensure accurate filling, while the hydraulic system efficiently handles viscous materials. This versatile machine is widely used in the chemical, pharmaceutical, and food industries.
Automatic Pressure Adjustment: The hydraulic press automatically adjusts pressure based on the material's viscosity and filling requirements. When activated, the press applies downward force until internal pressure reaches equilibrium, ensuring consistent and controlled filling. Continuous material flow triggers further downward pressure adjustments, maintaining optimal filling conditions.
Parameter - ZS-VGT1
Power Supply：220V/50HZ
Air Supply：0.5–0.8 MPa
Air Consume：<0.3 m³/min
Filling Volume：Max 350 ml (Customizable)
Volume Precision：≤±0.5%
Working Speed：15–45 pcs/min
Bottle Diameters：φ30–50 mm (Customizable)
Machine Size：650 × 600 × 1400 mm (L×W×H)
Machine Weight：150 kg
Parameter - ZS-PJ15T
Power Supply：380V/220V
Extruding Pressure：15T (45T/60T available)
Material Tank Size：20L (φ284 mm × H880 mm)
Discharging Outlet Size：DN38
Oil Tank Capacity：40L
Machine Size：About 800 × 600 × 1380 mm (L×W×H)
Machine Weight：About 360 kg
Package Size：About 950 × 720 × 1640 mm
Package Weight：About 410 kg
Original: $22,550.00
-70%$22,550.00
$6,765.00Description
