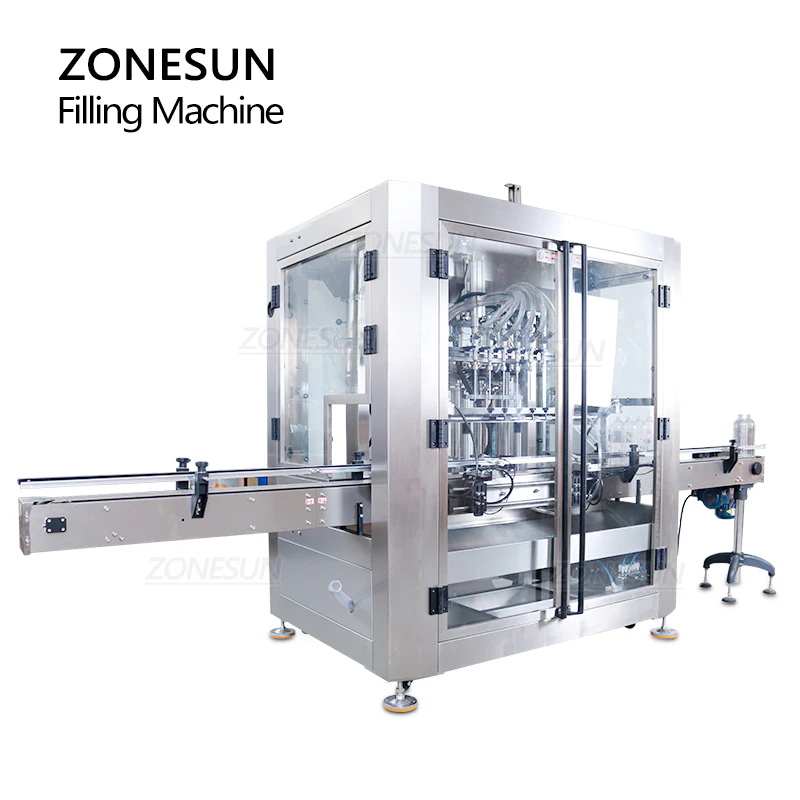

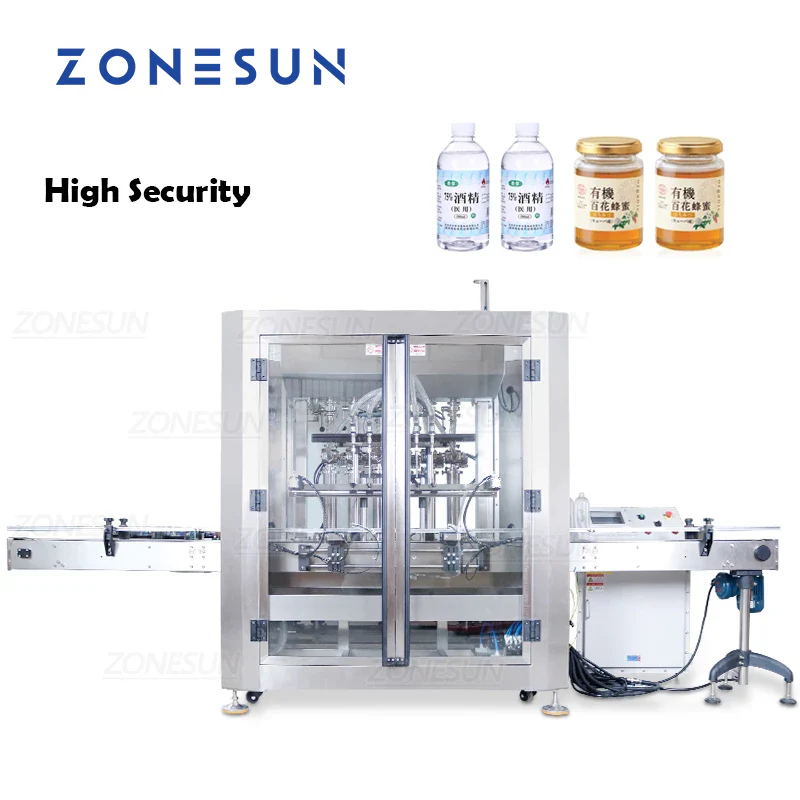

ZONESUN ZS-VTFM1 Explosion-Proof 6-Head Liquid Paste Filling Machine
The ZS-VTFM1 is an explosion-proof automatic filling machine designed for flammable liquids and viscous products such as alcohol, kerosene, honey, and chocolate. It also handles beverages, perfumes, and shampoos with ease. Featuring a separate control box for enhanced safety, this machine offers volume-based filling without time setting, making operation simple and efficient. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.
Parameter Specification
Machine Model ZS-VTFM1
Machine Power 3KW
Filling Range 100–1000ml (can be customized)
Working Speed 20–40 bottles/min (based on 500ml)
Filling Accuracy ±1%
Air Pressure 0.8 MPa
Conveyor Size (L×W) 1140×100mm
Filling Nozzle Diameter OD 8mm
Package Size 2140×2110×1250mm (machine)
950×630×1200mm (electric control box)
Package Weight About 550kg (machine) + 100kg (electric control box)
The ZS-VTFM1 is an explosion-proof automatic filling machine designed for flammable liquids and viscous products such as alcohol, kerosene, honey, and chocolate. It also handles beverages, perfumes, and shampoos with ease. Featuring a separate control box for enhanced safety, this machine offers volume-based filling without time setting, making operation simple and efficient. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.
Parameter Specification
Machine Model ZS-VTFM1
Machine Power 3KW
Filling Range 100–1000ml (can be customized)
Working Speed 20–40 bottles/min (based on 500ml)
Filling Accuracy ±1%
Air Pressure 0.8 MPa
Conveyor Size (L×W) 1140×100mm
Filling Nozzle Diameter OD 8mm
Package Size 2140×2110×1250mm (machine)
950×630×1200mm (electric control box)
Package Weight About 550kg (machine) + 100kg (electric control box)
Description
The ZS-VTFM1 is an explosion-proof automatic filling machine designed for flammable liquids and viscous products such as alcohol, kerosene, honey, and chocolate. It also handles beverages, perfumes, and shampoos with ease. Featuring a separate control box for enhanced safety, this machine offers volume-based filling without time setting, making operation simple and efficient. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.
Parameter Specification
Machine Model ZS-VTFM1
Machine Power 3KW
Filling Range 100–1000ml (can be customized)
Working Speed 20–40 bottles/min (based on 500ml)
Filling Accuracy ±1%
Air Pressure 0.8 MPa
Conveyor Size (L×W) 1140×100mm
Filling Nozzle Diameter OD 8mm
Package Size 2140×2110×1250mm (machine)
950×630×1200mm (electric control box)
Package Weight About 550kg (machine) + 100kg (electric control box)
