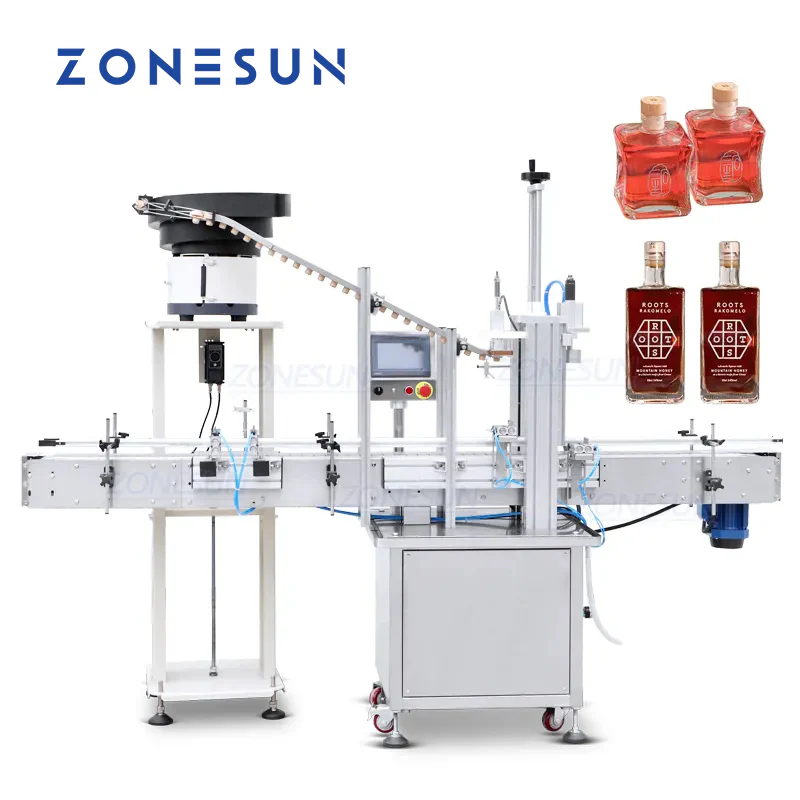

ZONESUN ZS-XG16D3 Automatic T-Cork Press Capping Machine
This bottle cap pressing machine is equipped with vibrating bowl sorter, which can make bottle caps be in order before capping work.It is suitable for the press type bottle caps like liquor bottle with T-cork, the inner plug.It is widely used in brewing, cosmetics or daily chemical industries.
Parameter
- Machine Model:ZS-XG16D3
- Working Voltage:AC220V/110V 50-60HZ
- Bottle Height:30-300mm
- Bottle Caps Diameter:18-70mm
- Bottle Diameter:30-100mm
- Working Speed:20-30 bottles/minute(depending on bottle and caps)
- Working Pressure:0.4-0.6 MPa
- Size Of Air Compressor Connector:OD 8mm
- Conveyor Length:115mm(W)*1020mm(L)
- Machine Size:About 2190*950*1860mm

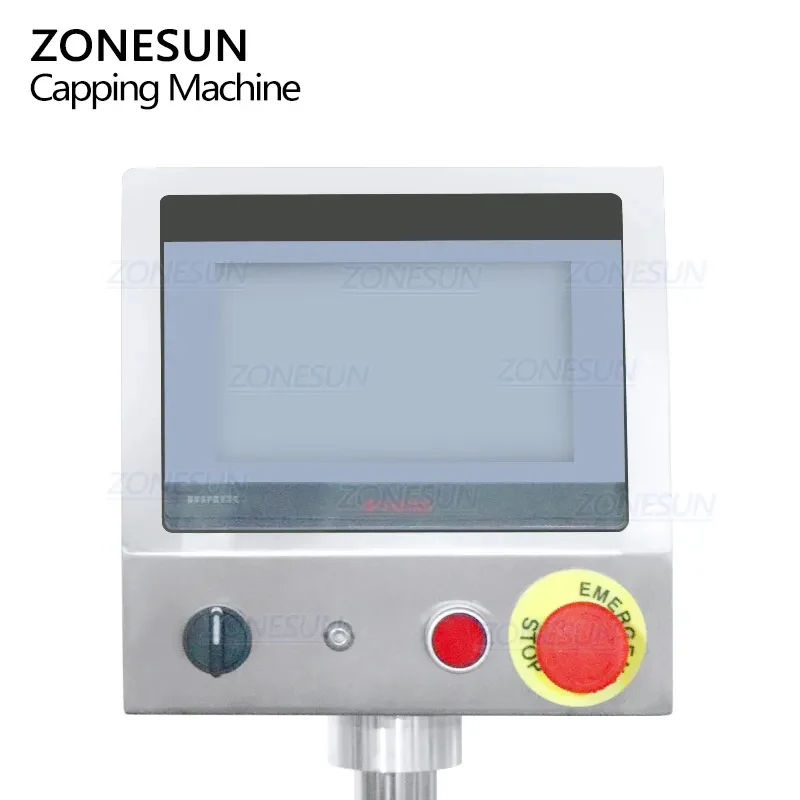

The touch screen control panel provides real-time monitoring of the machine's performance, including tracking the number of crimped bottles, detecting any errors or faults, and displaying machine status information.

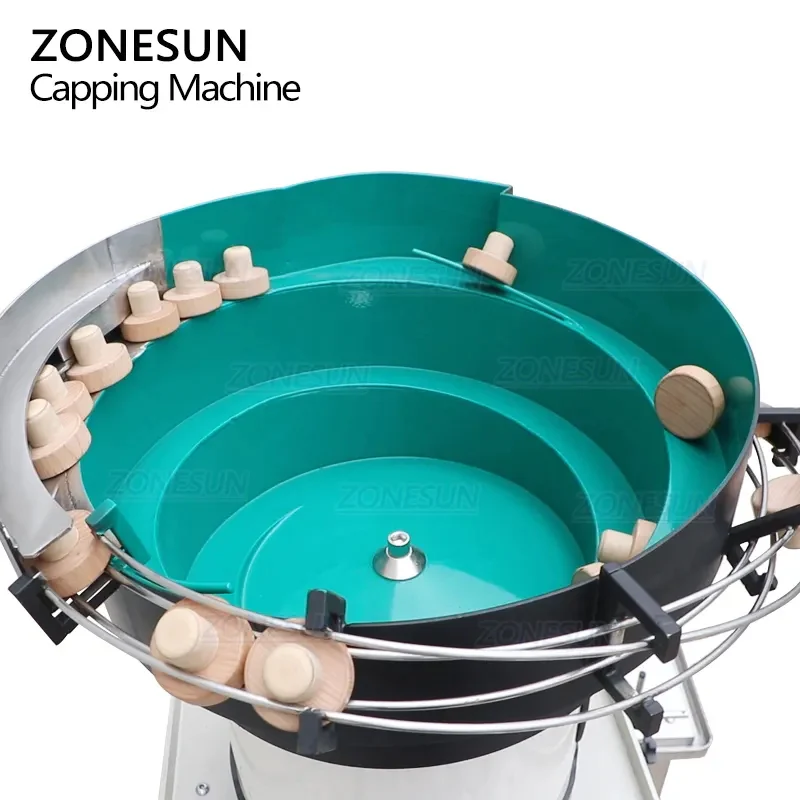

The vibrating bowl sorting machine will be customized according to cap type and size.This design is used to pre-treat the caps, so that the caps can be neatly entered into the guide rail and transported to the positioning structure, ensuring that the capping work can be processed smoothly

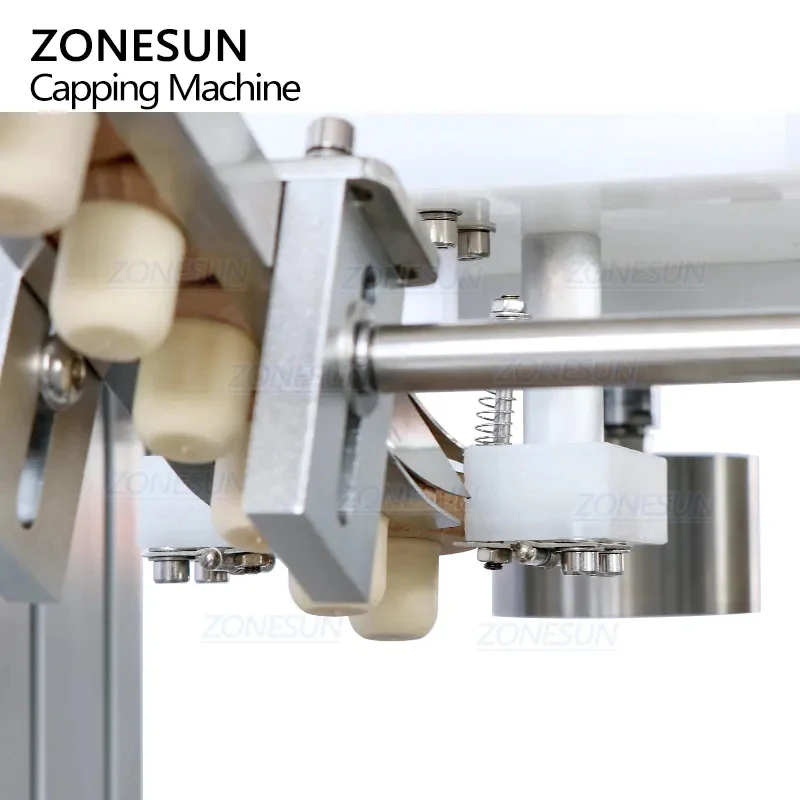

The cap positioning structure work with the cap guiding rail, it is designed for positioning the cap onto the mouth of the bottle and press them into the bottle slightly so that subsequent cap pressing work can be processed smoothly

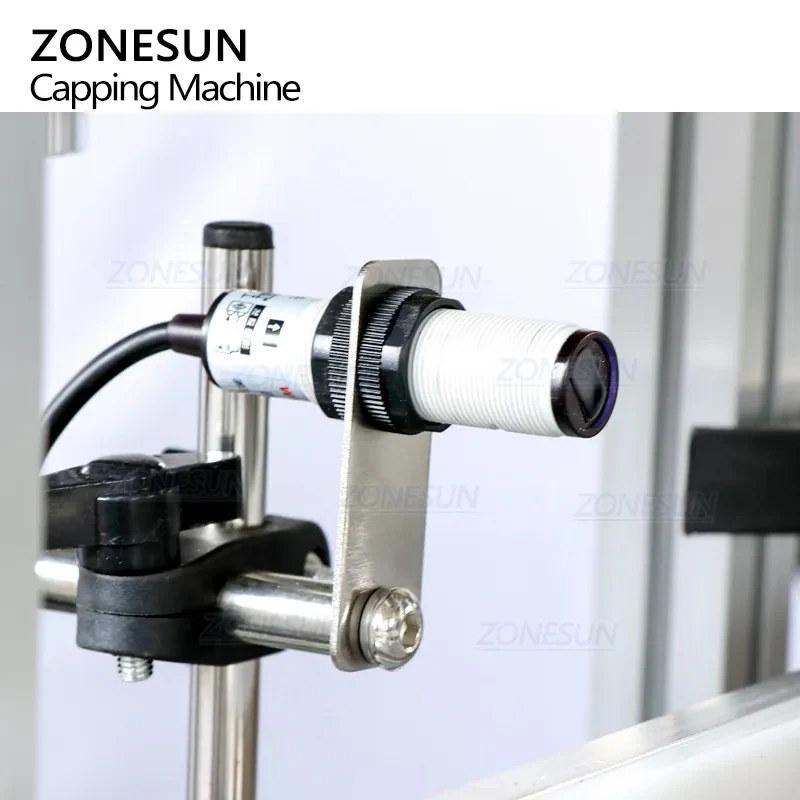

The electirc eye can send the signal to the control system when bottles pass by.With this, the automated capping work can be processed smoothly. The sensitivity can be adjusted according to production and improves working accuracy.
Controlled by the air cylinder, the pressing head is powerfule when pressing inner plug or T-cork.The pressing head will be customized according to bottle cap size, ensure the caps will be pressed perfectly.
Controlled by the air cylinder, the pressing head is powerfule when pressing inner plug or T-cork.The pressing head will be customized according to bottle cap size, ensure the caps will be pressed perfectly.
This bottle cap pressing machine is equipped with vibrating bowl sorter, which can make bottle caps be in order before capping work.It is suitable for the press type bottle caps like liquor bottle with T-cork, the inner plug.It is widely used in brewing, cosmetics or daily chemical industries.
Parameter
- Machine Model:ZS-XG16D3
- Working Voltage:AC220V/110V 50-60HZ
- Bottle Height:30-300mm
- Bottle Caps Diameter:18-70mm
- Bottle Diameter:30-100mm
- Working Speed:20-30 bottles/minute(depending on bottle and caps)
- Working Pressure:0.4-0.6 MPa
- Size Of Air Compressor Connector:OD 8mm
- Conveyor Length:115mm(W)*1020mm(L)
- Machine Size:About 2190*950*1860mm
The touch screen control panel provides real-time monitoring of the machine's performance, including tracking the number of crimped bottles, detecting any errors or faults, and displaying machine status information.
The vibrating bowl sorting machine will be customized according to cap type and size.This design is used to pre-treat the caps, so that the caps can be neatly entered into the guide rail and transported to the positioning structure, ensuring that the capping work can be processed smoothly
The cap positioning structure work with the cap guiding rail, it is designed for positioning the cap onto the mouth of the bottle and press them into the bottle slightly so that subsequent cap pressing work can be processed smoothly
The electirc eye can send the signal to the control system when bottles pass by.With this, the automated capping work can be processed smoothly. The sensitivity can be adjusted according to production and improves working accuracy.
Controlled by the air cylinder, the pressing head is powerfule when pressing inner plug or T-cork.The pressing head will be customized according to bottle cap size, ensure the caps will be pressed perfectly.
Controlled by the air cylinder, the pressing head is powerfule when pressing inner plug or T-cork.The pressing head will be customized according to bottle cap size, ensure the caps will be pressed perfectly.
Original: $5,799.00
-70%$5,799.00
$1,739.70Description
This bottle cap pressing machine is equipped with vibrating bowl sorter, which can make bottle caps be in order before capping work.It is suitable for the press type bottle caps like liquor bottle with T-cork, the inner plug.It is widely used in brewing, cosmetics or daily chemical industries.
Parameter
- Machine Model:ZS-XG16D3
- Working Voltage:AC220V/110V 50-60HZ
- Bottle Height:30-300mm
- Bottle Caps Diameter:18-70mm
- Bottle Diameter:30-100mm
- Working Speed:20-30 bottles/minute(depending on bottle and caps)
- Working Pressure:0.4-0.6 MPa
- Size Of Air Compressor Connector:OD 8mm
- Conveyor Length:115mm(W)*1020mm(L)
- Machine Size:About 2190*950*1860mm
The touch screen control panel provides real-time monitoring of the machine's performance, including tracking the number of crimped bottles, detecting any errors or faults, and displaying machine status information.
The vibrating bowl sorting machine will be customized according to cap type and size.This design is used to pre-treat the caps, so that the caps can be neatly entered into the guide rail and transported to the positioning structure, ensuring that the capping work can be processed smoothly
The cap positioning structure work with the cap guiding rail, it is designed for positioning the cap onto the mouth of the bottle and press them into the bottle slightly so that subsequent cap pressing work can be processed smoothly
The electirc eye can send the signal to the control system when bottles pass by.With this, the automated capping work can be processed smoothly. The sensitivity can be adjusted according to production and improves working accuracy.
Controlled by the air cylinder, the pressing head is powerfule when pressing inner plug or T-cork.The pressing head will be customized according to bottle cap size, ensure the caps will be pressed perfectly.
Controlled by the air cylinder, the pressing head is powerfule when pressing inner plug or T-cork.The pressing head will be customized according to bottle cap size, ensure the caps will be pressed perfectly.
