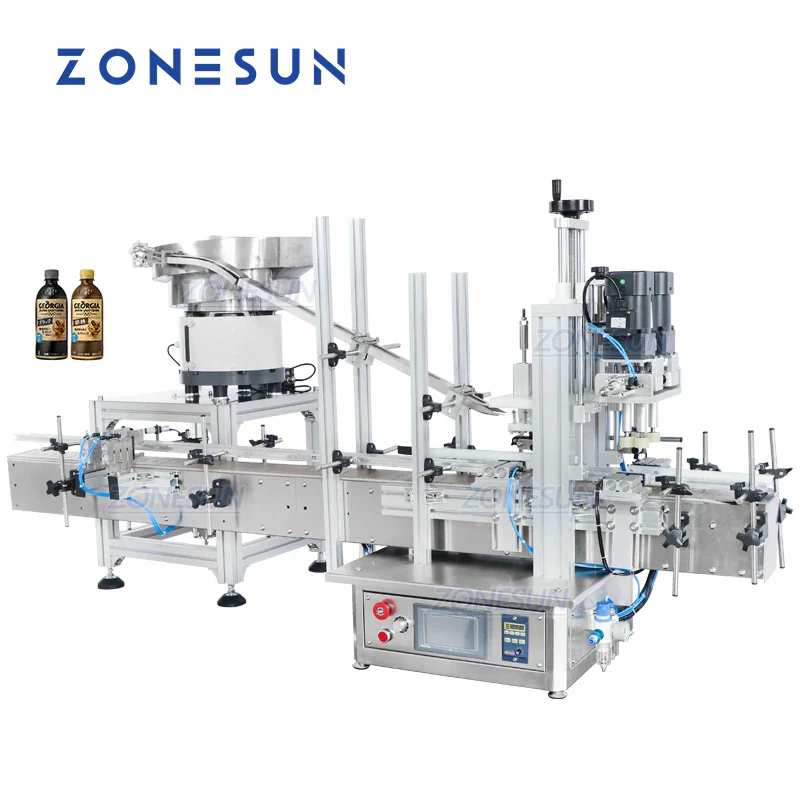

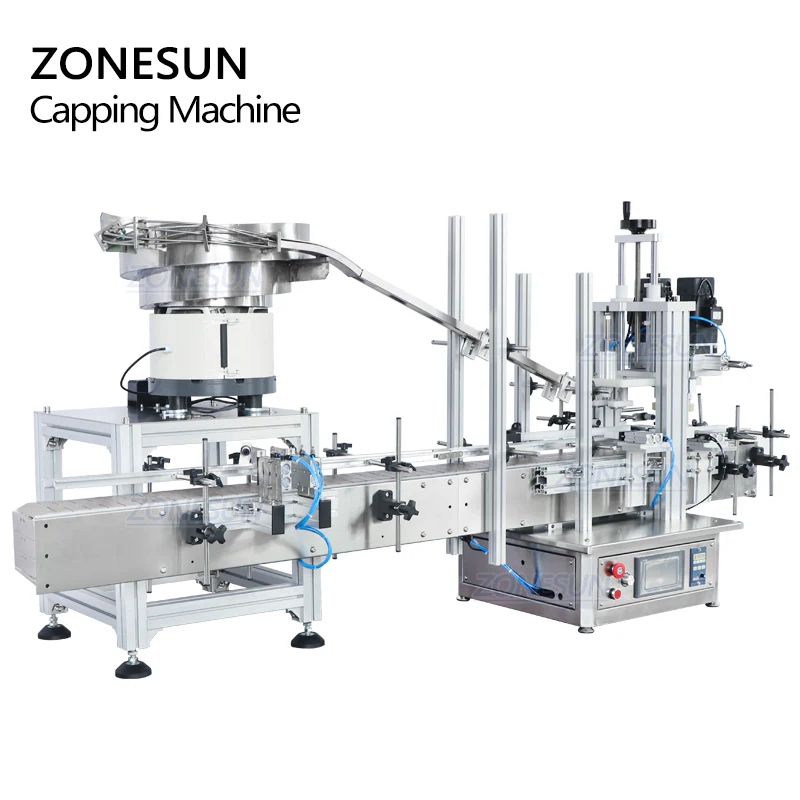

The ZS-XG1870V is a compact benchtop capping machine equipped with a vibratory bowl for automatic cap feeding. Designed for tightening various bottle caps including droppers and beverage lids, it improves efficiency and reduces labor costs. Ideal for cosmetics, pharmaceuticals, and food industries, it can be integrated with filling and labeling machines to form a complete production line. Customizable for different cap sizes.

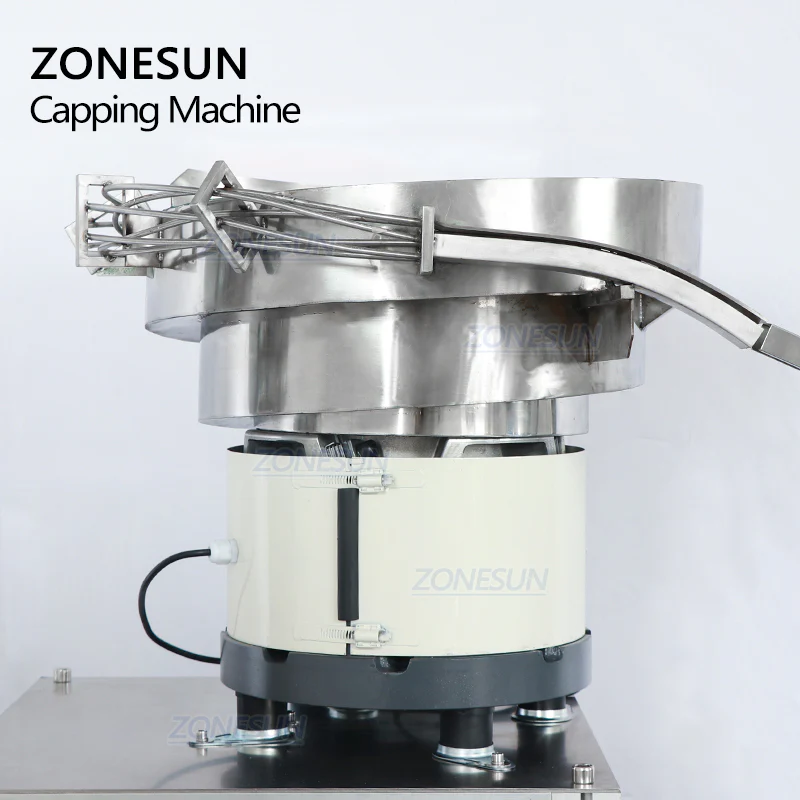

Vibratory Bowl
Item Specification
Machine Power 110/220V, 50–60Hz
Material Stainless Steel
Suitable Caps Diameter Customized
Working Speed Customized
Machine Size Customized

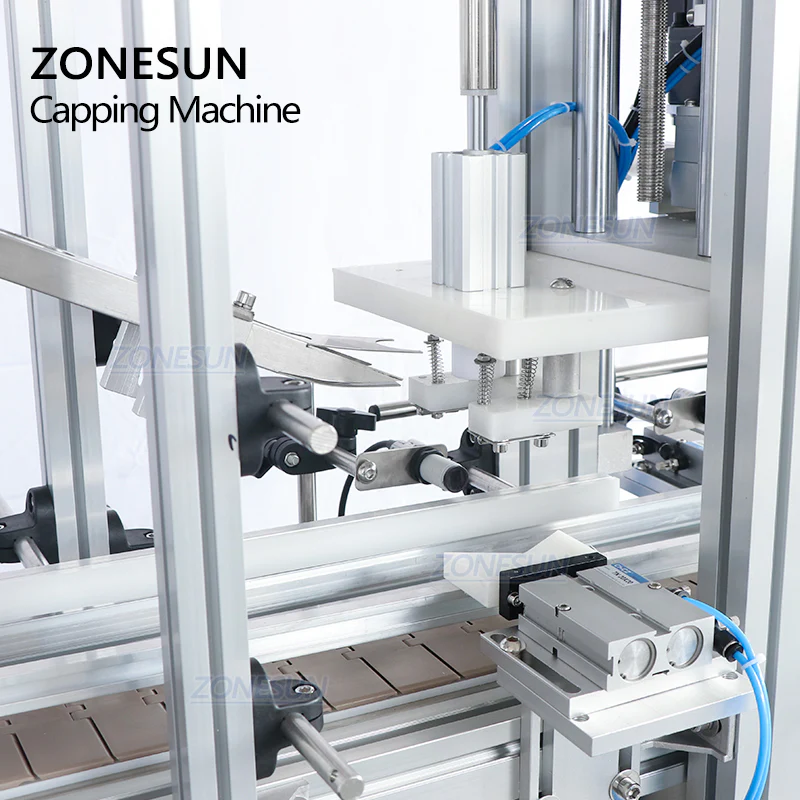

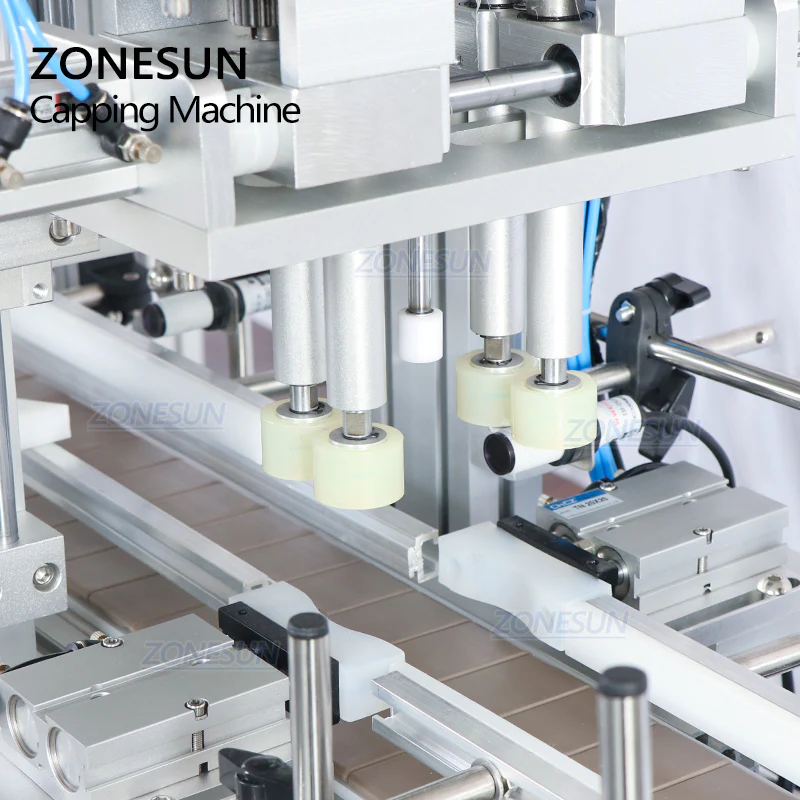

Capping Machine
Item Specification
Bottle Height 60–270 mm
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size Approx. 1300 × 580 × 1110 mm
Package Size Approx. 1610 × 610 × 1140 mm
Package Weight Approx. 97.5 kg
Conveyor Length 1117 mm
Size of Air Compressor Connector φ8 mm
