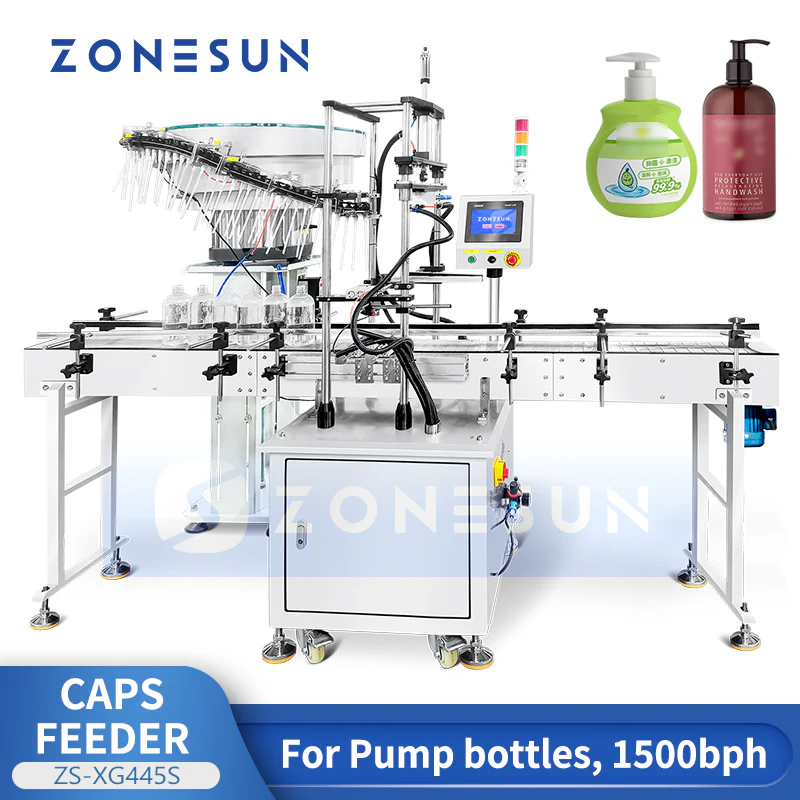

ZONESUN ZS-XG445S Pump Bottle Cap Feeding Machine
DESCRIPTION
This automatic cap feeding machine is specifically designed for pump bottles with dip tubes. It features a bowl feeder for efficient cap sorting and delivery, a slide for smooth cap transfer, and a pneumatic gripper that accurately places caps onto bottles arriving via a conveyor belt. The capped bottles are then transported to the next station for further processing.
Parameter
- Machine model: ZS-XG445S
- Voltage: 110V/220V
- Power: 1.5KW
- Capacity: 5-25 Bottle/Min (based on bottle and cap size)
- Air pressure: 0.5-0.8Mpa
- Suitable bottles: Customize according to sample
- Cap feeding way: Pneumatic fetch
- Machine size: About 3000×1300×2100mm (L×W×H)
- Packaging size:
- About 1090×640×1960mm (machine)
- About 1060×970×1570mm (Vibratory bowl sorter)
- Packaging weight:
- About 210kg (machine)
- About 106kg (Vibratory bowl sorter)
DESCRIPTION
This automatic cap feeding machine is specifically designed for pump bottles with dip tubes. It features a bowl feeder for efficient cap sorting and delivery, a slide for smooth cap transfer, and a pneumatic gripper that accurately places caps onto bottles arriving via a conveyor belt. The capped bottles are then transported to the next station for further processing.
Parameter
- Machine model: ZS-XG445S
- Voltage: 110V/220V
- Power: 1.5KW
- Capacity: 5-25 Bottle/Min (based on bottle and cap size)
- Air pressure: 0.5-0.8Mpa
- Suitable bottles: Customize according to sample
- Cap feeding way: Pneumatic fetch
- Machine size: About 3000×1300×2100mm (L×W×H)
- Packaging size:
- About 1090×640×1960mm (machine)
- About 1060×970×1570mm (Vibratory bowl sorter)
- Packaging weight:
- About 210kg (machine)
- About 106kg (Vibratory bowl sorter)
Original: $6,799.00
-70%$6,799.00
$2,039.70Description
DESCRIPTION
This automatic cap feeding machine is specifically designed for pump bottles with dip tubes. It features a bowl feeder for efficient cap sorting and delivery, a slide for smooth cap transfer, and a pneumatic gripper that accurately places caps onto bottles arriving via a conveyor belt. The capped bottles are then transported to the next station for further processing.
Parameter
- Machine model: ZS-XG445S
- Voltage: 110V/220V
- Power: 1.5KW
- Capacity: 5-25 Bottle/Min (based on bottle and cap size)
- Air pressure: 0.5-0.8Mpa
- Suitable bottles: Customize according to sample
- Cap feeding way: Pneumatic fetch
- Machine size: About 3000×1300×2100mm (L×W×H)
- Packaging size:
- About 1090×640×1960mm (machine)
- About 1060×970×1570mm (Vibratory bowl sorter)
- Packaging weight:
- About 210kg (machine)
- About 106kg (Vibratory bowl sorter)
