DESCRIPTION

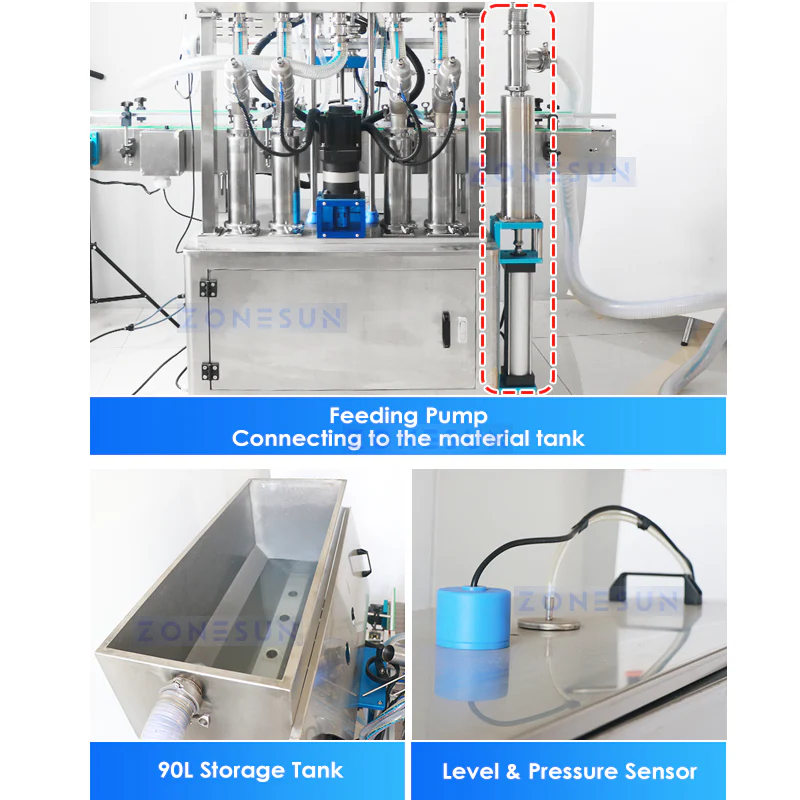

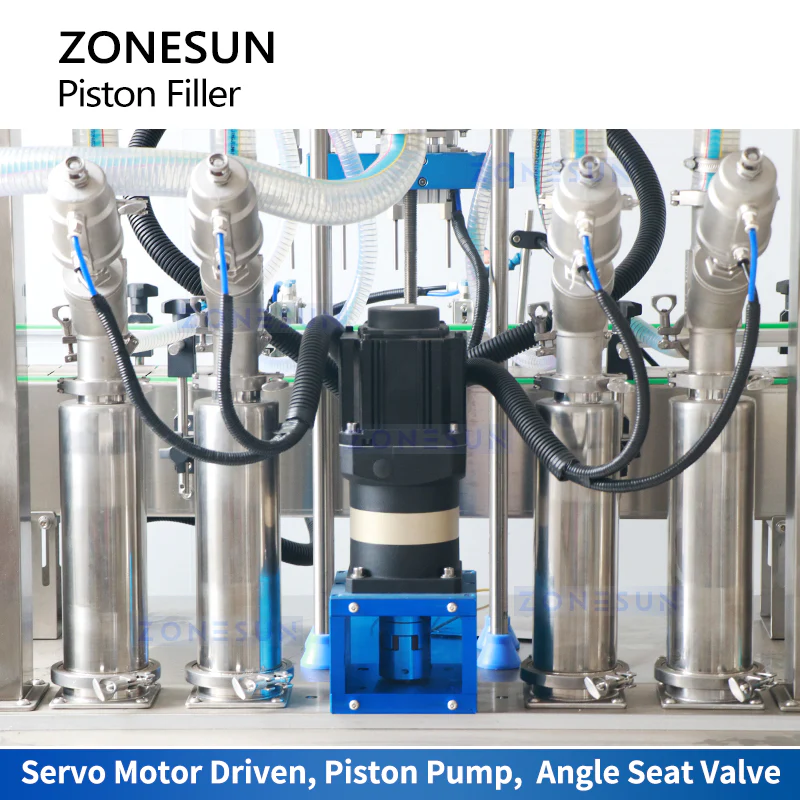

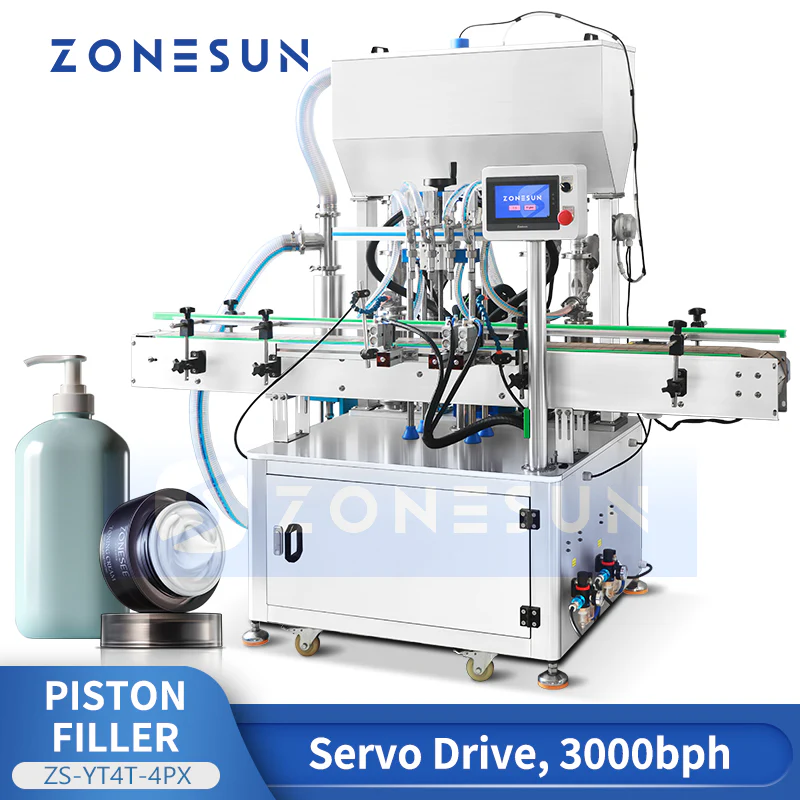

This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.This machine is suitable for filling hot sauce, cosmetic cream,lotion etc.

Parameter

• Model: ZS-YT4T-4PX
• Voltage: 110/220V 50-60HZ 1KW
• Filling Range: 10-180ml / 30-500ml / 100-1000ml
• Working Speed: About 30-50 bottles/min
• Filling Pump: Piston pump
• Filling Accuracy: ≤ ±1%

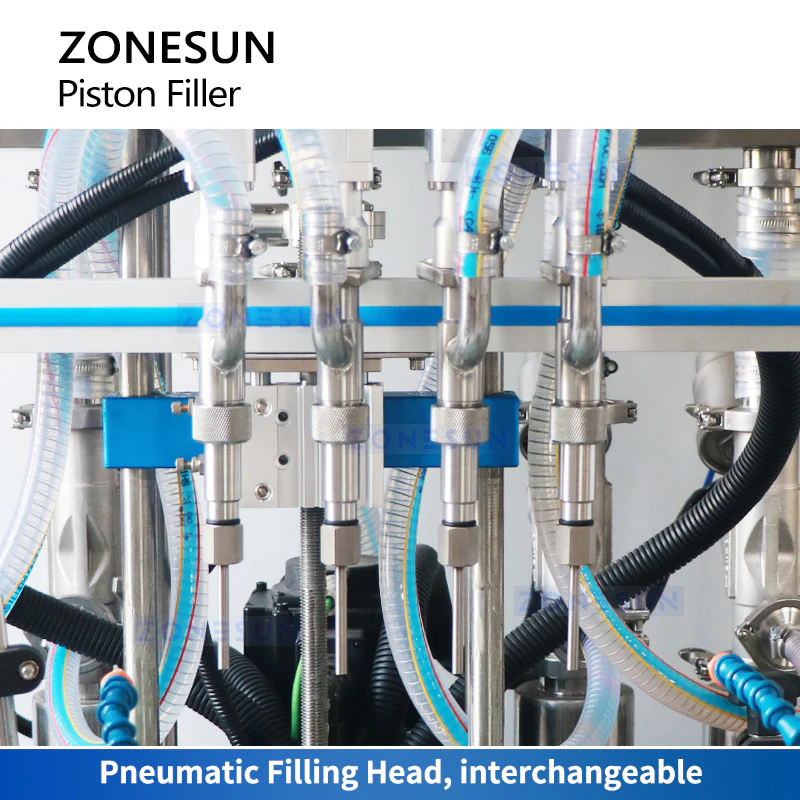

• Filling Head: 4 (Customizable) Inner dia.: 6mm4 & 8mm4

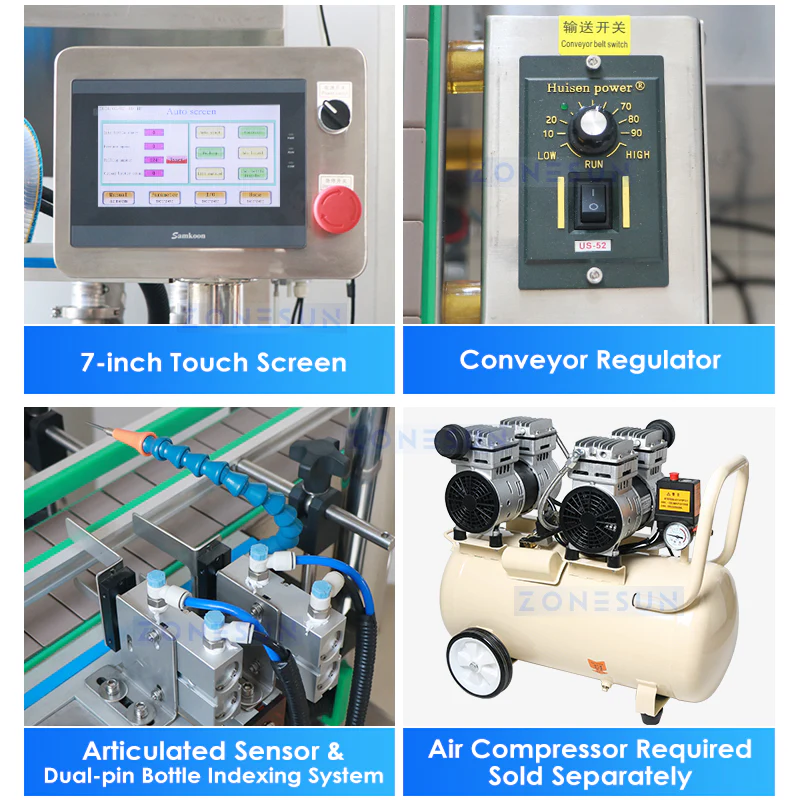

• Control: 7-inch touch screen
• Storage Tank: 90L
• Conveyor: 2000 × 114mm (Customizable)
• Air Supply: 0.6-0.8MPa (Air compressor required, sold separately)
• Size: 2000 × 800 × 1800mm
• Weight: 200kg
• Packaging Size: 2070 × 960 × 2010mm (100-1000ml)
• Packaging Weight: 392kg (100-1000ml)
