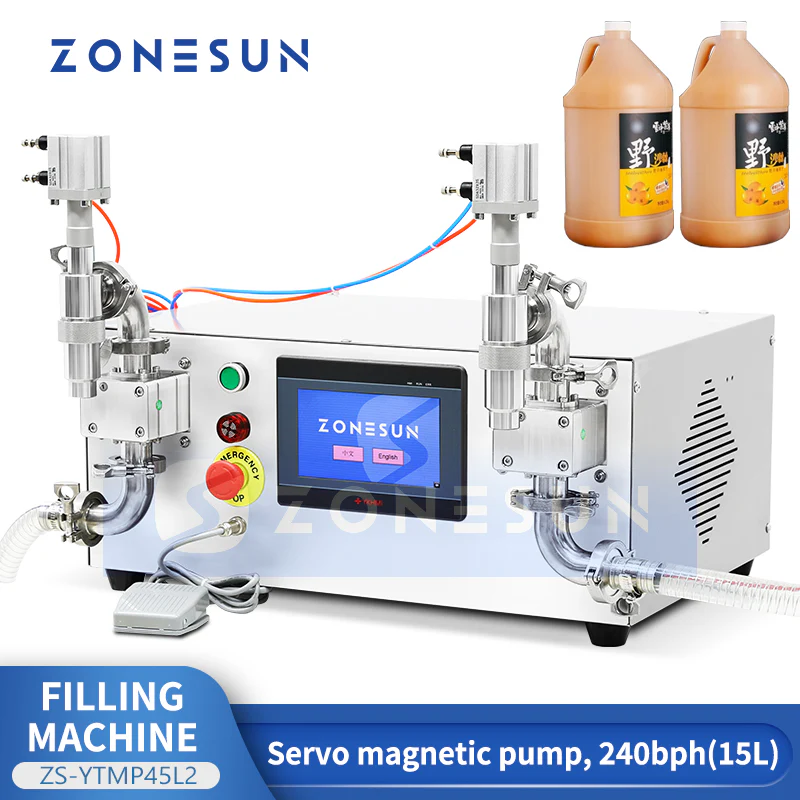

ZONESUN ZS-YTMP45L2 Double Head Bucket Liquid Filling Machine
DESCRIPTION

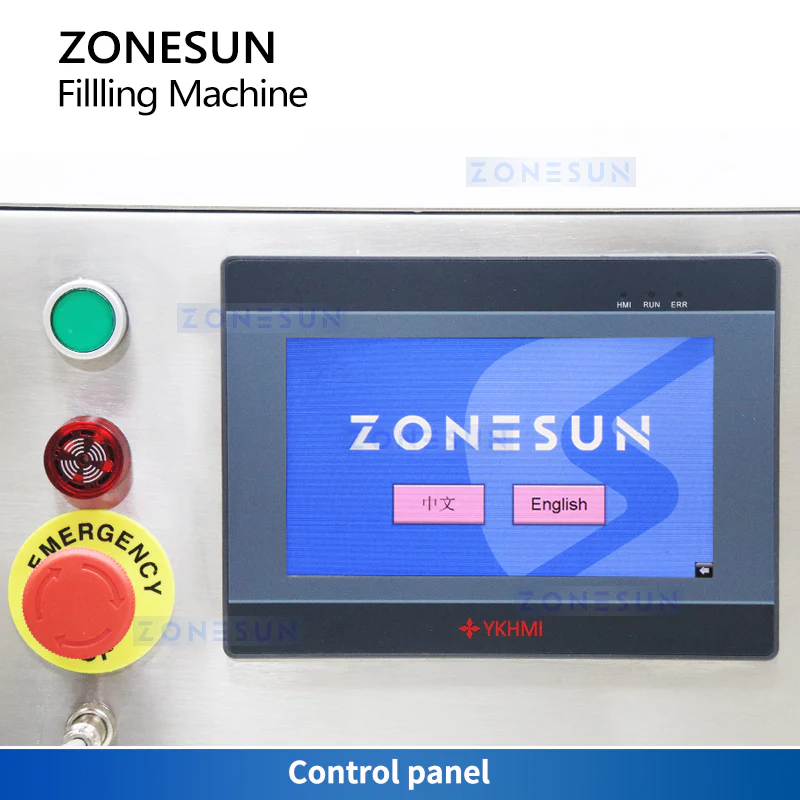

Introducing our powerful tabletop filling machine, designed for efficient and precise filling of large containers. Equipped with two servo motor-driven magnetic pumps, this machine delivers a high flow rate of up to 45L/min, ensuring rapid filling. The dual pneumatic filling heads provide accurate and consistent filling, while the user-friendly touchscreen interface allows for easy control and multi-speed settings. Directly set the desired filling volume for effortless operation. Ideal for filling buckets and other large containers, our tabletop filling machine is a reliable and versatile solution for your production needs.
Parameter
- Model: ZS-YTMP45L2
- Machine voltage: 110/220V, 50–60Hz, 1600W

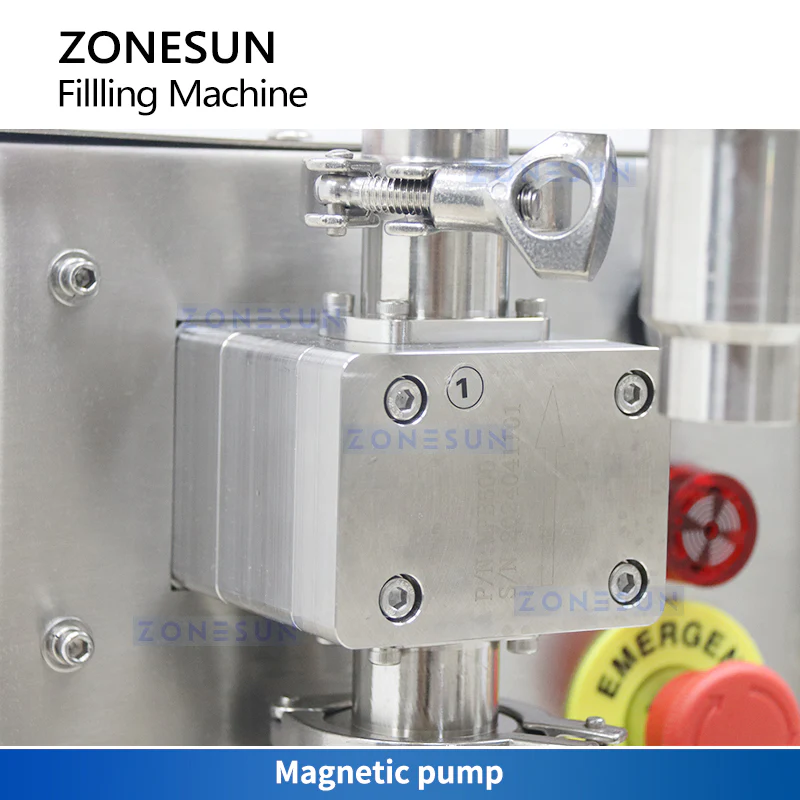

- Filling pump: Servo motor driven magnetic pump
- Viscosity of the liquid: 0.2–12000cps
- Max flow rate: 45L/min
- Recommended filling range: 5L–30L
- Filling accuracy: 0.2%–1%
- Working speed: 240bph (15L/bottle)

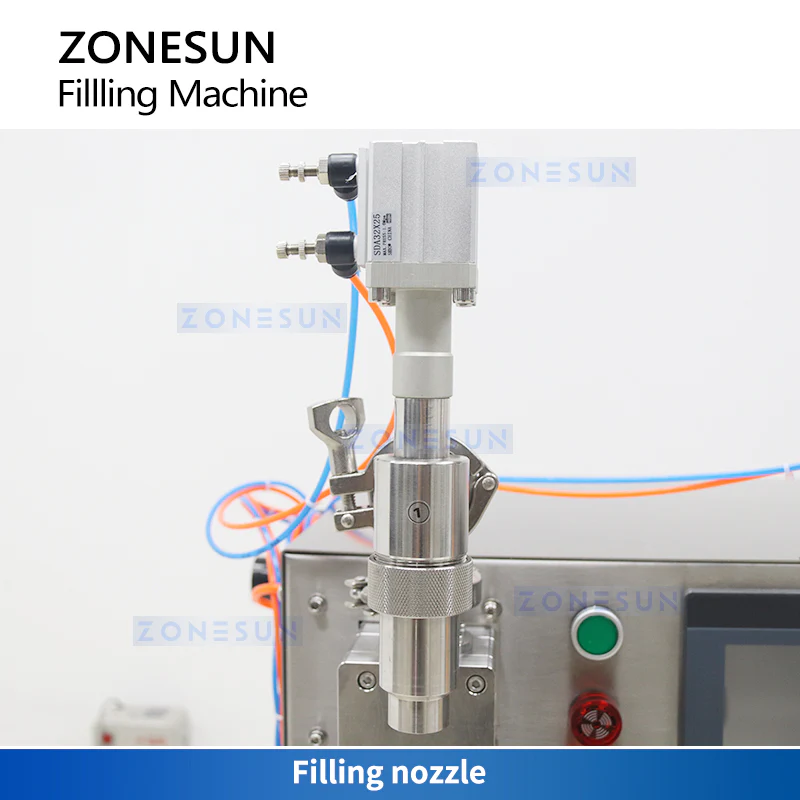

- Filling head: Anti-dripping, OD=25mm, ID=23mm (available in other sizes)
- Machine size (L×W×H): 603×576×465mm
- Packing size: 67×58×63cm
- Gross weight: 77kg
