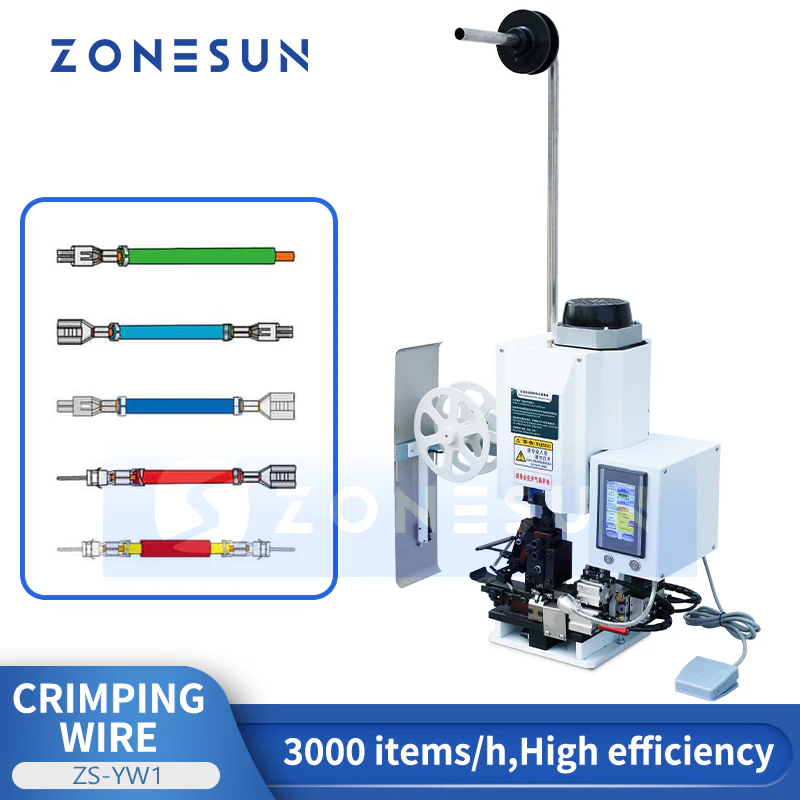

ZONESUN ZS-YW1 Semi-automatic Wire Terminal Crimping Machine
DESCRIPTION
Introducing our high-efficiency wire crimping machine, designed for precise crimping of multi-core cables including computer wires, isolation wires, telephone lines, ribbon cables, USB data cables, power cords, headphone wires, and audio cables. This advanced machine operates with low noise levels while delivering high output, making it an ideal choice for manufacturers seeking reliability and productivity. Each device is compatible with a specific product size, and the machine must be customized according to your wires and terminals. If you have multiple sizes and need to customize additional molds, the cost per set is $500. After placing the order, we will send you the factory address and you can send us samples. We will customize the machine for you. thank you.
PARAMETER
- Model：ZS-YW1
- Powder Supply：220V/50HZ
- Out Put ：3600/Hour
- Pressing force：1.5T
- Peeling length：0.8-7mm
- Compatible Wire Sizes：AWG 16–32 (Protective Wires)
- Packaging Weight ：65kg
- Packaging Weight：L460*W600*H830mm
Simple Control Panel
Touchscreen interface allows for quick and intuitive parameter adjustment. Easy to operate, user-friendly, and efficient.

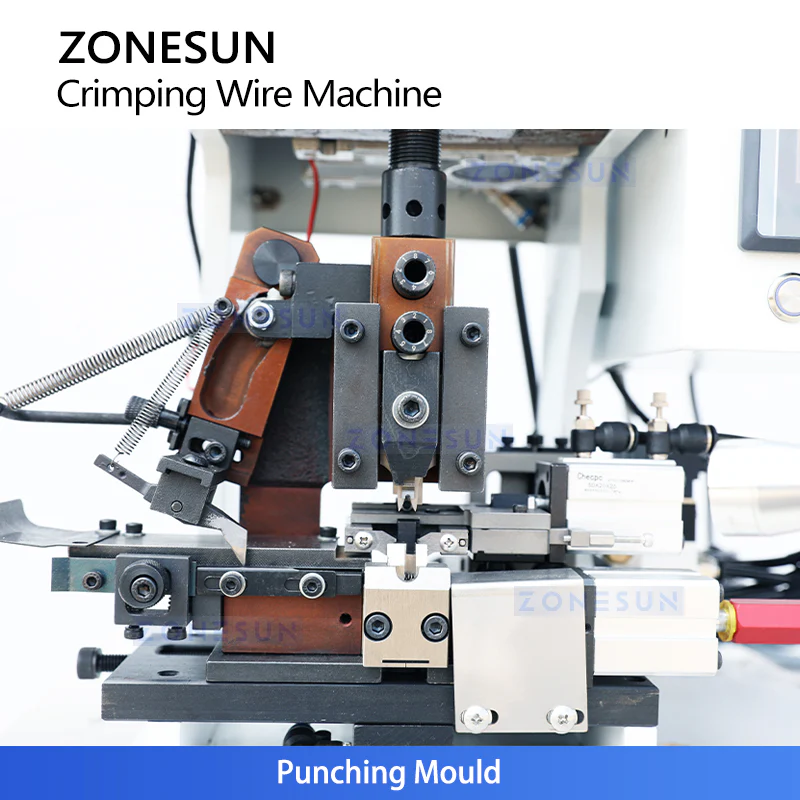

Punching Mould
Equipped with high-speed, wear-resistant precision molds. Ensures stable and rapid crimping operation. Molds can be customized to fit different product sizes upon request.

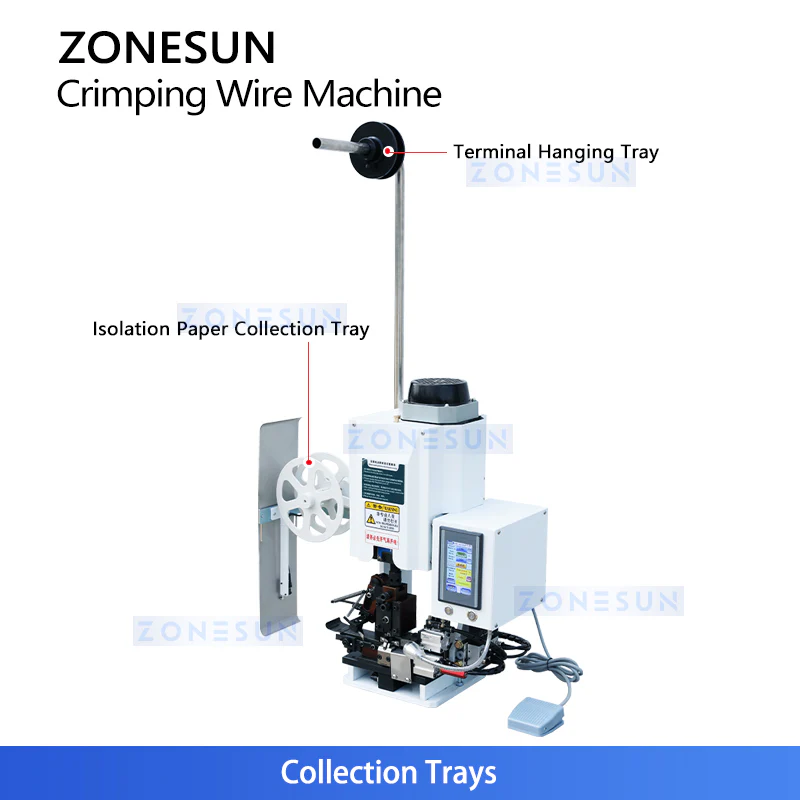

Collection Trays
Configured with two collection trays: one for terminal reels, and another for collecting isolation paper. Designed for focused crimping operations and enhanced production speed.

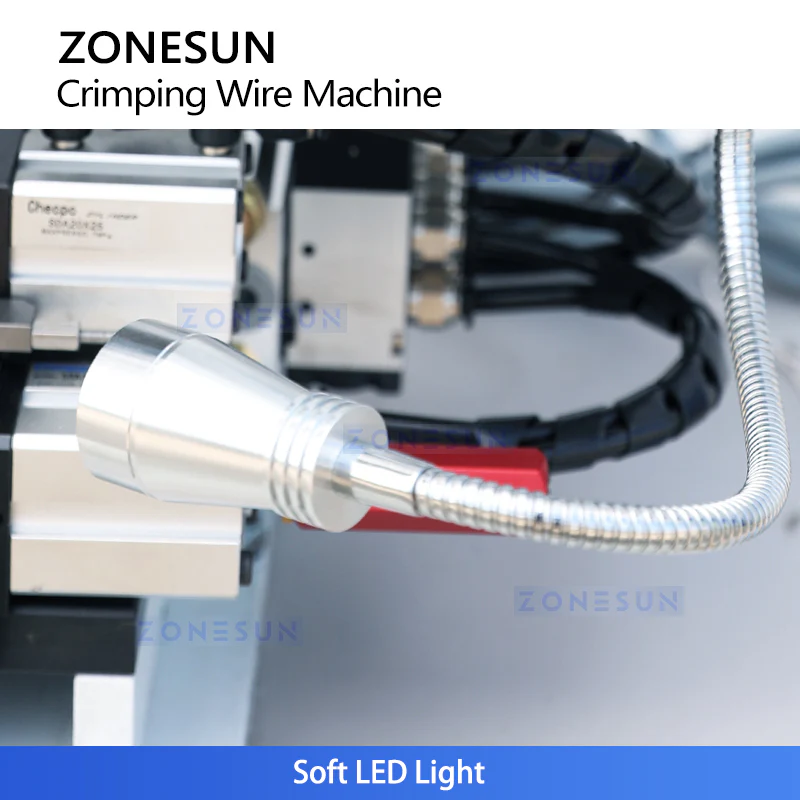

Soft LED Light
Gentle LED lighting protects eyes without glare. Flexible metal neck allows free adjustment of light direction.
Motor
Built with a high-performance motor for smooth current flow, stable performance, and strong power output.
