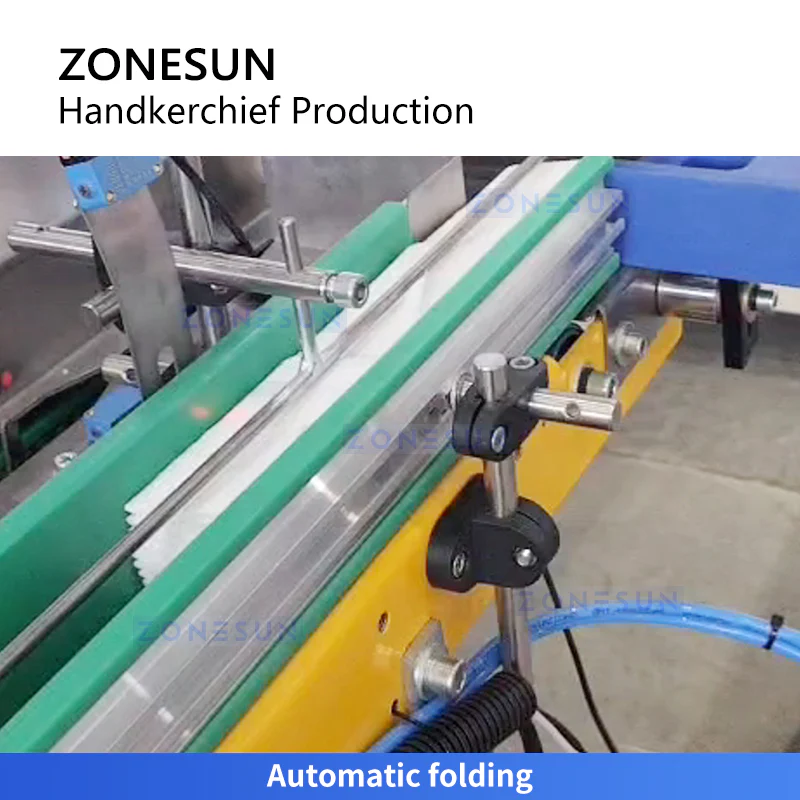

The ZONESUN ZS-ZJL1 is a fully automatic facial tissue production line engineered for high-speed, low-labor manufacturing. It integrates a folding machine, single-pack sealing unit, and multi-pack machine into one streamlined system. Featuring vacuum suction, intelligent feeding, and non-stepping speed adjustment, it ensures smooth operation and consistent output. With stable speeds of up to 100 packages/min and precise control over folding and sealing, this line is ideal for producing four-fold tissues for consumer and commercial use. Its robust design and automation capabilities significantly reduce production costs while maximizing efficiency.

TECHNICAL SPECIFICATIONS – FOLDING MACHINE

• Power Supply: 380V 50Hz
• Voltage Change: ±10%
• Air Source Pressure: Above 0.4MPa
• Product Speed: Max speed 80 packages/min, stable speed ~75 packages/min
• Overall Dimensions (L×W×H): 4580 × 2430 × 1510mm

TECHNICAL SPECIFICATIONS – PACKAGING MACHINE

• Electric Cabinet Power Supply: 380V
• Air Source Pressure: 5–6kg/cm²
• Total Driving Power: 3.5kW
• Total Heating Power: 3kW
• Voltage Change: ±10%
• Design Production Speed: 120 packages/min
• Maximum Stable Production Speed: 100 packages/min
• Overall Machine Size: L 2835mm × W 2790mm × H 1675mm
• Overall Machine Weight: ≥1300kg

TECHNICAL SPECIFICATIONS – MEDIUM CHARTER FLIGHT

• Total Driving Power: 4kW
• Electric Cabinet Power Supply: 380V
• Total Heating Power: 3.6kW
• Voltage Change: ±10%
• Designed Production Speed: 20 pieces/min
• Air Source Pressure: 5–6kg/cm²
• Maximum Stable Production Speed: 20 pieces/min
• Overall Machine Dimensions: L 4400mm × W 2200mm × H 1500mm
• Overall Machine Weight: ≥1200kg
