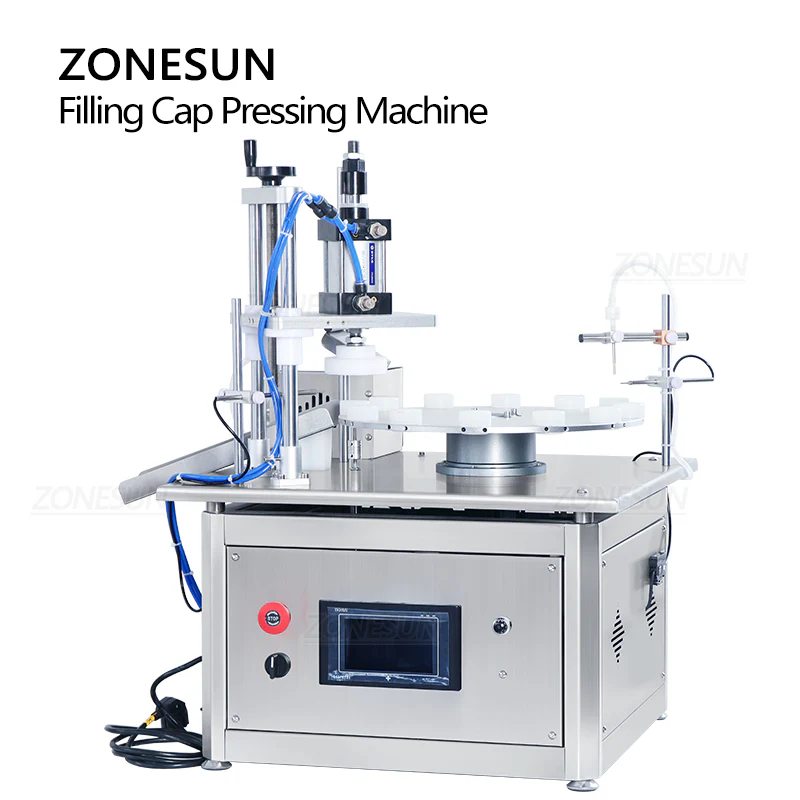

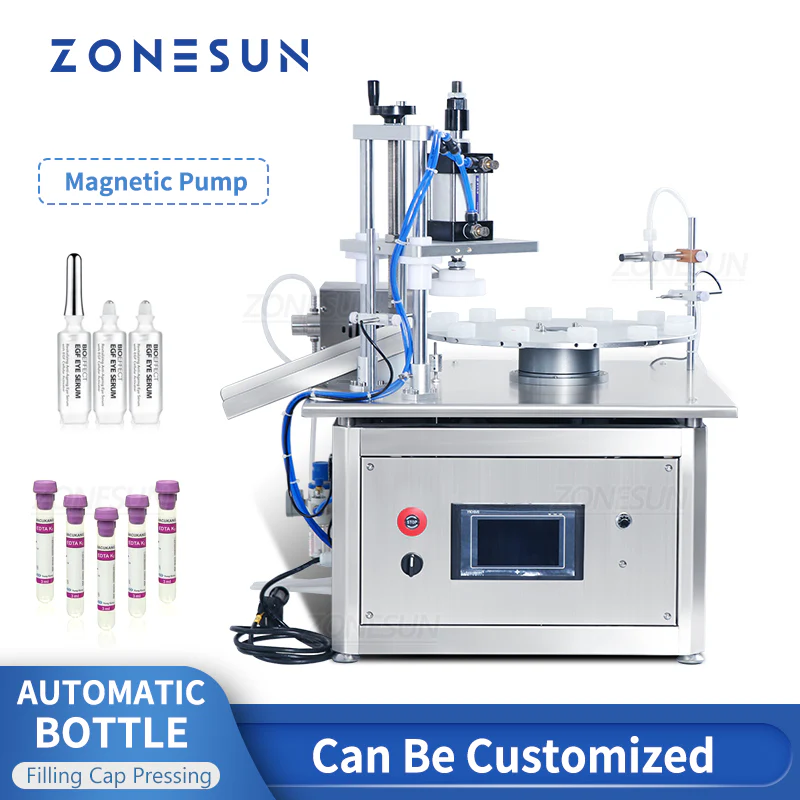

ZONESUN ZS‑AFC1C Magnetic Pump Liquid Filling & Capping Machine
The ZONESUN ZS‑AFC1C Automatic 2‑in‑1 Magnetic Pump Filling and Capping Machine delivers precise liquid filling with a durable magnetic pump system. Compact yet powerful, it can be integrated with a labeling machine to streamline fully automated production lines. Ideal for solutions, reagents, and other low‑viscosity liquids in tubes or vials, this space‑saving unit boosts efficiency while maintaining accuracy. Customizable options are available for bottle and cap sizes, ensuring flexibility for diverse production needs.
ZS‑AFC1C — Specifications
Parameter Details
Machine Model ZS‑AFC1C
Voltage 110 V / 220 V
Machine Pump Magnetic pump
Machine Power 500 W
Filling Range ≤ 100 ml
Bottle Diameter 10 – 40 mm
Bottle Height ≤ 120 mm (customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size Outer Diameter 2 mm
Working Speed 20 – 50 bottles/min (depends on liquid & bottle size)
Machine Size Approx. 580 × 580 × 800 mm
Machine Weight Approx. 35 kg
Package Size Approx. 600 × 670 × 990 mm
Package Weight Approx. 77 kg
The ZONESUN ZS‑AFC1C Automatic 2‑in‑1 Magnetic Pump Filling and Capping Machine delivers precise liquid filling with a durable magnetic pump system. Compact yet powerful, it can be integrated with a labeling machine to streamline fully automated production lines. Ideal for solutions, reagents, and other low‑viscosity liquids in tubes or vials, this space‑saving unit boosts efficiency while maintaining accuracy. Customizable options are available for bottle and cap sizes, ensuring flexibility for diverse production needs.
ZS‑AFC1C — Specifications
Parameter Details
Machine Model ZS‑AFC1C
Voltage 110 V / 220 V
Machine Pump Magnetic pump
Machine Power 500 W
Filling Range ≤ 100 ml
Bottle Diameter 10 – 40 mm
Bottle Height ≤ 120 mm (customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size Outer Diameter 2 mm
Working Speed 20 – 50 bottles/min (depends on liquid & bottle size)
Machine Size Approx. 580 × 580 × 800 mm
Machine Weight Approx. 35 kg
Package Size Approx. 600 × 670 × 990 mm
Package Weight Approx. 77 kg
Original: $4,099.00
-70%$4,099.00
$1,229.70Description
The ZONESUN ZS‑AFC1C Automatic 2‑in‑1 Magnetic Pump Filling and Capping Machine delivers precise liquid filling with a durable magnetic pump system. Compact yet powerful, it can be integrated with a labeling machine to streamline fully automated production lines. Ideal for solutions, reagents, and other low‑viscosity liquids in tubes or vials, this space‑saving unit boosts efficiency while maintaining accuracy. Customizable options are available for bottle and cap sizes, ensuring flexibility for diverse production needs.
ZS‑AFC1C — Specifications
Parameter Details
Machine Model ZS‑AFC1C
Voltage 110 V / 220 V
Machine Pump Magnetic pump
Machine Power 500 W
Filling Range ≤ 100 ml
Bottle Diameter 10 – 40 mm
Bottle Height ≤ 120 mm (customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size Outer Diameter 2 mm
Working Speed 20 – 50 bottles/min (depends on liquid & bottle size)
Machine Size Approx. 580 × 580 × 800 mm
Machine Weight Approx. 35 kg
Package Size Approx. 600 × 670 × 990 mm
Package Weight Approx. 77 kg
