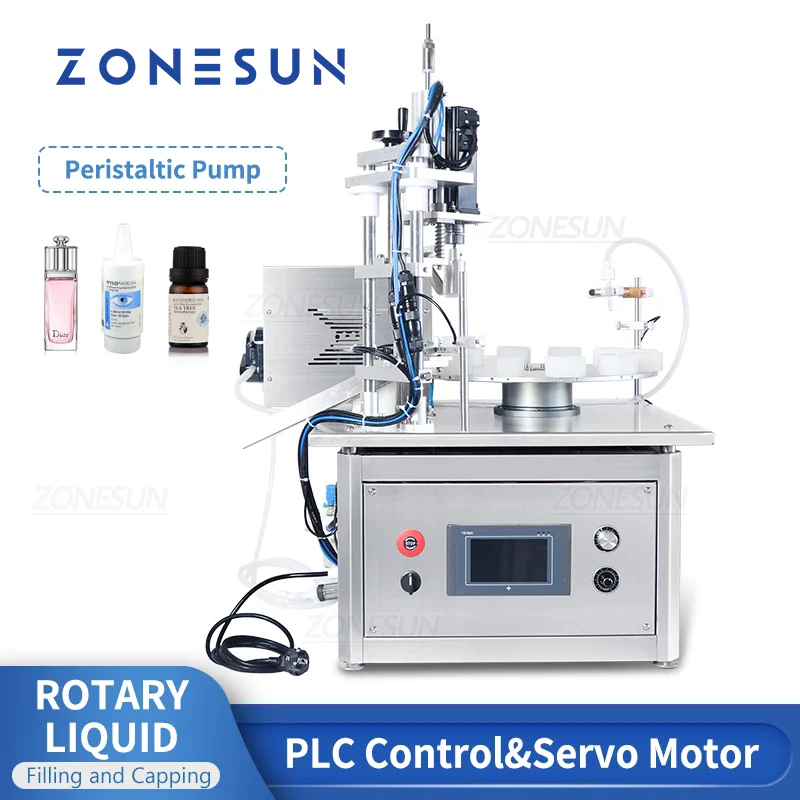

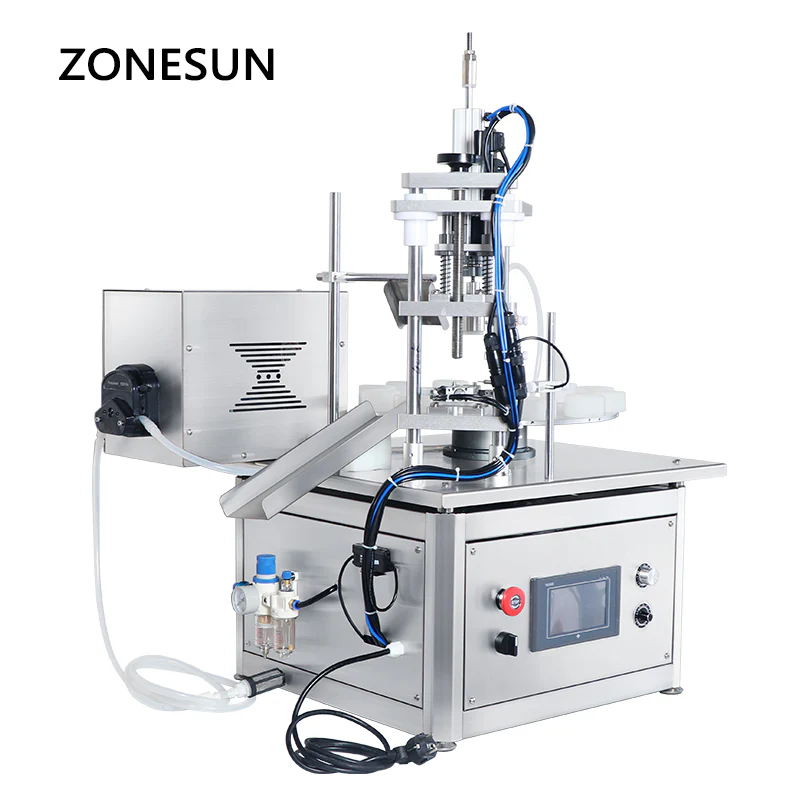

ZONESUN ZS-AFC1P Liquid Filling Capping Machine for Essential Oils & Perfume
The ZONESUN ZS-AFC1P is a compact, high-precision automatic filling and capping machine designed for low-viscosity liquids such as essential oils, perfumes, and eye drops. Equipped with a peristaltic pump, it ensures hygienic, accurate dosing and minimal liquid waste. Its adjustable bottle and cap compatibility make it ideal for small-batch production in pharmaceutical, cosmetic, and chemical industries. With a working speed of up to 50 bottles per minute, this machine streamlines your filling process while maintaining consistent quality.
ZS-AFC1P Peristaltic Pump Liquid Filling and Capping Machine – Technical Specification
Item Specification
Machine Model ZS-AFC1P
Voltage 220V / 110V, 50–60Hz
Power 500W

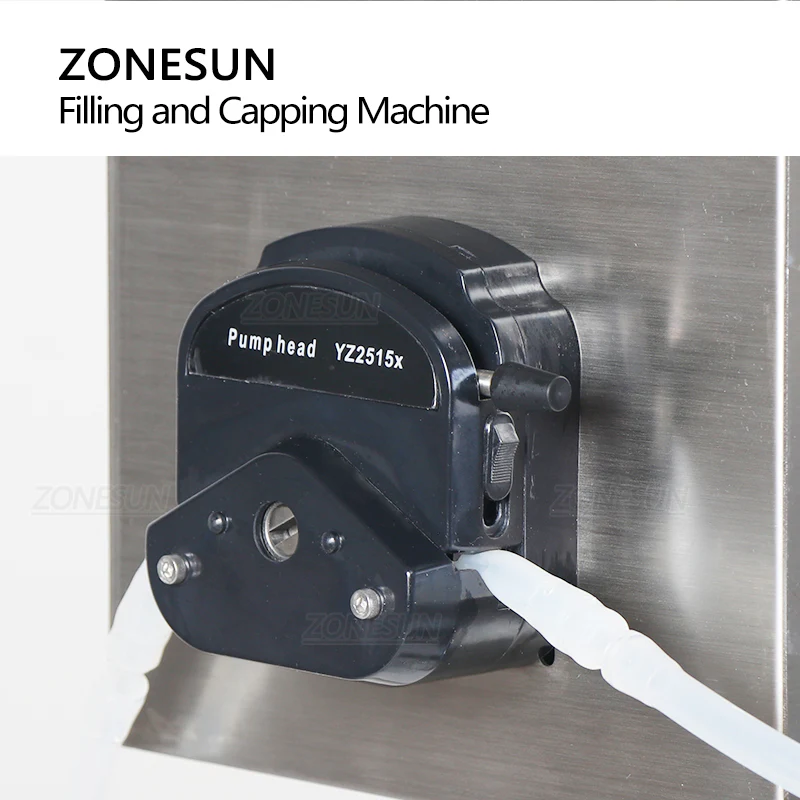

Machine Pump Type Peristaltic Pump
Filling Range ≤100ml
Bottle Diameter 10–40mm
Bottle Height ≤120mm (customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size OD 6mm
Working Speed Approx. 20–50 bottles/min (depends on liquid & bottle size)
Machine Dimensions Approx. 510mm × 510mm × 970mm
Machine Weight Approx. 69kg
Package Dimensions Approx. 860mm × 715mm × 1030mm
Package Weight Approx. 95.5kg
The ZONESUN ZS-AFC1P is a compact, high-precision automatic filling and capping machine designed for low-viscosity liquids such as essential oils, perfumes, and eye drops. Equipped with a peristaltic pump, it ensures hygienic, accurate dosing and minimal liquid waste. Its adjustable bottle and cap compatibility make it ideal for small-batch production in pharmaceutical, cosmetic, and chemical industries. With a working speed of up to 50 bottles per minute, this machine streamlines your filling process while maintaining consistent quality.
ZS-AFC1P Peristaltic Pump Liquid Filling and Capping Machine – Technical Specification
Item Specification
Machine Model ZS-AFC1P
Voltage 220V / 110V, 50–60Hz
Power 500W
Machine Pump Type Peristaltic Pump
Filling Range ≤100ml
Bottle Diameter 10–40mm
Bottle Height ≤120mm (customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size OD 6mm
Working Speed Approx. 20–50 bottles/min (depends on liquid & bottle size)
Machine Dimensions Approx. 510mm × 510mm × 970mm
Machine Weight Approx. 69kg
Package Dimensions Approx. 860mm × 715mm × 1030mm
Package Weight Approx. 95.5kg
Original: $4,099.00
-70%$4,099.00
$1,229.70Description
The ZONESUN ZS-AFC1P is a compact, high-precision automatic filling and capping machine designed for low-viscosity liquids such as essential oils, perfumes, and eye drops. Equipped with a peristaltic pump, it ensures hygienic, accurate dosing and minimal liquid waste. Its adjustable bottle and cap compatibility make it ideal for small-batch production in pharmaceutical, cosmetic, and chemical industries. With a working speed of up to 50 bottles per minute, this machine streamlines your filling process while maintaining consistent quality.
ZS-AFC1P Peristaltic Pump Liquid Filling and Capping Machine – Technical Specification
Item Specification
Machine Model ZS-AFC1P
Voltage 220V / 110V, 50–60Hz
Power 500W
Machine Pump Type Peristaltic Pump
Filling Range ≤100ml
Bottle Diameter 10–40mm
Bottle Height ≤120mm (customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size OD 6mm
Working Speed Approx. 20–50 bottles/min (depends on liquid & bottle size)
Machine Dimensions Approx. 510mm × 510mm × 970mm
Machine Weight Approx. 69kg
Package Dimensions Approx. 860mm × 715mm × 1030mm
Package Weight Approx. 95.5kg
