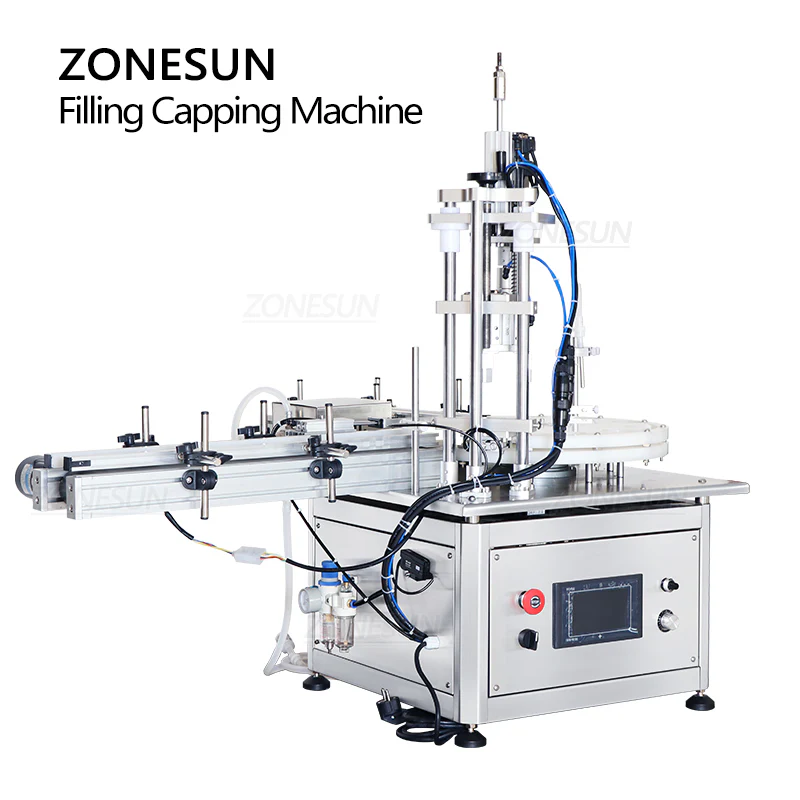

ZONESUN ZS-AFC1S Magnetic Pump Liquid Filling & Capping Machine – Compact Design
The ZONESUN ZS-AFC1S is a compact, high-precision liquid filling and capping machine equipped with a 316 stainless steel magnetic pump. Engineered for small-volume applications, it delivers consistent filling accuracy and can be integrated with a labeling unit for full automation. Its space-saving design makes it ideal for tabletop or limited-space production environments. Perfect for bottling beverages, essential oils, milk, and other low-viscosity liquids.
Machine Specifications – Model ZS-AFC1S
Parameter Specification
Machine Model ZS-AFC1S
Voltage 110V / 220V
Pump Type 316 Stainless Steel Magnetic Pump
Power Consumption 1200W
Bottle Diameter 10–40 mm
Filling Range ≤100 ml
Bottle Height ≤120 mm (Customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size Customizable
Working Speed 20–50 bottles/min (varies by liquid and bottle size)
Conveyor Belt Size Approx. 640 × 80 mm
Machine Dimensions Approx. 580 × 580 × 1080 mm
Machine Weight Approx. 75 kg
Package Dimensions Approx. 720 × 620 × 1090 mm
Package Weight Approx. 97 kg
The ZONESUN ZS-AFC1S is a compact, high-precision liquid filling and capping machine equipped with a 316 stainless steel magnetic pump. Engineered for small-volume applications, it delivers consistent filling accuracy and can be integrated with a labeling unit for full automation. Its space-saving design makes it ideal for tabletop or limited-space production environments. Perfect for bottling beverages, essential oils, milk, and other low-viscosity liquids.
Machine Specifications – Model ZS-AFC1S
Parameter Specification
Machine Model ZS-AFC1S
Voltage 110V / 220V
Pump Type 316 Stainless Steel Magnetic Pump
Power Consumption 1200W
Bottle Diameter 10–40 mm
Filling Range ≤100 ml
Bottle Height ≤120 mm (Customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size Customizable
Working Speed 20–50 bottles/min (varies by liquid and bottle size)
Conveyor Belt Size Approx. 640 × 80 mm
Machine Dimensions Approx. 580 × 580 × 1080 mm
Machine Weight Approx. 75 kg
Package Dimensions Approx. 720 × 620 × 1090 mm
Package Weight Approx. 97 kg
Original: $4,900.00
-70%$4,900.00
$1,470.00Description
The ZONESUN ZS-AFC1S is a compact, high-precision liquid filling and capping machine equipped with a 316 stainless steel magnetic pump. Engineered for small-volume applications, it delivers consistent filling accuracy and can be integrated with a labeling unit for full automation. Its space-saving design makes it ideal for tabletop or limited-space production environments. Perfect for bottling beverages, essential oils, milk, and other low-viscosity liquids.
Machine Specifications – Model ZS-AFC1S
Parameter Specification
Machine Model ZS-AFC1S
Voltage 110V / 220V
Pump Type 316 Stainless Steel Magnetic Pump
Power Consumption 1200W
Bottle Diameter 10–40 mm
Filling Range ≤100 ml
Bottle Height ≤120 mm (Customizable for taller bottles)
Cap Diameter Customizable
Filling Nozzle Size Customizable
Working Speed 20–50 bottles/min (varies by liquid and bottle size)
Conveyor Belt Size Approx. 640 × 80 mm
Machine Dimensions Approx. 580 × 580 × 1080 mm
Machine Weight Approx. 75 kg
Package Dimensions Approx. 720 × 620 × 1090 mm
Package Weight Approx. 97 kg
