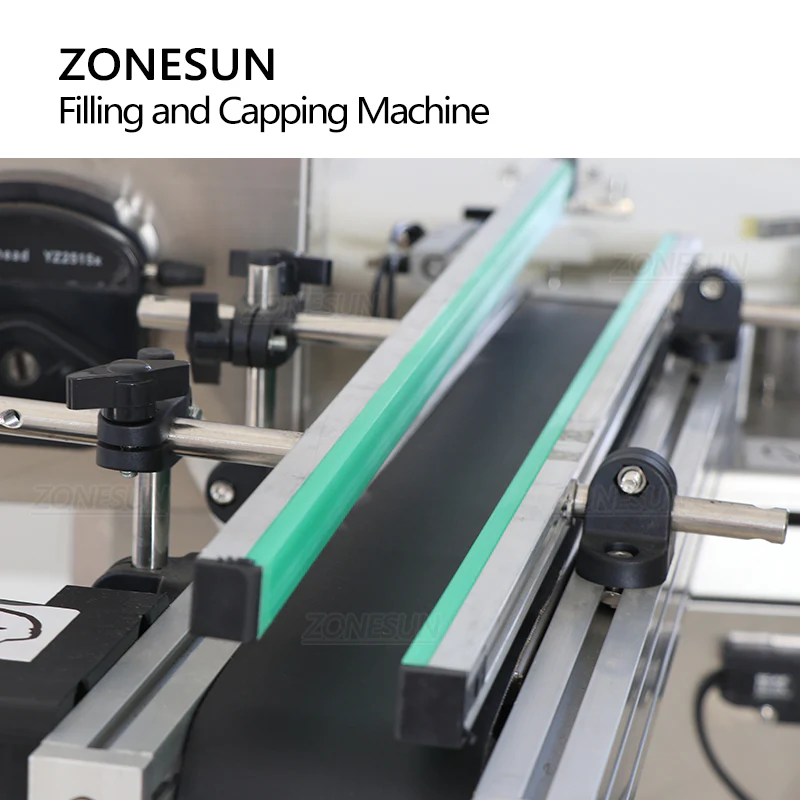

ZONESUN ZS‑AFC1T Automatic Liquid Filling and Capping Machine
The ZONESUN ZS‑AFC1T Automatic Rotary Liquid Filling and Capping Machine is compact, efficient, and ideal for small‑bottle production. Equipped with a peristaltic pump and a space‑saving conveyor belt, it can be integrated with a tabletop labeling machine for a fully automated line. Designed to handle liquids such as perfume, essential oils, and ink, it delivers precise filling up to 100 ml with speeds of 20–50 bottles per minute. Widely used in cosmetics and daily chemical industries, its customizable bottle and cap options make it adaptable to varied production needs.
ZS‑AFC1T — Specifications
Parameter Details
Machine Model ZS‑AFC1T
Voltage 220 V / 110 V, 50‑60 Hz
Machine Pump Peristaltic pump
Machine Power 500 W
Bottle Diameter 10 – 40 mm
Filling Range ≤ 100 ml
Bottle Height ≤ 120 mm (customizable for higher bottles)
Cap Diameter Customizable
Size of Filling Nozzle OD 6 mm
Working Speed Approx. 20 – 50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80 mm
Machine Size Approx. 580 × 580 × 900 mm
Machine Weight Approx. 76.5 kg
Package Size Approx. 800 × 710 × 980 mm
Package Weight Approx. 98.5 kg
The ZONESUN ZS‑AFC1T Automatic Rotary Liquid Filling and Capping Machine is compact, efficient, and ideal for small‑bottle production. Equipped with a peristaltic pump and a space‑saving conveyor belt, it can be integrated with a tabletop labeling machine for a fully automated line. Designed to handle liquids such as perfume, essential oils, and ink, it delivers precise filling up to 100 ml with speeds of 20–50 bottles per minute. Widely used in cosmetics and daily chemical industries, its customizable bottle and cap options make it adaptable to varied production needs.
ZS‑AFC1T — Specifications
Parameter Details
Machine Model ZS‑AFC1T
Voltage 220 V / 110 V, 50‑60 Hz
Machine Pump Peristaltic pump
Machine Power 500 W
Bottle Diameter 10 – 40 mm
Filling Range ≤ 100 ml
Bottle Height ≤ 120 mm (customizable for higher bottles)
Cap Diameter Customizable
Size of Filling Nozzle OD 6 mm
Working Speed Approx. 20 – 50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80 mm
Machine Size Approx. 580 × 580 × 900 mm
Machine Weight Approx. 76.5 kg
Package Size Approx. 800 × 710 × 980 mm
Package Weight Approx. 98.5 kg
Original: $4,699.79
-70%$4,699.79
$1,409.94Description
The ZONESUN ZS‑AFC1T Automatic Rotary Liquid Filling and Capping Machine is compact, efficient, and ideal for small‑bottle production. Equipped with a peristaltic pump and a space‑saving conveyor belt, it can be integrated with a tabletop labeling machine for a fully automated line. Designed to handle liquids such as perfume, essential oils, and ink, it delivers precise filling up to 100 ml with speeds of 20–50 bottles per minute. Widely used in cosmetics and daily chemical industries, its customizable bottle and cap options make it adaptable to varied production needs.
ZS‑AFC1T — Specifications
Parameter Details
Machine Model ZS‑AFC1T
Voltage 220 V / 110 V, 50‑60 Hz
Machine Pump Peristaltic pump
Machine Power 500 W
Bottle Diameter 10 – 40 mm
Filling Range ≤ 100 ml
Bottle Height ≤ 120 mm (customizable for higher bottles)
Cap Diameter Customizable
Size of Filling Nozzle OD 6 mm
Working Speed Approx. 20 – 50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80 mm
Machine Size Approx. 580 × 580 × 900 mm
Machine Weight Approx. 76.5 kg
Package Size Approx. 800 × 710 × 980 mm
Package Weight Approx. 98.5 kg
