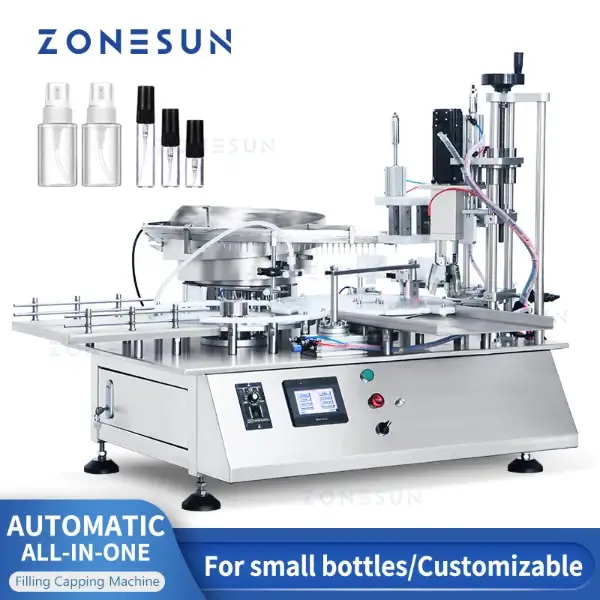

ZONESUN ZS-AFC7 Liquid Filling and Capping Machine for Small Bottles

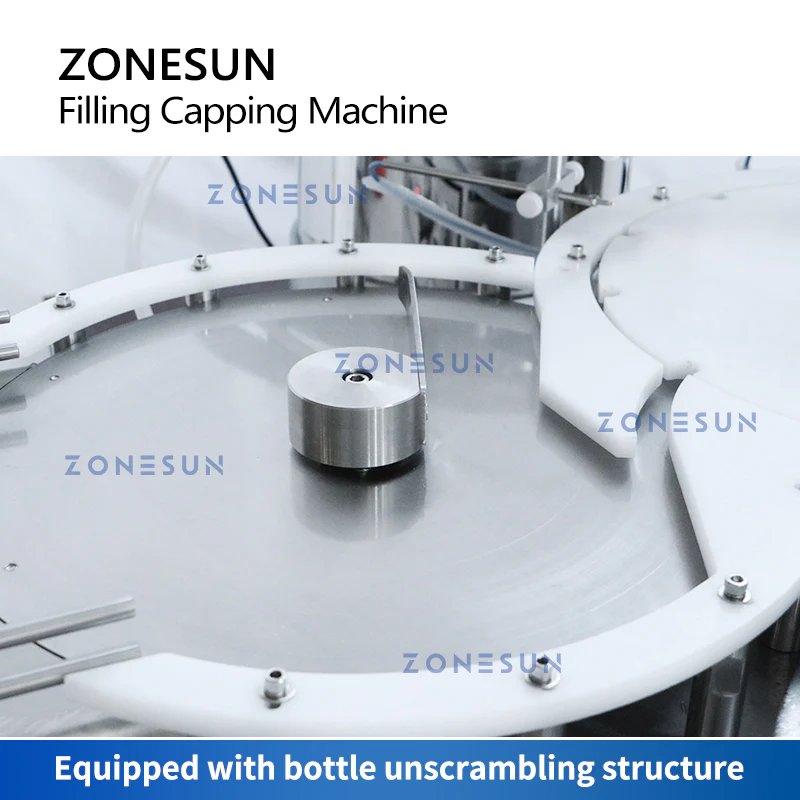

The ZONESUN ZS-AFC7 is a compact and efficient filling and capping machine designed for small bottles such as eyedrop containers, essential oil vials, and perfume samples. It integrates bottle sorting, liquid filling, cap feeding, and cap tightening into one streamlined process. Equipped with a magnetic pump and vibratory bowl sorter, it delivers precise filling from 10–200 ml at speeds up to 30 bottles per minute. Ideal for cosmetic, pharmaceutical, and fragrance industries, this machine saves labor, reduces space requirements, and enhances production efficiency.
ZS-AFC7 Filling and Capping Machine – Technical Specifications
Item Specification
Machine Model ZS-AFC7
Machine Power 1000W
Voltage 110V / 220V, 50–60Hz
Filling Pump Type Magnetic Pump
Recommended Filling Range 10–200 ml
Pump Maximum Flow Rate 4 L/min
Suitable Bottle Height Approx. 10–100 mm
Suitable Bottle Diameter Approx. 15–100 mm
Suitable Cap Size Φ10–50 mm
Working Speed Approx. 30 bottles/min
Machine Size Approx. 980 × 820 × 960 mm
Vibratory Bowl Sorter Size Approx. 970 × 620 × 620 mm
Machine Weight Approx. 175 kg
Package Size (Machine) Approx. 1060 × 750 × 1060 mm
Package Size (Sorter) Approx. 750 × 550 × 590 mm
Package Weight (Sorter) Approx. 90 kg
The ZONESUN ZS-AFC7 is a compact and efficient filling and capping machine designed for small bottles such as eyedrop containers, essential oil vials, and perfume samples. It integrates bottle sorting, liquid filling, cap feeding, and cap tightening into one streamlined process. Equipped with a magnetic pump and vibratory bowl sorter, it delivers precise filling from 10–200 ml at speeds up to 30 bottles per minute. Ideal for cosmetic, pharmaceutical, and fragrance industries, this machine saves labor, reduces space requirements, and enhances production efficiency.
ZS-AFC7 Filling and Capping Machine – Technical Specifications
Item Specification
Machine Model ZS-AFC7
Machine Power 1000W
Voltage 110V / 220V, 50–60Hz
Filling Pump Type Magnetic Pump
Recommended Filling Range 10–200 ml
Pump Maximum Flow Rate 4 L/min
Suitable Bottle Height Approx. 10–100 mm
Suitable Bottle Diameter Approx. 15–100 mm
Suitable Cap Size Φ10–50 mm
Working Speed Approx. 30 bottles/min
Machine Size Approx. 980 × 820 × 960 mm
Vibratory Bowl Sorter Size Approx. 970 × 620 × 620 mm
Machine Weight Approx. 175 kg
Package Size (Machine) Approx. 1060 × 750 × 1060 mm
Package Size (Sorter) Approx. 750 × 550 × 590 mm
Package Weight (Sorter) Approx. 90 kg
Original: $8,300.00
-70%$8,300.00
$2,490.00Description
The ZONESUN ZS-AFC7 is a compact and efficient filling and capping machine designed for small bottles such as eyedrop containers, essential oil vials, and perfume samples. It integrates bottle sorting, liquid filling, cap feeding, and cap tightening into one streamlined process. Equipped with a magnetic pump and vibratory bowl sorter, it delivers precise filling from 10–200 ml at speeds up to 30 bottles per minute. Ideal for cosmetic, pharmaceutical, and fragrance industries, this machine saves labor, reduces space requirements, and enhances production efficiency.
ZS-AFC7 Filling and Capping Machine – Technical Specifications
Item Specification
Machine Model ZS-AFC7
Machine Power 1000W
Voltage 110V / 220V, 50–60Hz
Filling Pump Type Magnetic Pump
Recommended Filling Range 10–200 ml
Pump Maximum Flow Rate 4 L/min
Suitable Bottle Height Approx. 10–100 mm
Suitable Bottle Diameter Approx. 15–100 mm
Suitable Cap Size Φ10–50 mm
Working Speed Approx. 30 bottles/min
Machine Size Approx. 980 × 820 × 960 mm
Vibratory Bowl Sorter Size Approx. 970 × 620 × 620 mm
Machine Weight Approx. 175 kg
Package Size (Machine) Approx. 1060 × 750 × 1060 mm
Package Size (Sorter) Approx. 750 × 550 × 590 mm
Package Weight (Sorter) Approx. 90 kg
