ZONESUN ZS-DPPA Automatic Liquid & Paste Blister Sealing Machine
The ZONESUN ZS-DPPA Automatic Blister Sealing Machine is a compact, high-efficiency solution for packaging liquids, pastes, and irregular materials. It integrates aluminum/plastic molding, thermoforming, material filling, and heat sealing into one streamlined process. With a high degree of automation, it significantly reduces labor and packaging costs while maintaining a clean, low-noise working environment. Available in two models—DPP-A and DPP-B—this machine supports a wide range of pharmaceutical formats including pills, capsules, tablets, and shaped products. Ideal for pharmaceutical, nutraceutical, and health product manufacturers.
Parameter DPP-A DPP-B
Cutting Frequency 10–50 times/min 10–50 times/min
Capacity 600–3000 pcs/hour 3000–14000 pcs/hour
Max Shaping Area & Depth (mm) 750 × 110 × 30 110 × 120 × 26 (Standard depth: 14 mm)
Shaping Station Size (mm) 880 × 50 110 × 50
Sealing Station Size (mm) 880 × 50 55–57 (Customizable)
Air Pressure 0.14–0.7 MPa
Power Supply 380V / 220V, 50Hz, 1.8 kW 380V, 50Hz, 3.8 kW
Main Motor Power 0.75 kW 1.5 kW

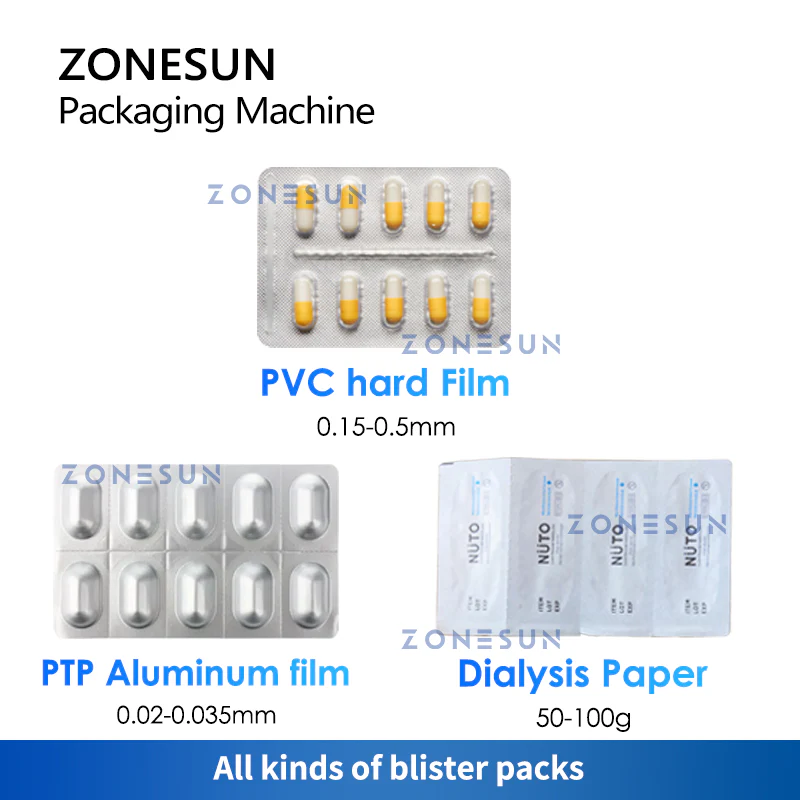

PVC Hard Film (mm) 0.15–0.5 × 110 0.15–0.5 × 120
PTP Aluminum Foil (mm) 0.02–0.035 × 90 0.02–0.035 × 120
Dialysis Paper (mm) 0.02–0.035 × 90 0.02–0.035 × 120
Machine Dimensions (mm) 1350 × 500 × 1050 2400 × 650 × 1400
Machine Weight (kg) 380 750
Scope of Application φ1.5+ pills, soft capsules, compatible with 00–54 capsules, φ5.5–12 tablets, shaped tablets, sugar-coated tablets
Loading Range 2–9999 pieces (adjustable)
The ZONESUN ZS-DPPA Automatic Blister Sealing Machine is a compact, high-efficiency solution for packaging liquids, pastes, and irregular materials. It integrates aluminum/plastic molding, thermoforming, material filling, and heat sealing into one streamlined process. With a high degree of automation, it significantly reduces labor and packaging costs while maintaining a clean, low-noise working environment. Available in two models—DPP-A and DPP-B—this machine supports a wide range of pharmaceutical formats including pills, capsules, tablets, and shaped products. Ideal for pharmaceutical, nutraceutical, and health product manufacturers.
Parameter DPP-A DPP-B
Cutting Frequency 10–50 times/min 10–50 times/min
Capacity 600–3000 pcs/hour 3000–14000 pcs/hour
Max Shaping Area & Depth (mm) 750 × 110 × 30 110 × 120 × 26 (Standard depth: 14 mm)
Shaping Station Size (mm) 880 × 50 110 × 50
Sealing Station Size (mm) 880 × 50 55–57 (Customizable)
Air Pressure 0.14–0.7 MPa
Power Supply 380V / 220V, 50Hz, 1.8 kW 380V, 50Hz, 3.8 kW
Main Motor Power 0.75 kW 1.5 kW
PVC Hard Film (mm) 0.15–0.5 × 110 0.15–0.5 × 120
PTP Aluminum Foil (mm) 0.02–0.035 × 90 0.02–0.035 × 120
Dialysis Paper (mm) 0.02–0.035 × 90 0.02–0.035 × 120
Machine Dimensions (mm) 1350 × 500 × 1050 2400 × 650 × 1400
Machine Weight (kg) 380 750
Scope of Application φ1.5+ pills, soft capsules, compatible with 00–54 capsules, φ5.5–12 tablets, shaped tablets, sugar-coated tablets
Loading Range 2–9999 pieces (adjustable)
Original: $5,499.00
-70%$5,499.00
$1,649.70Description
The ZONESUN ZS-DPPA Automatic Blister Sealing Machine is a compact, high-efficiency solution for packaging liquids, pastes, and irregular materials. It integrates aluminum/plastic molding, thermoforming, material filling, and heat sealing into one streamlined process. With a high degree of automation, it significantly reduces labor and packaging costs while maintaining a clean, low-noise working environment. Available in two models—DPP-A and DPP-B—this machine supports a wide range of pharmaceutical formats including pills, capsules, tablets, and shaped products. Ideal for pharmaceutical, nutraceutical, and health product manufacturers.
Parameter DPP-A DPP-B
Cutting Frequency 10–50 times/min 10–50 times/min
Capacity 600–3000 pcs/hour 3000–14000 pcs/hour
Max Shaping Area & Depth (mm) 750 × 110 × 30 110 × 120 × 26 (Standard depth: 14 mm)
Shaping Station Size (mm) 880 × 50 110 × 50
Sealing Station Size (mm) 880 × 50 55–57 (Customizable)
Air Pressure 0.14–0.7 MPa
Power Supply 380V / 220V, 50Hz, 1.8 kW 380V, 50Hz, 3.8 kW
Main Motor Power 0.75 kW 1.5 kW
PVC Hard Film (mm) 0.15–0.5 × 110 0.15–0.5 × 120
PTP Aluminum Foil (mm) 0.02–0.035 × 90 0.02–0.035 × 120
Dialysis Paper (mm) 0.02–0.035 × 90 0.02–0.035 × 120
Machine Dimensions (mm) 1350 × 500 × 1050 2400 × 650 × 1400
Machine Weight (kg) 380 750
Scope of Application φ1.5+ pills, soft capsules, compatible with 00–54 capsules, φ5.5–12 tablets, shaped tablets, sugar-coated tablets
Loading Range 2–9999 pieces (adjustable)
