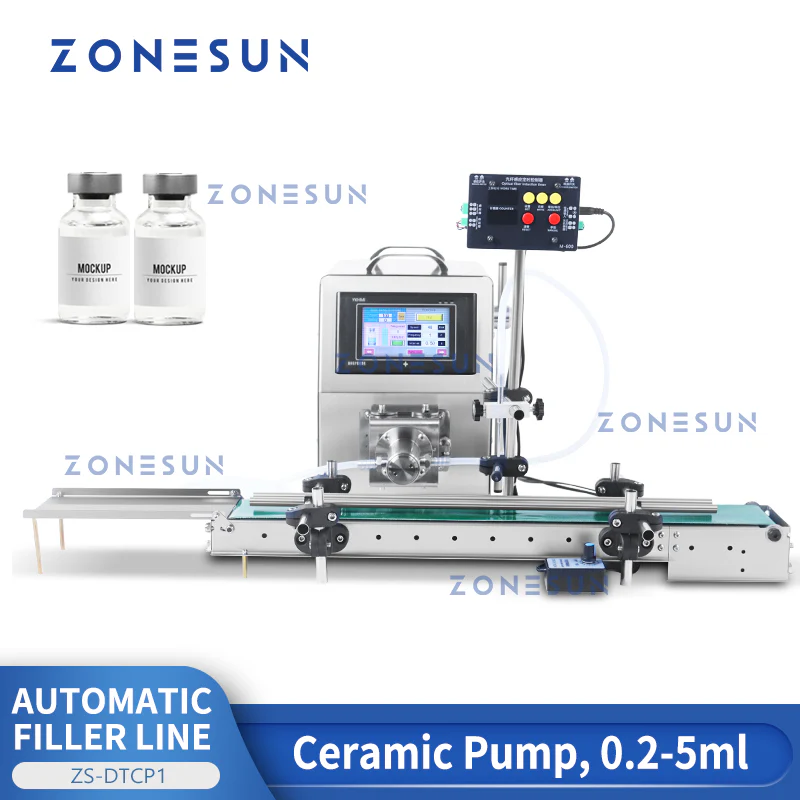

The ZONESUN ZS-DTCP1 is a compact liquid filling solution designed for precise low-dosage applications. It combines a high-accuracy ceramic pump filler with a smooth-speed conveyor system, making it ideal for cosmetics, essential oils, and daily chemical products. The ceramic pump ensures consistent output between 0.2–2.8ml per cycle, with a recommended filling range up to 5ml and an error margin of just ±1%. The anti-drip nozzle and memory function enhance operational efficiency, while the conveyor supports stable bottle transport at 10cm/s. This integrated setup is perfect for small-scale production lines requiring precision and reliability.

PARAMETER

• Model：ZS-CPYT1S

• Voltage：110V / 220V

• Power：120W

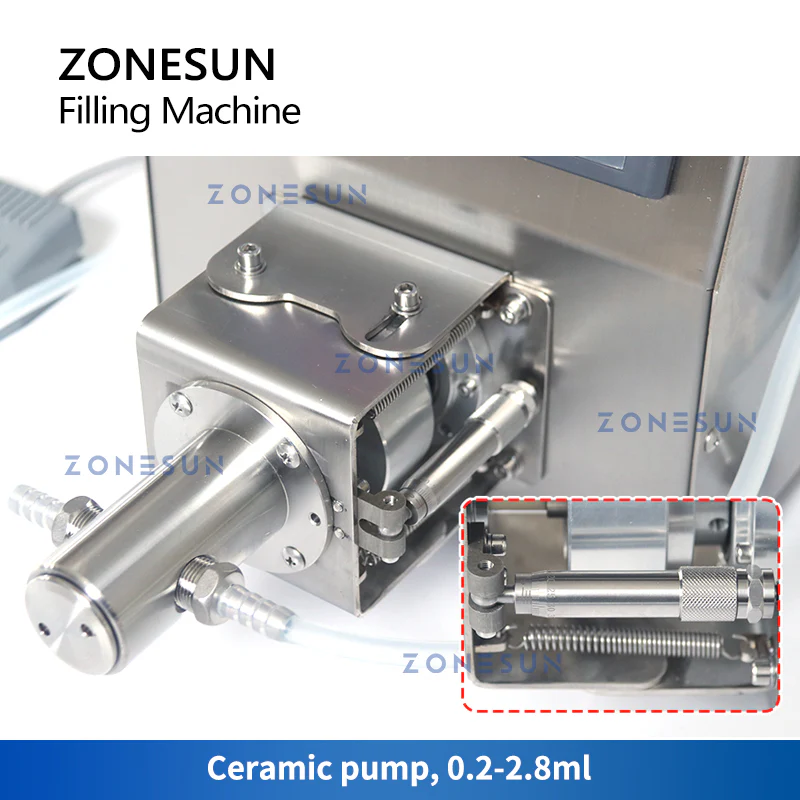

• Pump Type：Ceramic Pump

• Pump Output (per cycle)：0.2–2.8ml

• Recommended Filling Range：0.2–5ml

• Margin of Error：±1%

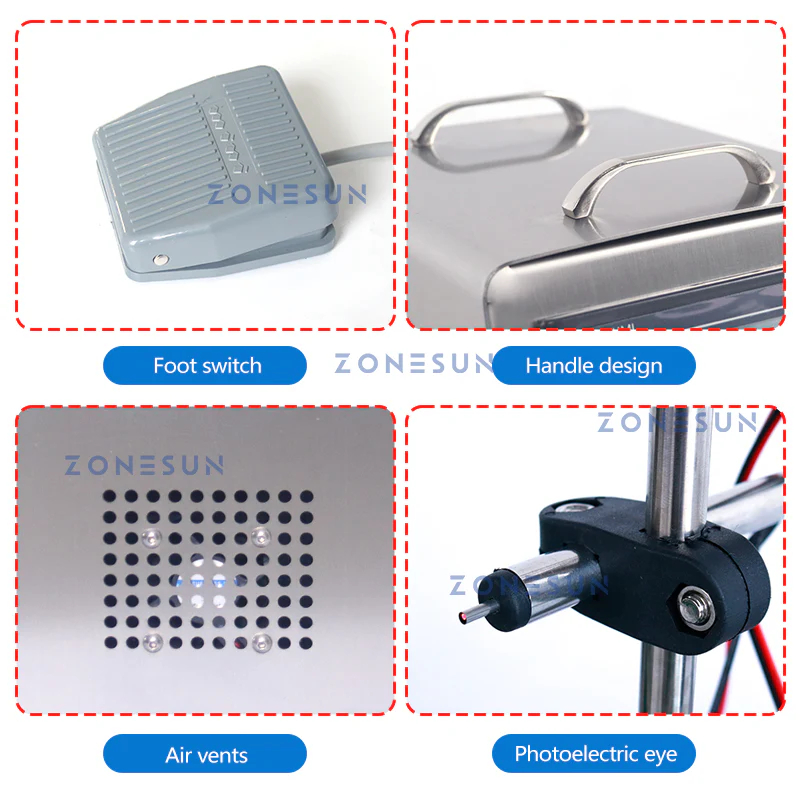

• Nozzle：2mm, anti-dripping

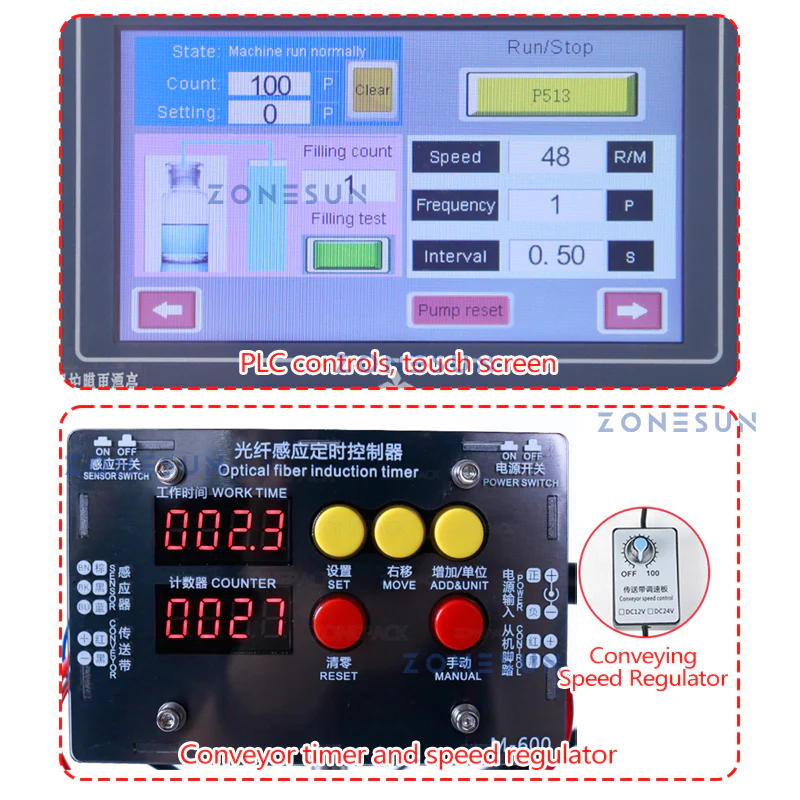

• Memory Function：Yes (√)

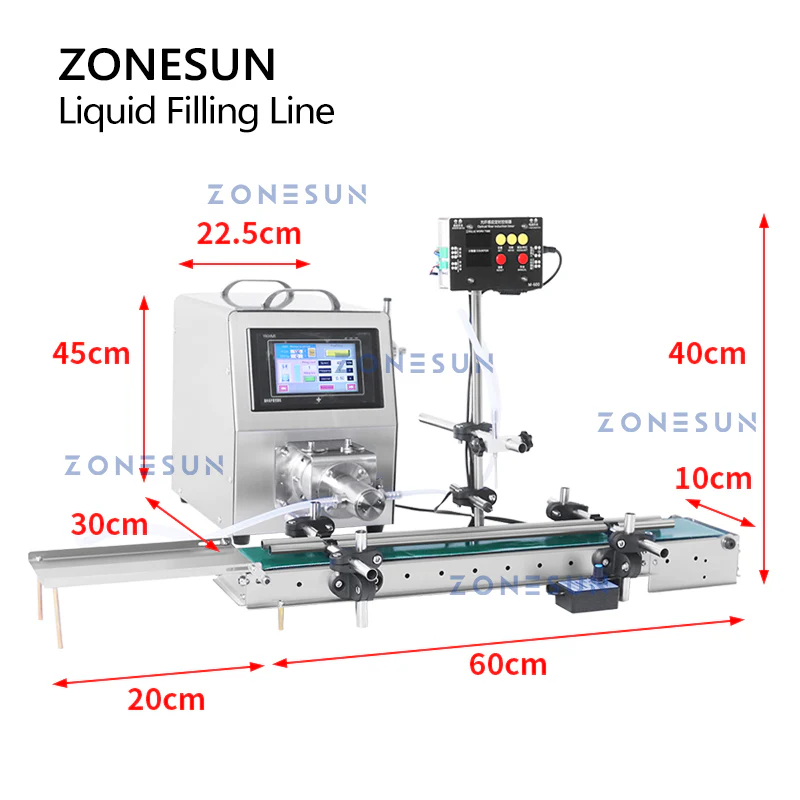

• Machine Size：22.5 × 45 × 30cm

• Weight：10kg



• Model：ZS-CBG600

• Voltage：110V / 220V

• Power Supply：15W24V / 75W

• Conveying Speed：10cm/s

• Conveyor Belt Size：60 × 10cm

• Collecting Tray Size：20 × 10cm

• Bracket Height：40cm

• Net Weight：2.9kg

• Product Size：80 × 10 × 40cm

• Package Size：65 × 15 × 10cm
