ZONESUN ZS‑DTDP4G 4‑Nozzle Automatic Liquid Filling Machine
DESCRIPTION

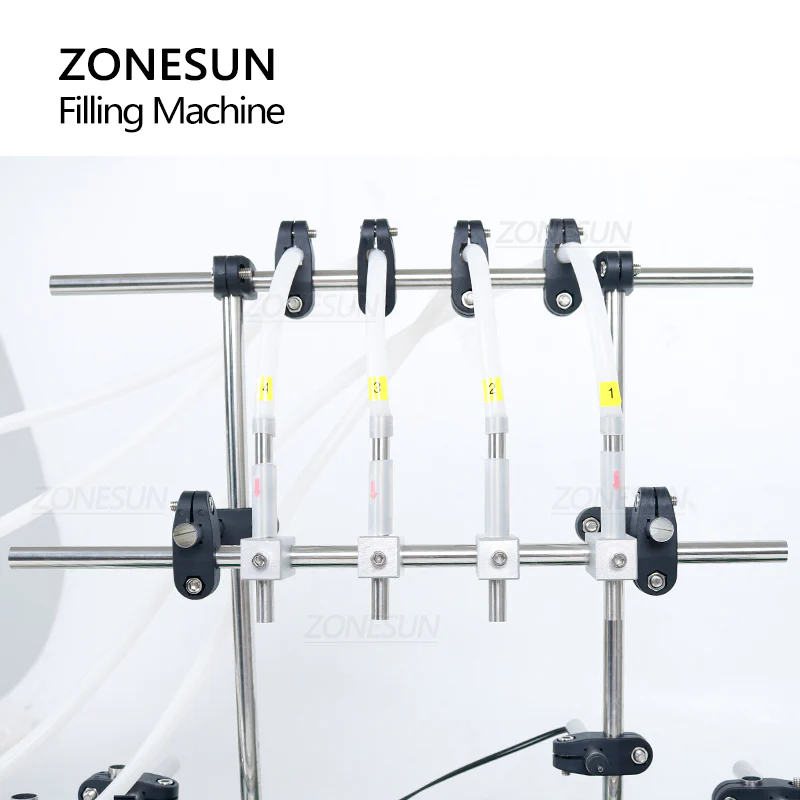

The ZONESUN ZS‑DTDP4G is an automatic liquid filling machine equipped with four diaphragm pumps for precise, efficient dispensing of low‑viscosity liquids such as water, fresh juice, and other beverages, as well as products in cosmetics and daily chemical industries. Integrated with a conveyor belt, it supports continuous, automated operation while maintaining a compact footprint ideal for small‑scale production lines. With adjustable filling volumes, high accuracy, and stainless steel contact parts, it’s a dependable choice for streamlining your bottling process.
Technical Specifications
- Machine Model: ZS-DTDP4G
- Machine Pump: Diaphragm Pump
- Voltage: 220V/110V 50-60Hz
- Power: About 240W
- Filling Range: 10-1000ml
- Max Flow Rate: 4L/min (based on 100ml water)
- Filling Speed: About 40-80 bottles/min (based on 100ml water)
- Filling Accuracy: ±1%
- Applicable Bottle Height: <250mm
- Applicable Bottle Diameter: 25mm-80mm
- Bottleneck Diameter: >15mm
- Filling Nozzle Diameter: OD 9mm
- Size of Conveyor Belt: About 600*100mm (Can choose 1200mm)
- Size of Collecting Tray: About 210*102mm
- Main Machine Size: About 285*145*125mm
- Machine Weight: About 10.5kg
- Package Size: About 390*200*115mm (Main Machine), About 650*160*180mm (Conveyor Belt)
- Package Weight: About 13KG
