ZONESUN ZS-DTGT900M Paste & Liquid Filling Machine with Mixer and Heater

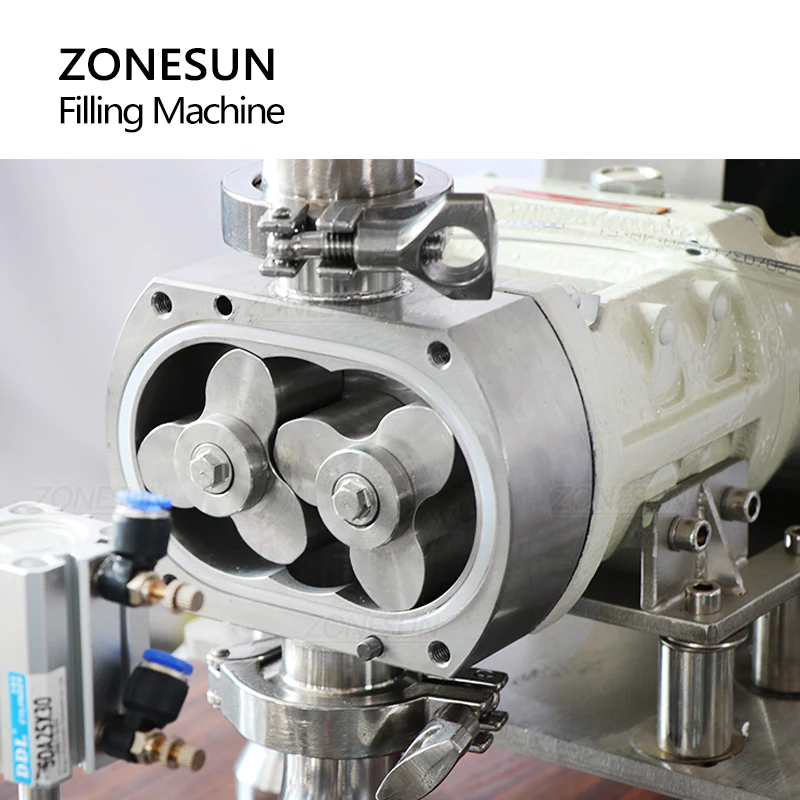

The ZONESUN ZS-DTGT900M is a multifunctional filling machine designed for viscous pastes and fluid liquids such as chocolate, honey, chili paste, and juice. Equipped with a 50L heated hopper and adjustable mixing speed, it ensures consistent temperature and texture during filling. The rotor pump system delivers precise dosing from 50ml to 5000ml with ±1% accuracy. Integrated with a conveyor and compatible with automatic capping and labeling machines, the ZS-DTGT900M supports streamlined, high-efficiency production for food, cosmetics, and chemical industries.
ZS-DTGT900M Filling, Mixing & Heating Machine – Technical Specifications
Parameter Specification
Machine Model ZS-DTGT900M
Power 1500W
Recommended Filling Volume 50–5000ml
Filling Accuracy ±1%
Bottle Opening Size Diameter > 20mm
Mixing Speed 0–100 r/min
Heating Temperature ≤399°C
Hopper Capacity 50L
Conveyor Size 1020 × 140mm
Conveyor Height 490mm above ground
Working Speed 10–60 bottles/min (based on 250ml jam)
Machine Dimensions Approx. 1090 × 700 × 680mm
Machine Weight Approx. 54kg
The ZONESUN ZS-DTGT900M is a multifunctional filling machine designed for viscous pastes and fluid liquids such as chocolate, honey, chili paste, and juice. Equipped with a 50L heated hopper and adjustable mixing speed, it ensures consistent temperature and texture during filling. The rotor pump system delivers precise dosing from 50ml to 5000ml with ±1% accuracy. Integrated with a conveyor and compatible with automatic capping and labeling machines, the ZS-DTGT900M supports streamlined, high-efficiency production for food, cosmetics, and chemical industries.
ZS-DTGT900M Filling, Mixing & Heating Machine – Technical Specifications
Parameter Specification
Machine Model ZS-DTGT900M
Power 1500W
Recommended Filling Volume 50–5000ml
Filling Accuracy ±1%
Bottle Opening Size Diameter > 20mm
Mixing Speed 0–100 r/min
Heating Temperature ≤399°C
Hopper Capacity 50L
Conveyor Size 1020 × 140mm
Conveyor Height 490mm above ground
Working Speed 10–60 bottles/min (based on 250ml jam)
Machine Dimensions Approx. 1090 × 700 × 680mm
Machine Weight Approx. 54kg
Original: $2,960.00
-70%$2,960.00
$888.00Description
The ZONESUN ZS-DTGT900M is a multifunctional filling machine designed for viscous pastes and fluid liquids such as chocolate, honey, chili paste, and juice. Equipped with a 50L heated hopper and adjustable mixing speed, it ensures consistent temperature and texture during filling. The rotor pump system delivers precise dosing from 50ml to 5000ml with ±1% accuracy. Integrated with a conveyor and compatible with automatic capping and labeling machines, the ZS-DTGT900M supports streamlined, high-efficiency production for food, cosmetics, and chemical industries.
ZS-DTGT900M Filling, Mixing & Heating Machine – Technical Specifications
Parameter Specification
Machine Model ZS-DTGT900M
Power 1500W
Recommended Filling Volume 50–5000ml
Filling Accuracy ±1%
Bottle Opening Size Diameter > 20mm
Mixing Speed 0–100 r/min
Heating Temperature ≤399°C
Hopper Capacity 50L
Conveyor Size 1020 × 140mm
Conveyor Height 490mm above ground
Working Speed 10–60 bottles/min (based on 250ml jam)
Machine Dimensions Approx. 1090 × 700 × 680mm
Machine Weight Approx. 54kg
