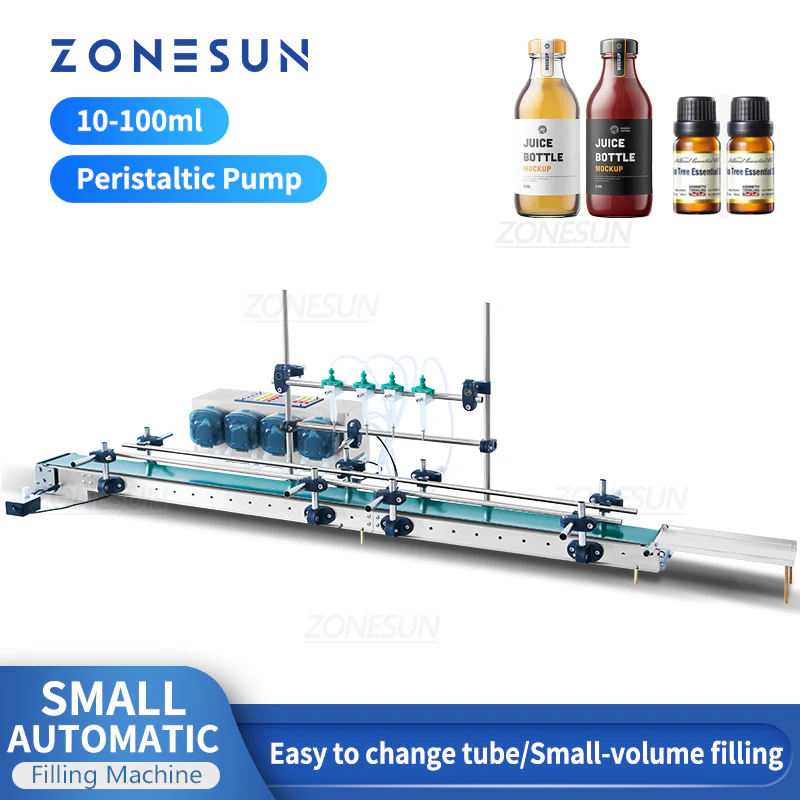

ZONESUN ZS‑DTPP100C4 4‑Nozzle Peristaltic Pump Liquid Filling Machine

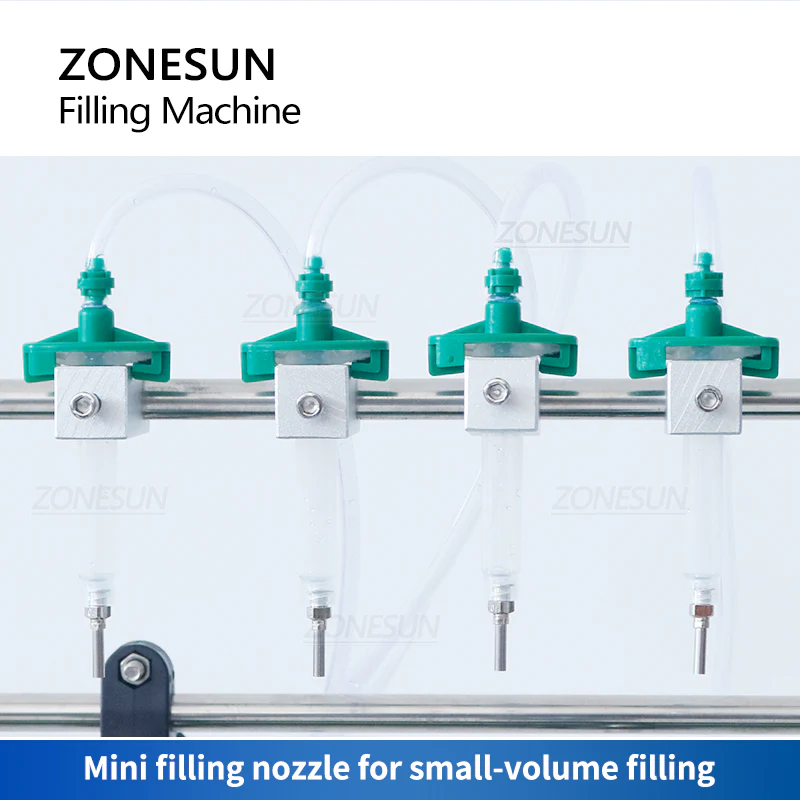

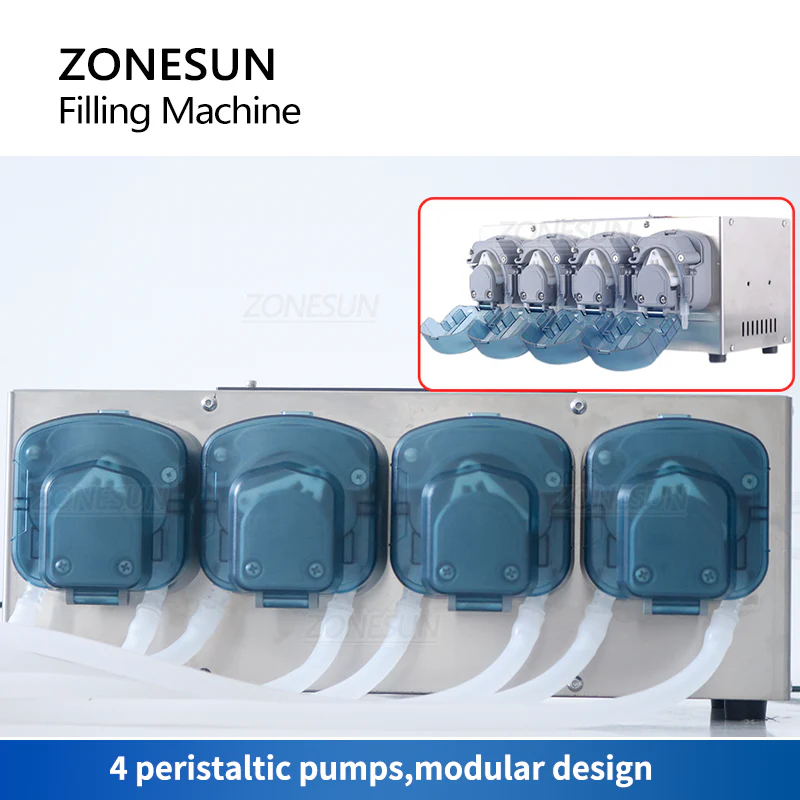

The ZONESUN ZS‑DTPP100C4 is a compact liquid filling solution designed for efficiency and precision. Featuring four modular peristaltic pumps, it is ideal for small‑volume production lines across food, cosmetics, pharmaceuticals, and more. Adjustable filling nozzles accommodate different bottle heights, ensuring clean, consistent results with every cycle.
Machine Specifications — Model ZS‑DTPP100C4
Parameter Details
Machine Model ZS‑DTPP100C4
Voltage 220V / 110V, 50–60 Hz
Power 75 W × 4
Pump Type Peristaltic Pump
Recommended Filling Range 10–100 ml
Max Flow Rate 700 ml/min × 4 (based on water)
Filling Speed Approx. 50–60 bottles/min (50 ml per bottle)
Min. Bottleneck Diameter Inner Diameter 8 mm
Suitable Nozzle Diameter Outer Diameter 3.3 mm
Max Liquid Temperature 100 °C
Collecting Tray Size (L×W) 210 mm × 100 mm
Liquid Inlet Pipe 10 mm × 1 mm (OD)
Pipe in Pump 4.8 mm (ID) × 8 mm (OD)
Conveyor Size (L×W) 1200 mm × 100 mm
Max Conveyor Load 6 kg
Package Size Machine: 51 × 34 × 21 cm<br>Conveyor: 52 × 21 × 12 cm
Package Weight Machine: 5.6 kg<br>Conveyor: 5.2 kg
The ZONESUN ZS‑DTPP100C4 is a compact liquid filling solution designed for efficiency and precision. Featuring four modular peristaltic pumps, it is ideal for small‑volume production lines across food, cosmetics, pharmaceuticals, and more. Adjustable filling nozzles accommodate different bottle heights, ensuring clean, consistent results with every cycle.
Machine Specifications — Model ZS‑DTPP100C4
Parameter Details
Machine Model ZS‑DTPP100C4
Voltage 220V / 110V, 50–60 Hz
Power 75 W × 4
Pump Type Peristaltic Pump
Recommended Filling Range 10–100 ml
Max Flow Rate 700 ml/min × 4 (based on water)
Filling Speed Approx. 50–60 bottles/min (50 ml per bottle)
Min. Bottleneck Diameter Inner Diameter 8 mm
Suitable Nozzle Diameter Outer Diameter 3.3 mm
Max Liquid Temperature 100 °C
Collecting Tray Size (L×W) 210 mm × 100 mm
Liquid Inlet Pipe 10 mm × 1 mm (OD)
Pipe in Pump 4.8 mm (ID) × 8 mm (OD)
Conveyor Size (L×W) 1200 mm × 100 mm
Max Conveyor Load 6 kg
Package Size Machine: 51 × 34 × 21 cm<br>Conveyor: 52 × 21 × 12 cm
Package Weight Machine: 5.6 kg<br>Conveyor: 5.2 kg
Original: $527.99
-70%$527.99
$158.40Description
The ZONESUN ZS‑DTPP100C4 is a compact liquid filling solution designed for efficiency and precision. Featuring four modular peristaltic pumps, it is ideal for small‑volume production lines across food, cosmetics, pharmaceuticals, and more. Adjustable filling nozzles accommodate different bottle heights, ensuring clean, consistent results with every cycle.
Machine Specifications — Model ZS‑DTPP100C4
Parameter Details
Machine Model ZS‑DTPP100C4
Voltage 220V / 110V, 50–60 Hz
Power 75 W × 4
Pump Type Peristaltic Pump
Recommended Filling Range 10–100 ml
Max Flow Rate 700 ml/min × 4 (based on water)
Filling Speed Approx. 50–60 bottles/min (50 ml per bottle)
Min. Bottleneck Diameter Inner Diameter 8 mm
Suitable Nozzle Diameter Outer Diameter 3.3 mm
Max Liquid Temperature 100 °C
Collecting Tray Size (L×W) 210 mm × 100 mm
Liquid Inlet Pipe 10 mm × 1 mm (OD)
Pipe in Pump 4.8 mm (ID) × 8 mm (OD)
Conveyor Size (L×W) 1200 mm × 100 mm
Max Conveyor Load 6 kg
Package Size Machine: 51 × 34 × 21 cm<br>Conveyor: 52 × 21 × 12 cm
Package Weight Machine: 5.6 kg<br>Conveyor: 5.2 kg
