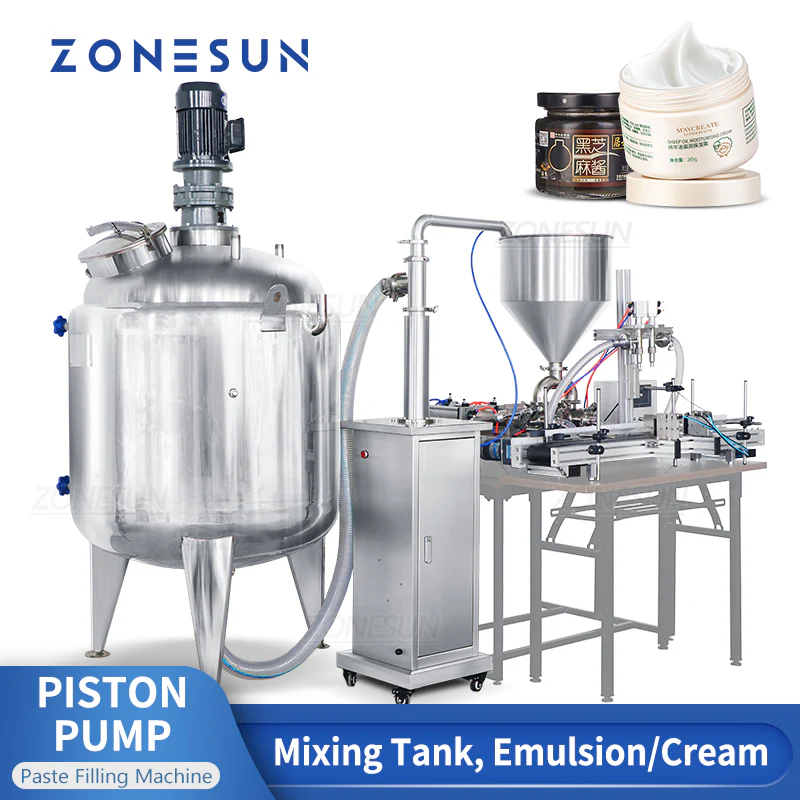

ZONESUN ZS-DTPT2 Paste Filling Machine with Mixing Tank & Feeding Pump

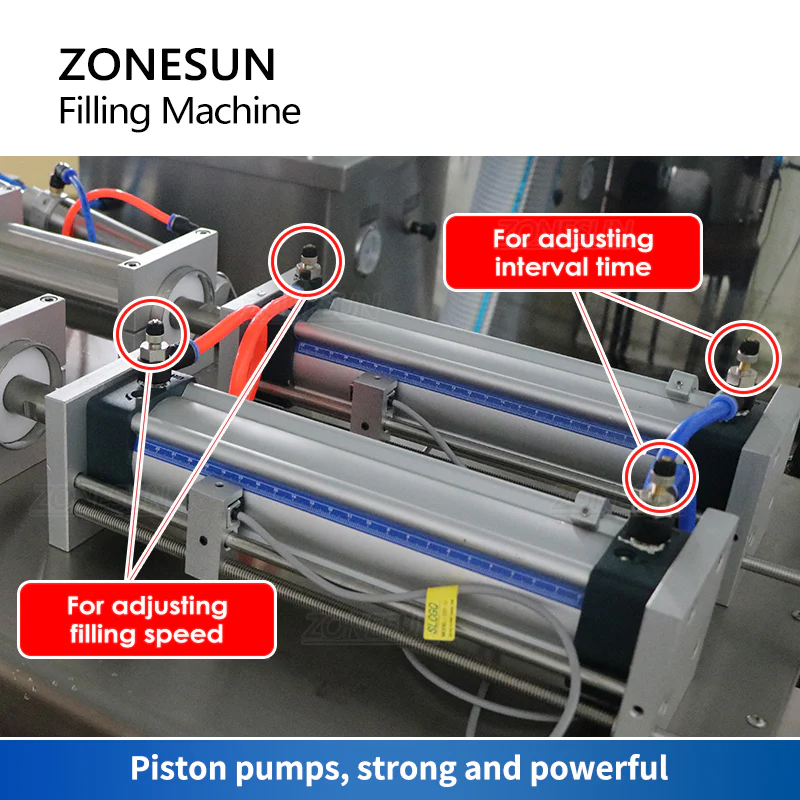

The ZONESUN ZS-DTPT2 is a fully integrated paste filling system combining a pneumatic piston pump filler, a 400L mixing and heating tank, and a high-capacity feeding pump. Designed for viscous materials such as creams, lotions, and sauces, this machine stirs and heats the product to maintain optimal flow during filling. The piston pump ensures high accuracy and strong pressure for thick pastes, while the feeding pump efficiently transfers heated material. Ideal for cosmetics, daily chemical, and food industries, this system supports bottle sizes from 10ml to 5000ml and delivers up to 900 bottles per hour.

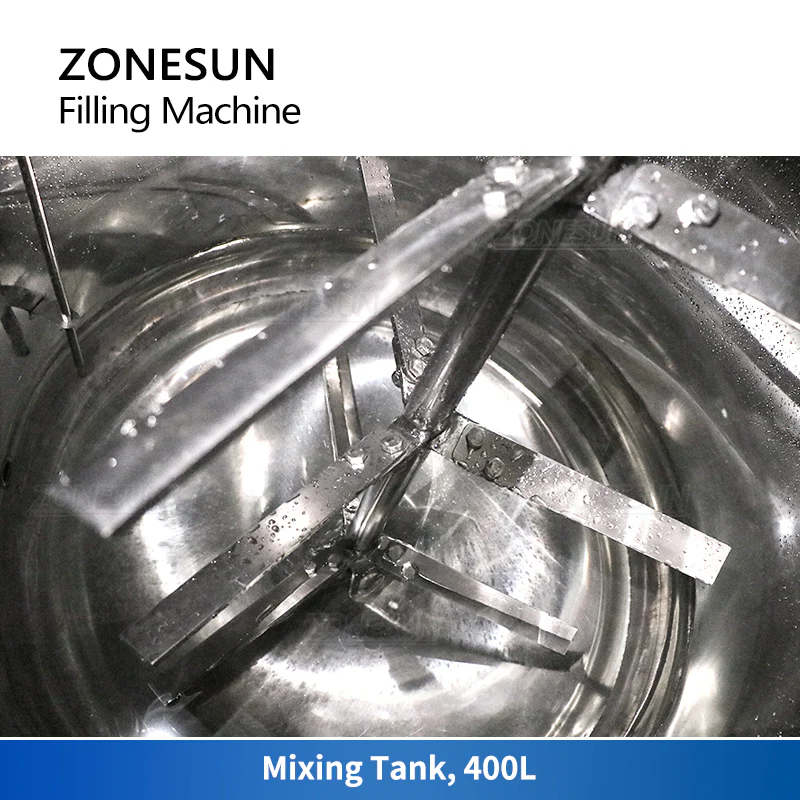

Mixing & Heating Tank Specifications
Parameter Details
Model ZS-MB400LH
Voltage 220V, 50–60Hz
Tank Capacity 400 L (Customizable)
Tank Size Diameter: 800 mm, Height: 1000 mm
Stirring Motor 1.1 kW
Rotating Speed 40 r/min
Heating Power 12 kW
Material 304 Stainless Steel
Package Size Approx. 1300 × 1100 × 2160 mm
Gross Weight Approx. 403 kg

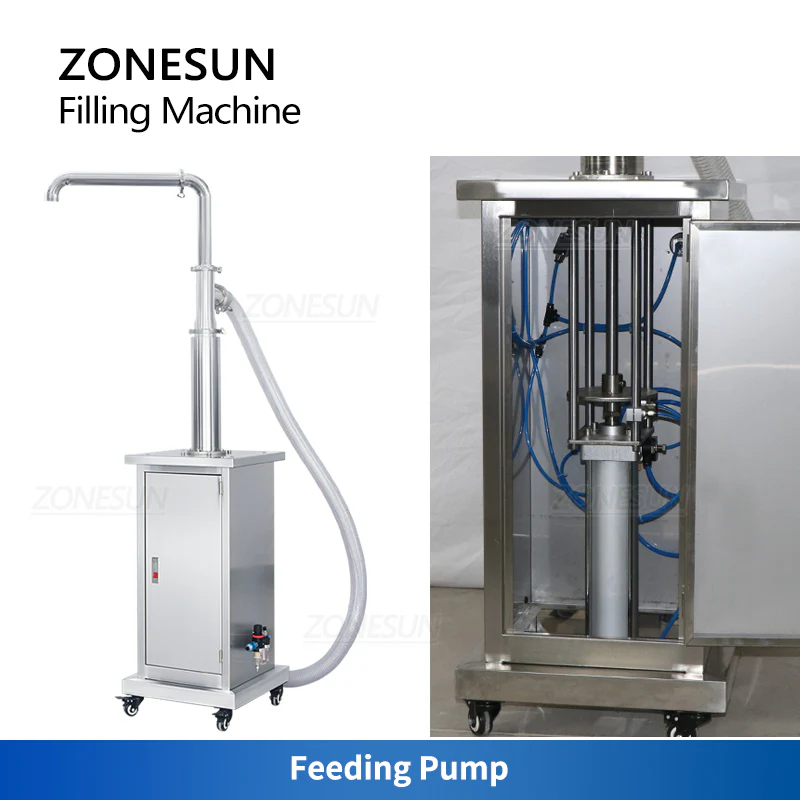

Model ZS-FP1 Feeding Pump Specifications
Contact Material SUS304 & PVC
Pneumatic Brand AIRTAC
Cover Material SUS304
Height 1.5 m
Hose Length 1.5 m
Transfer Speed 110 L/time
Package Size Approx. 500 × 500 × 1800 mm

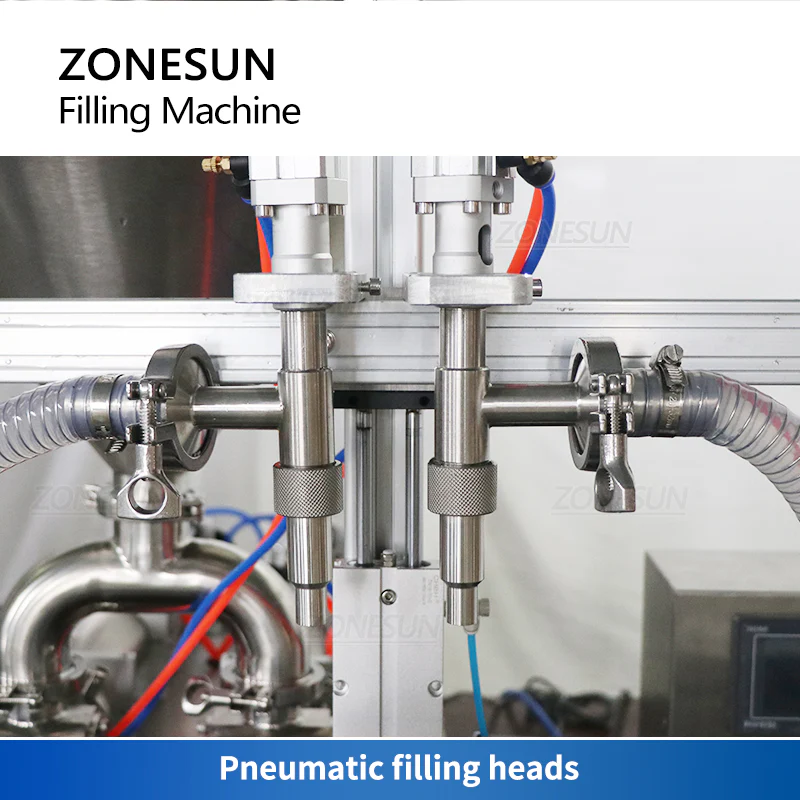

Model ZS-DTGT2 Filling Machine
Voltage 220V / 110V, 50–60Hz
Power 130 W
Filling Range 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 / 50–2500 / 1000–5000 ml
Filling Speed Approx. 800–900 bottles/hour (based on 300ml ketchup)
Applicable Bottle Diameter Approx. 53–100 mm
Filling Accuracy ≤ ±1%
Conveyor Belt Size Approx. 1020 × 140 mm (L × W)
Machine Size Approx. 1020 × 1160 × 870 mm (L × W × H)
The ZONESUN ZS-DTPT2 is a fully integrated paste filling system combining a pneumatic piston pump filler, a 400L mixing and heating tank, and a high-capacity feeding pump. Designed for viscous materials such as creams, lotions, and sauces, this machine stirs and heats the product to maintain optimal flow during filling. The piston pump ensures high accuracy and strong pressure for thick pastes, while the feeding pump efficiently transfers heated material. Ideal for cosmetics, daily chemical, and food industries, this system supports bottle sizes from 10ml to 5000ml and delivers up to 900 bottles per hour.
Mixing & Heating Tank Specifications
Parameter Details
Model ZS-MB400LH
Voltage 220V, 50–60Hz
Tank Capacity 400 L (Customizable)
Tank Size Diameter: 800 mm, Height: 1000 mm
Stirring Motor 1.1 kW
Rotating Speed 40 r/min
Heating Power 12 kW
Material 304 Stainless Steel
Package Size Approx. 1300 × 1100 × 2160 mm
Gross Weight Approx. 403 kg
Model ZS-FP1 Feeding Pump Specifications
Contact Material SUS304 & PVC
Pneumatic Brand AIRTAC
Cover Material SUS304
Height 1.5 m
Hose Length 1.5 m
Transfer Speed 110 L/time
Package Size Approx. 500 × 500 × 1800 mm
Model ZS-DTGT2 Filling Machine
Voltage 220V / 110V, 50–60Hz
Power 130 W
Filling Range 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 / 50–2500 / 1000–5000 ml
Filling Speed Approx. 800–900 bottles/hour (based on 300ml ketchup)
Applicable Bottle Diameter Approx. 53–100 mm
Filling Accuracy ≤ ±1%
Conveyor Belt Size Approx. 1020 × 140 mm (L × W)
Machine Size Approx. 1020 × 1160 × 870 mm (L × W × H)
