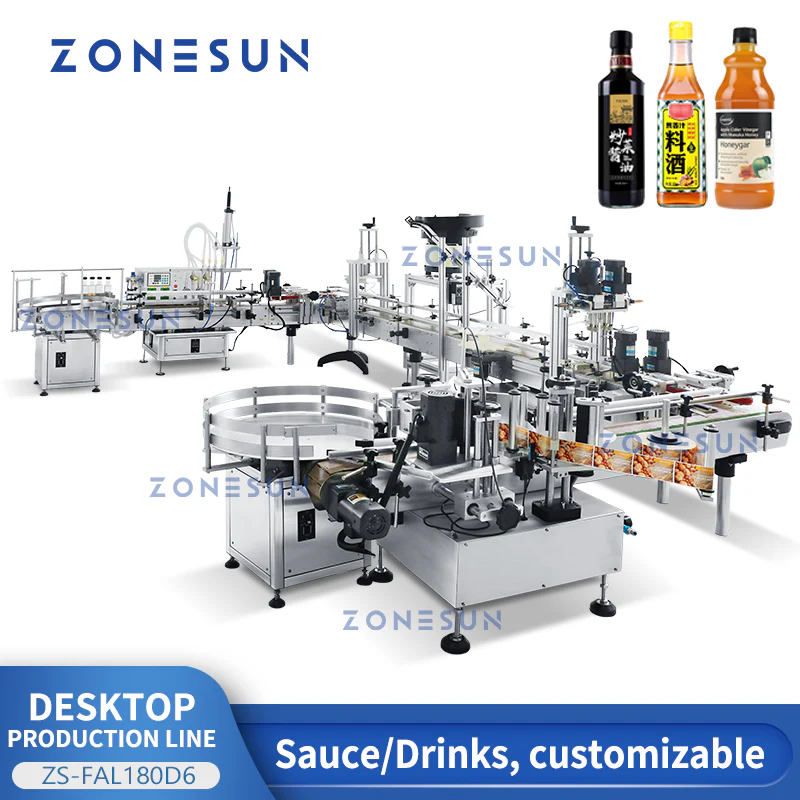

The ZONESUN ZS-FAL180D6 is a fully integrated automatic production line designed for liquid filling, cap feeding, capping, labeling, and bottle collecting. Featuring magnetic pump technology and four precision nozzles, it ensures high-speed, accurate filling across a wide range of bottle sizes. With compact design and modular components—including an unscrambler, vibratory bowl, and label applicator—this line is ideal for food, cosmetics, and daily chemical industries. It maximizes efficiency while minimizing floor space, making it a smart solution for scalable production.

Machine Specification: ZS-LP600Z Unscrambler
Parameter Details
Model ZS-LP600Z
Turntable Diameter 600 mm
Suitable Bottle Diameter 30–80 mm
Suitable Bottle Height ≤ 2500 mm
Working Speed 40–60 bottles/min (varies by size)
Motor Power 40 W
Power Supply 220V / 50–60Hz
Net Weight Approx. 27.5 kg
Package Dimensions Approx. 700 × 740 × 960 mm
Gross Weight Approx. 60 kg

ZS-DTMP4AL Filling Machine – Technical Specifications
Parameter Details
Machine Model ZS-DTMP4AL
Power Supply 110/220V, 50–60Hz, 300W
Max Flow Velocity 6000 ml/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure Requirement 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Filling Volume Range 3–1000 ml
Air Connector Size Ø8 mm
Machine Dimensions Approx. 1100 × 580 × 1110 mm
Package Dimensions Approx. 1140 × 650 × 840 mm
Net Weight / Gross Weight Approx. 74 kg / 90 kg

Vibratory Bowl – Technical Specifications
Parameter Details
Machine Power 110/220V, 50–60Hz
Material Stainless Steel
Suitable Cap Diameter Customizable
Working Speed Customizable
Machine Size Customizable
ZS-XG1870V Capping Machine – Technical Specifications
Parameter Details
Model ZS-XG1870V
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 2130 × 1090 × 1040 mm
Package Dimensions Approx. 1160 × 610 × 1140 mm
Package Weight Approx. 97.5 kg
Conveyor Length 1117 mm
Air Compressor Connector Ø8 mm

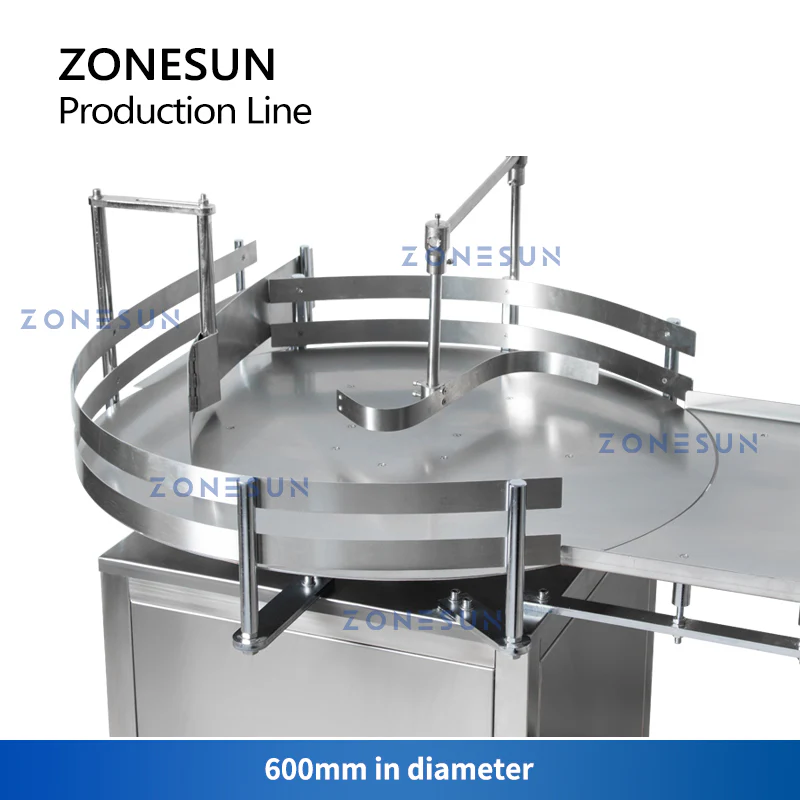

UNSCRAMBLING

 600mm in diameter, adjustable speed

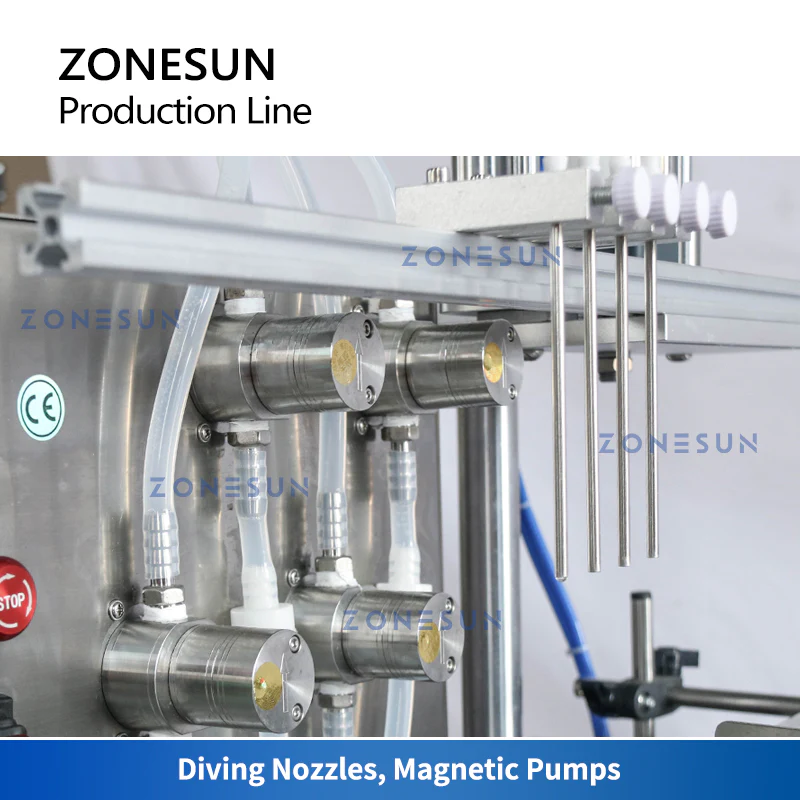

 FILLING

 Diving Nozzles, Magnetic Pumps, 316L stainless steel

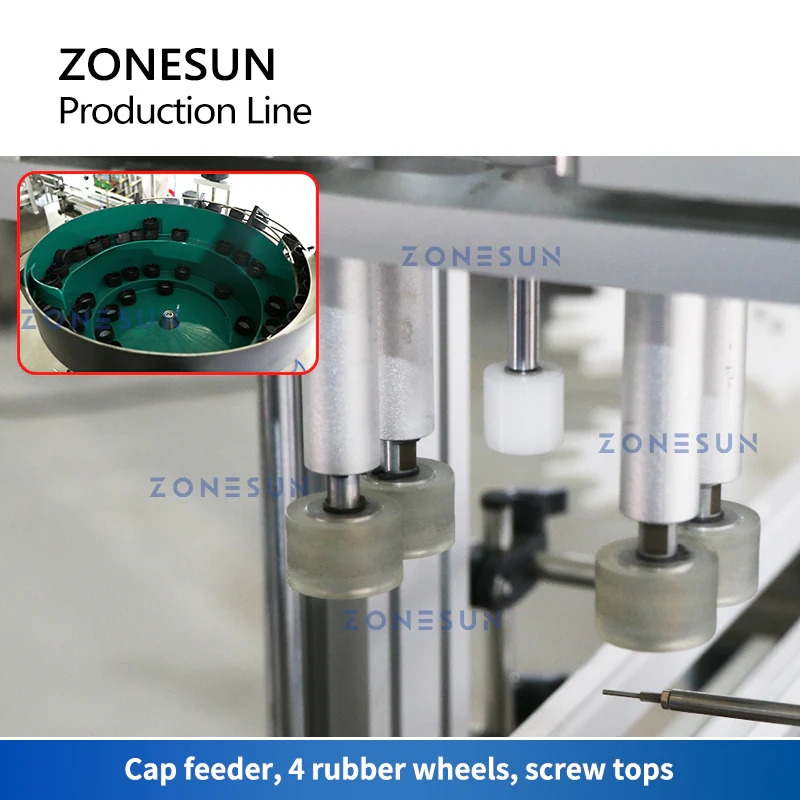

CAPPING

 4 rubber wheels for various screw caps.
1tapping bar for fixing caps.
Powerful dual motors.

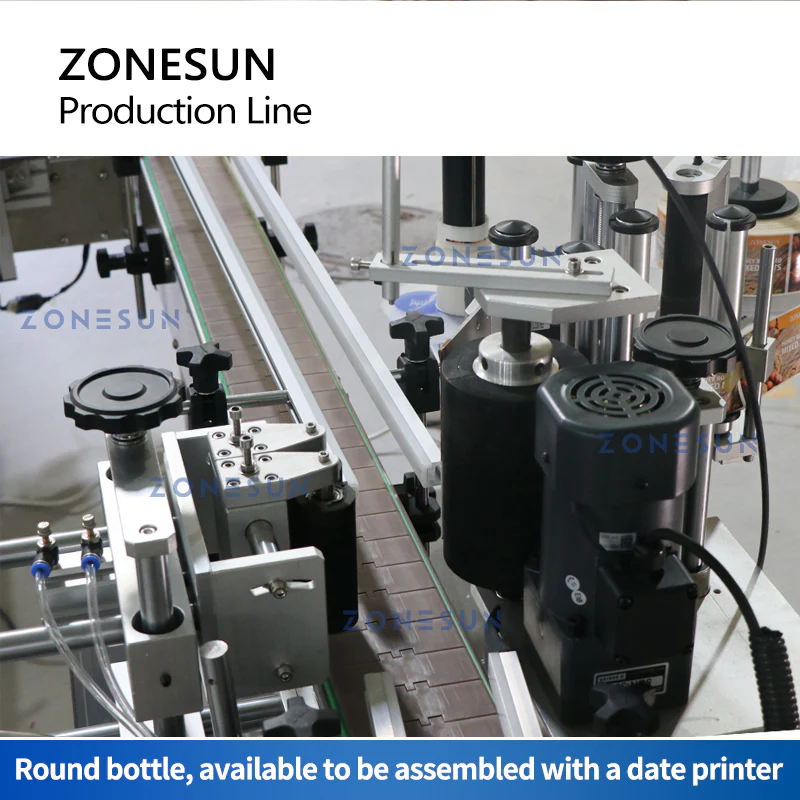

 LABELING

 Round bottles, no bubbles, available to be assembled with a date printer
