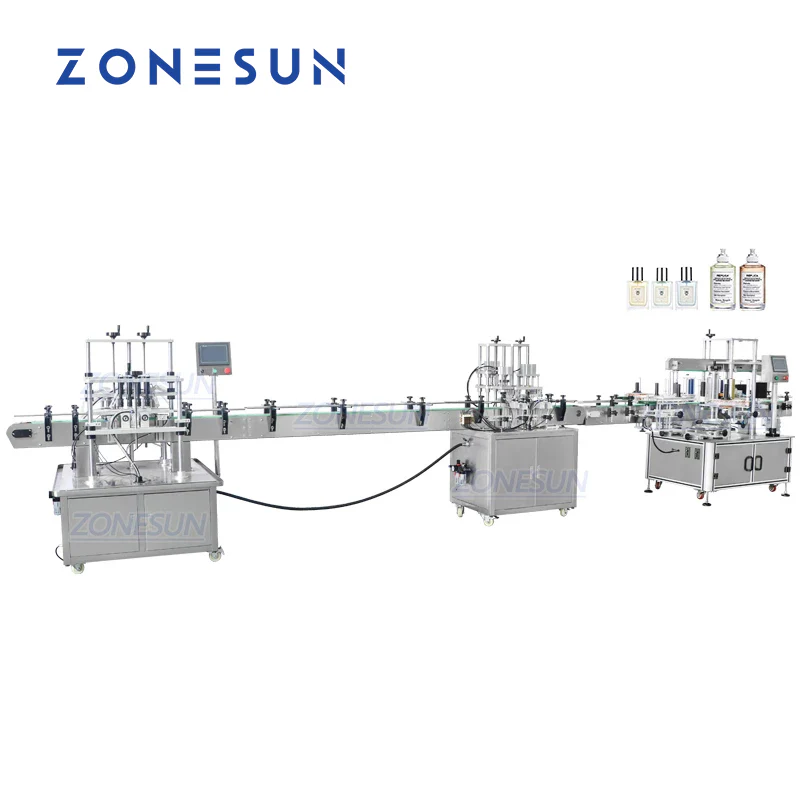

The ZONESUN ZS-FAL180X1 integrates vacuum liquid filling, capping, and labeling into one streamlined production line. Designed for perfume bottles, it features a PLC touch screen for easy control, pneumatic vacuum nozzles for precise liquid handling, and electric eye detection for intelligent automation. Suitable for round and square bottles with single or double-sided labeling. Customization available to meet specific production needs.

 Parameter Details

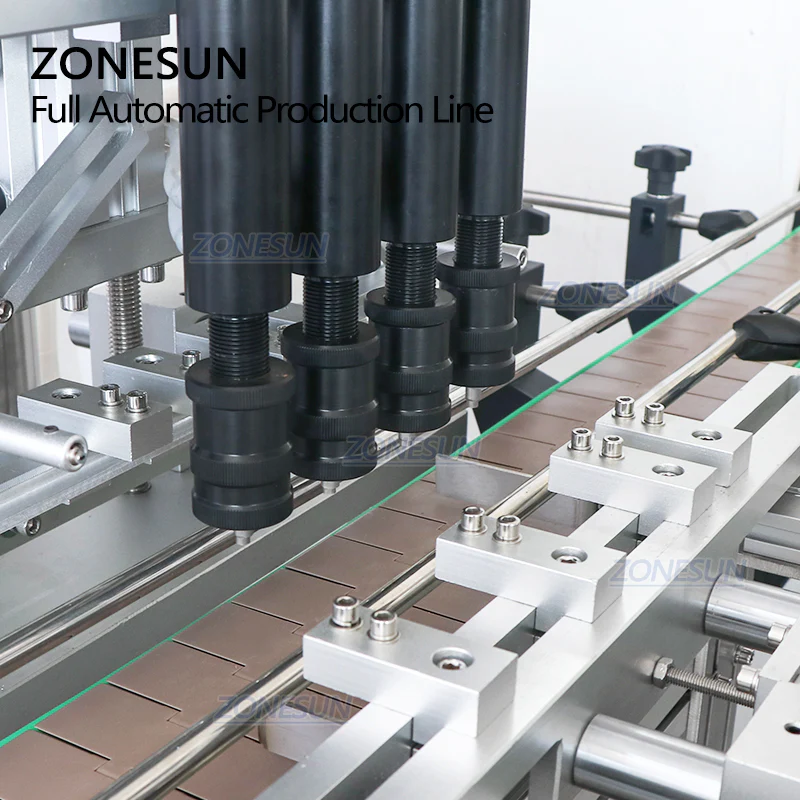

Model ZS-YTZL4A Filling Machine
Filling Head 4 Heads
Air Pressure Requirement 0.5–0.8 MPa
Liquid Level Accuracy ±1mm
Applicable Viscosity Up to 20Cps (static viscosity)
Working Speed 20–40 Bottles/Minute
Max Bottle Height ≤250mm
Bottle Opening Size Range φ4.5mm–φ28mm
Adjustable Liquid Level 20–200ml (from bottle mouth)
Pumping Rate ≤5L/s
Machine Dimensions Approx. 1500 × 1150 × 1530mm
Package Dimensions Approx. 1600 × 1310 × 1670mm
Net Weight / Gross Weight Approx. 278kg / 339kg

Parameter Details

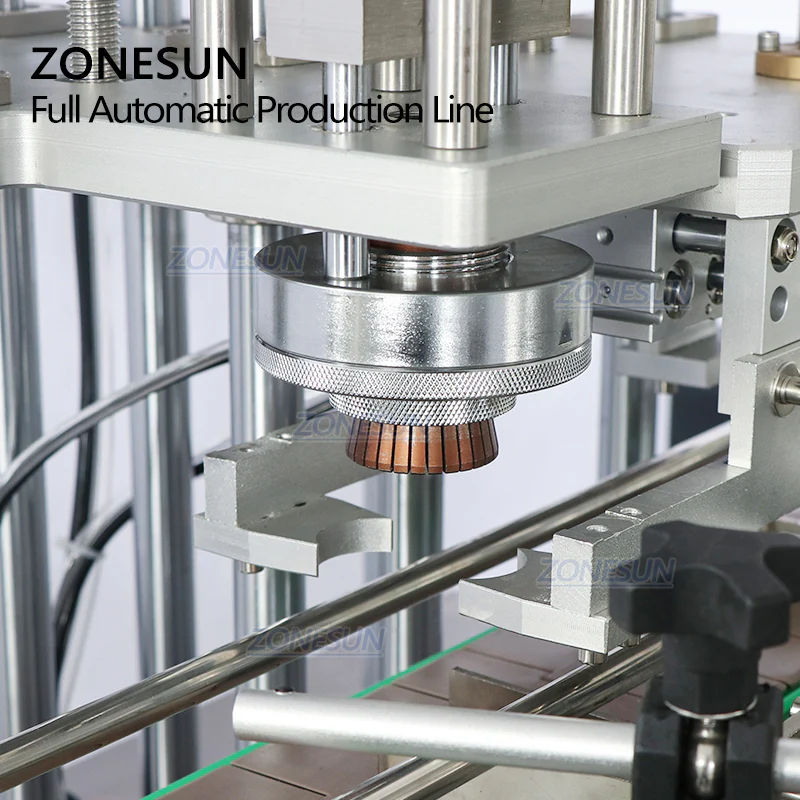

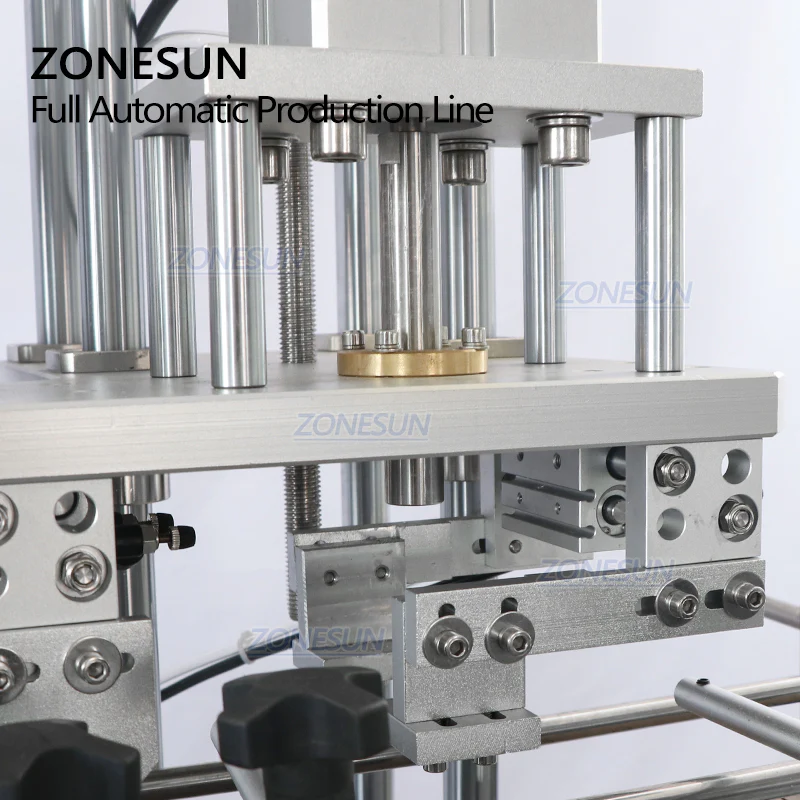

Machine Model ZS-YG09 Capping Machine
Bottle Height Range 60–200mm
Bottle Opening Sizes 13mm / 15mm / 18mm / 20mm (customizable)
Bottle Diameter ≤100mm
Cap Diameter Customized
Machine Dimensions Approx. 1345 × 655 × 1460mm
Machine Weight Approx. 151.5kg
Package Dimensions Approx. 1460 × 810 × 1630mm
Package Weight Approx. 193kg

Machine Model ZS-TB300Z Labeling Machine
Power Supply 110V / 220V, 2500W
Working Speed 30–150 bottles/min (varies by bottle size)
Labeling Accuracy ±1mm
Suitable Labeling Object L: 30–300mm, W: 30–100mm, H: 50–350mm
Suitable Label Size L: 15–300mm, W: 15–150mm
Label Roll Outer Diameter Φ280mm
Label Roll Inner Diameter Φ76mm
Machine Dimensions Approx. 2710 × 1450 × 1540mm
Package Dimensions Approx. 1900 × 970 × 1530mm
Net Weight / Gross Weight Approx. 361kg / 410kg
