ZONESUN ZS‑FAL180X3 Automatic Paste Filling Capping Labeling Line

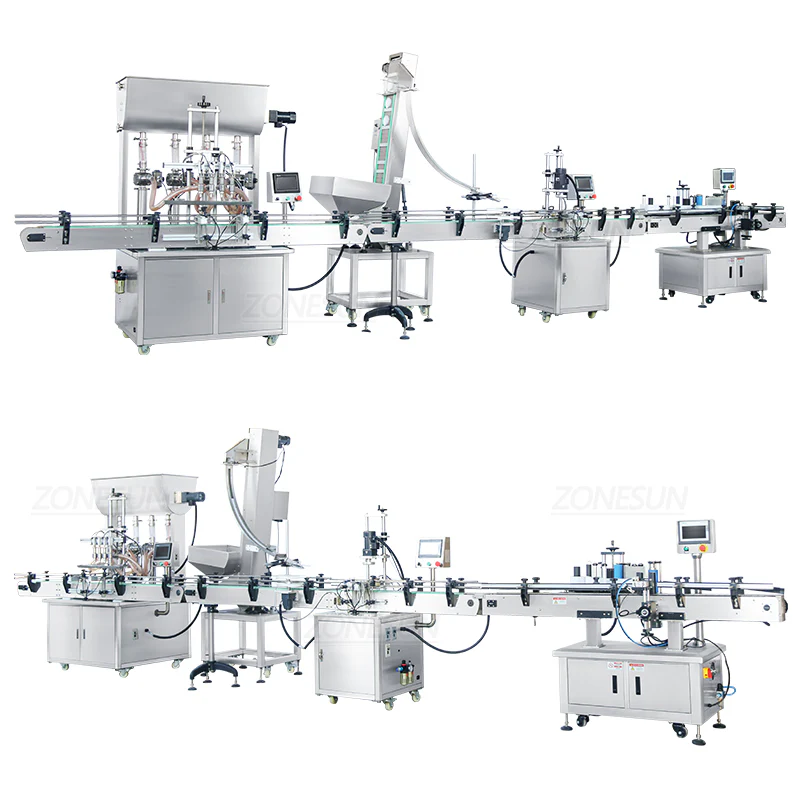

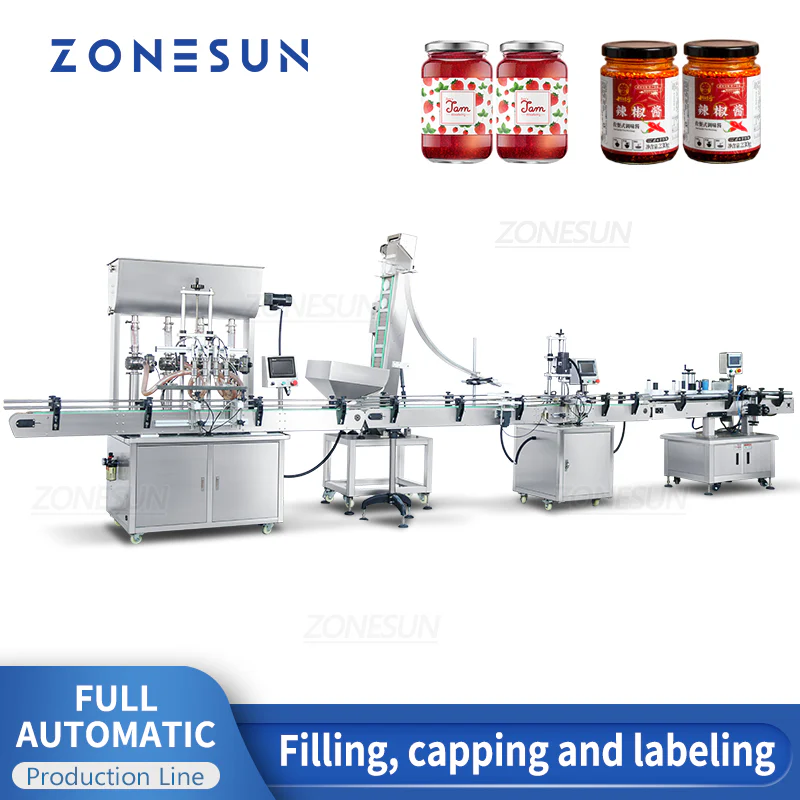

The ZONESUN ZS‑FAL180X3 Automatic Paste Filling, Capping & Labeling Machine is a fully integrated production line designed for efficient, high‑precision packaging. It combines a multi‑volume filling machine, cap feeder, pneumatic capping unit, and high‑accuracy labeling system to streamline operations from start to finish. Suitable for food, daily chemical, agricultural, and cosmetic industries, it supports a broad range of bottle sizes and filling capacities (5 ml to 5000 ml). With stable, automated operation and speeds up to 50 bottles per minute, this line delivers consistent quality while reducing labor costs and maximizing output.
ZS‑YT4T‑4P — Specifications
Parameter Details
Model ZS‑YT4T‑4P Filling Machine
Voltage 110 V / 220 V, 50‑60 Hz, 800 W
Filling Range 5 – 100 ml / 10 – 300 ml / 50 – 500 ml / 100 – 1000 ml / 500 – 3000 ml / 1000 – 5000 ml
Working Speed 20 – 50 bottles/min
Filling Accuracy ≤ ± 1 %
Air Pressure 0.4 – 0.6 MPa
Machine Weight 260 kg
Package Weight Approx. 380 kg (100 – 1000 ml, 4 heads)
Machine Size 2000 × 1000 × 2300 mm
Package Size Approx. 1410 × 1220 × 2130 mm (100 – 1000 ml, 4 heads)
ZS‑XG440D — Specifications (Capping Machine)
Parameter Details
Model ZS‑XG440D
Working Voltage AC 220 V / 110 V, 50‑60 Hz
Bottle Height ≤ 200 mm
Bottle Cap Diameter Customized
Working Speed 20 – 30 bottles/min (varies by bottle & cap)
Working Pressure 0.4 – 0.6 MPa
Conveyor Size 1000 mm (L) × 1950 mm (W)
Package Size Approx. 2000 × 820 × 1800 mm
Net Weight / Gross Weight Approx. 211 kg / 272 kg
ZS‑SLJ1 — Specifications (Cap Feeding Machine)
Parameter Details
Model ZS‑SLJ1
Capacity 60 – 120 pcs/min
Applicable Cap Size Customized
Voltage AC 220 V, 50 Hz
Power 0.37 kW
Machine Size Approx. 1300 × 600 × 2000 mm
Package Size Approx. 2350 × 850 × 1070 mm
Net Weight / Gross Weight Approx. 80 kg / 205 kg
Parameter Details
Model ZS‑TB260N Labeling Machine
Power Supply AC 220 V, 50 Hz / 60 Hz, 1000 W
Working Speed 25 – 50 bottles/min (varies by bottle size)
Labeling Accuracy ± 1.0 mm
Applicable Bottle Diameter Ø 12 – 100 mm
Applicable Label Size Length: 20 – 300 mm<br>Height: 15 – 150 mm
Label Roll Core Diameter Ø 76 mm
Label Roll Outer Diameter Ø 350 mm
Conveyor Size (W) 112 × 2000 mm
Machine Size (L×W×H) Approx. 2000 × 800 × 1380 mm
Package Size (L×W×H) Approx. 2100 × 890 × 1520 mm
Net Weight / Gross Weight Approx. 180 kg / 250 kg
The ZONESUN ZS‑FAL180X3 Automatic Paste Filling, Capping & Labeling Machine is a fully integrated production line designed for efficient, high‑precision packaging. It combines a multi‑volume filling machine, cap feeder, pneumatic capping unit, and high‑accuracy labeling system to streamline operations from start to finish. Suitable for food, daily chemical, agricultural, and cosmetic industries, it supports a broad range of bottle sizes and filling capacities (5 ml to 5000 ml). With stable, automated operation and speeds up to 50 bottles per minute, this line delivers consistent quality while reducing labor costs and maximizing output.
ZS‑YT4T‑4P — Specifications
Parameter Details
Model ZS‑YT4T‑4P Filling Machine
Voltage 110 V / 220 V, 50‑60 Hz, 800 W
Filling Range 5 – 100 ml / 10 – 300 ml / 50 – 500 ml / 100 – 1000 ml / 500 – 3000 ml / 1000 – 5000 ml
Working Speed 20 – 50 bottles/min
Filling Accuracy ≤ ± 1 %
Air Pressure 0.4 – 0.6 MPa
Machine Weight 260 kg
Package Weight Approx. 380 kg (100 – 1000 ml, 4 heads)
Machine Size 2000 × 1000 × 2300 mm
Package Size Approx. 1410 × 1220 × 2130 mm (100 – 1000 ml, 4 heads)
ZS‑XG440D — Specifications (Capping Machine)
Parameter Details
Model ZS‑XG440D
Working Voltage AC 220 V / 110 V, 50‑60 Hz
Bottle Height ≤ 200 mm
Bottle Cap Diameter Customized
Working Speed 20 – 30 bottles/min (varies by bottle & cap)
Working Pressure 0.4 – 0.6 MPa
Conveyor Size 1000 mm (L) × 1950 mm (W)
Package Size Approx. 2000 × 820 × 1800 mm
Net Weight / Gross Weight Approx. 211 kg / 272 kg
ZS‑SLJ1 — Specifications (Cap Feeding Machine)
Parameter Details
Model ZS‑SLJ1
Capacity 60 – 120 pcs/min
Applicable Cap Size Customized
Voltage AC 220 V, 50 Hz
Power 0.37 kW
Machine Size Approx. 1300 × 600 × 2000 mm
Package Size Approx. 2350 × 850 × 1070 mm
Net Weight / Gross Weight Approx. 80 kg / 205 kg
Parameter Details
Model ZS‑TB260N Labeling Machine
Power Supply AC 220 V, 50 Hz / 60 Hz, 1000 W
Working Speed 25 – 50 bottles/min (varies by bottle size)
Labeling Accuracy ± 1.0 mm
Applicable Bottle Diameter Ø 12 – 100 mm
Applicable Label Size Length: 20 – 300 mm<br>Height: 15 – 150 mm
Label Roll Core Diameter Ø 76 mm
Label Roll Outer Diameter Ø 350 mm
Conveyor Size (W) 112 × 2000 mm
Machine Size (L×W×H) Approx. 2000 × 800 × 1380 mm
Package Size (L×W×H) Approx. 2100 × 890 × 1520 mm
Net Weight / Gross Weight Approx. 180 kg / 250 kg
Original: $18,055.99
-70%$18,055.99
$5,416.80Description
The ZONESUN ZS‑FAL180X3 Automatic Paste Filling, Capping & Labeling Machine is a fully integrated production line designed for efficient, high‑precision packaging. It combines a multi‑volume filling machine, cap feeder, pneumatic capping unit, and high‑accuracy labeling system to streamline operations from start to finish. Suitable for food, daily chemical, agricultural, and cosmetic industries, it supports a broad range of bottle sizes and filling capacities (5 ml to 5000 ml). With stable, automated operation and speeds up to 50 bottles per minute, this line delivers consistent quality while reducing labor costs and maximizing output.
ZS‑YT4T‑4P — Specifications
Parameter Details
Model ZS‑YT4T‑4P Filling Machine
Voltage 110 V / 220 V, 50‑60 Hz, 800 W
Filling Range 5 – 100 ml / 10 – 300 ml / 50 – 500 ml / 100 – 1000 ml / 500 – 3000 ml / 1000 – 5000 ml
Working Speed 20 – 50 bottles/min
Filling Accuracy ≤ ± 1 %
Air Pressure 0.4 – 0.6 MPa
Machine Weight 260 kg
Package Weight Approx. 380 kg (100 – 1000 ml, 4 heads)
Machine Size 2000 × 1000 × 2300 mm
Package Size Approx. 1410 × 1220 × 2130 mm (100 – 1000 ml, 4 heads)
ZS‑XG440D — Specifications (Capping Machine)
Parameter Details
Model ZS‑XG440D
Working Voltage AC 220 V / 110 V, 50‑60 Hz
Bottle Height ≤ 200 mm
Bottle Cap Diameter Customized
Working Speed 20 – 30 bottles/min (varies by bottle & cap)
Working Pressure 0.4 – 0.6 MPa
Conveyor Size 1000 mm (L) × 1950 mm (W)
Package Size Approx. 2000 × 820 × 1800 mm
Net Weight / Gross Weight Approx. 211 kg / 272 kg
ZS‑SLJ1 — Specifications (Cap Feeding Machine)
Parameter Details
Model ZS‑SLJ1
Capacity 60 – 120 pcs/min
Applicable Cap Size Customized
Voltage AC 220 V, 50 Hz
Power 0.37 kW
Machine Size Approx. 1300 × 600 × 2000 mm
Package Size Approx. 2350 × 850 × 1070 mm
Net Weight / Gross Weight Approx. 80 kg / 205 kg
Parameter Details
Model ZS‑TB260N Labeling Machine
Power Supply AC 220 V, 50 Hz / 60 Hz, 1000 W
Working Speed 25 – 50 bottles/min (varies by bottle size)
Labeling Accuracy ± 1.0 mm
Applicable Bottle Diameter Ø 12 – 100 mm
Applicable Label Size Length: 20 – 300 mm<br>Height: 15 – 150 mm
Label Roll Core Diameter Ø 76 mm
Label Roll Outer Diameter Ø 350 mm
Conveyor Size (W) 112 × 2000 mm
Machine Size (L×W×H) Approx. 2000 × 800 × 1380 mm
Package Size (L×W×H) Approx. 2100 × 890 × 1520 mm
Net Weight / Gross Weight Approx. 180 kg / 250 kg
