ZONESUN ZS‑FAL180X4 Magnetic Pump Liquid Filling Capping Labeling Line
The ZONESUN ZS‑FAL180X4 is an automated liquid filling, capping, and labeling production line designed to maximize efficiency and reduce labor costs. Featuring a bottle unscrambling conveyor, precision magnetic pump filling, high‑speed capping, and accurate labeling, it is ideal for daily chemical products, skincare, and liquid healthcare applications. Built for consistency and reliability, it supports streamlined operations from start to finish.
Parameter Details

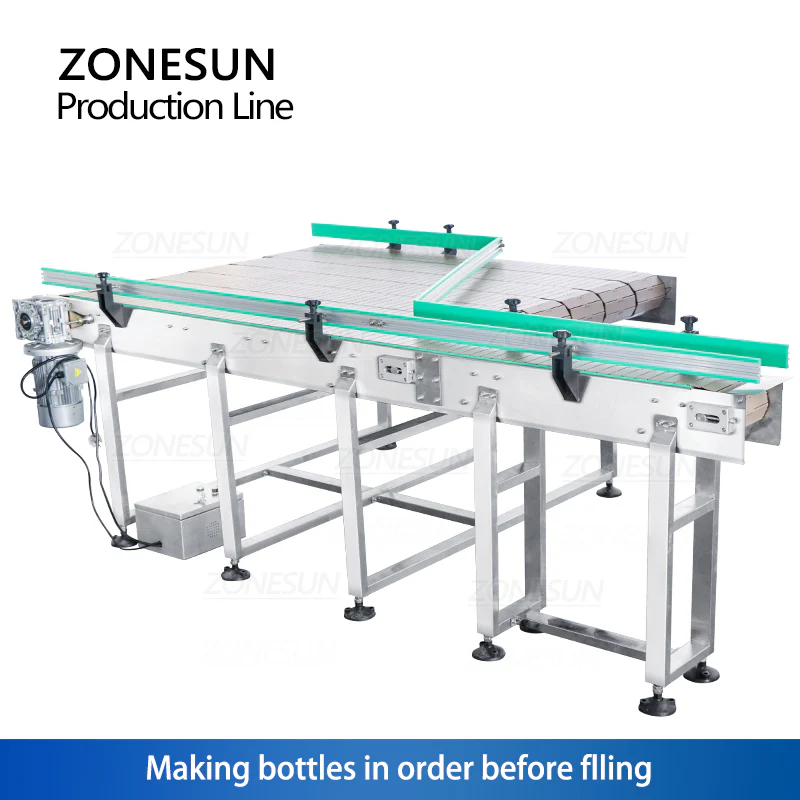

Machine Model ZS‑CB190 CONVEYOR BELT
Machine Power 1.5 kW
Conveyor Size 1760 × 1425 mm + 960 × 190.5 mm
Conveyor Width 190.5 mm (Single)
Working Speed 0 – 20 m/min
Package Size Approx. 2050 × 1720 × 720 mm
Package Weight Approx. 276 kg
Machine Model ZS‑VTMP80C Filling Machine
Power Supply 220 V~50 Hz / 110 V~60 Hz
Machine Power 2000 W
Pump Type 316 Stainless Steel Magnetic Pump
Suitable Bottle Size Diameter: φ20 – 160 mm<br>Height: 30 – 300 mm
Max Flow Rate 6000 ml/min, 7500 ml/min, 12000 ml/min
Filling Accuracy <100 ml: deviation ≤ ±1 ml<br>>100 ml: deviation ≤ ±1% (based on water)
Filling Speed 20 – 50 pcs/min, 20 – 50 pcs/min, 25 – 60 pcs/min (depending on bottle size & liquid)
Air Compressor Connector Size φ8 mm
Net Weight / Gross Weight Approx. 114.5 kg / 195.5 kg
Packing Size Approx. 2000 × 820 × 1580 mm
Machine Model ZS‑XG16 Capping Machine
Working Voltage AC 220 V / 110 V, 50–60 Hz
Bottle Height 30 – 300 mm
Cap Diameter 18 – 70 mm
Bottle Diameter 20 – 160 mm
Working Speed 20 – 60 bottles/min
Working Pressure 0.4 – 0.6 MPa (depends on bottle & cap size/shape)
Machine Size Approx. 1930 × 740 × 1600 mm
Packing Size Approx. 2000 × 820 × 1760 mm
Net Weight / Gross Weight Approx. 113 kg / 192.5 kg
Machine Model ZS‑TB260 Labeling Machine
Power Supply AC 220 V, 50 Hz / 60 Hz, 1500 W
Labeling Capacity 25 – 50 pcs/min (depends on bottle size)
Labeling Accuracy ± 1.0 mm
Suitable Bottle Diameter φ 30 – 100 mm
Label Size Length: 15 – 200 mm<br>Height: 15 – 150 mm
Label Roll Inside Diameter φ 76 mm
Label Roll Outside Diameter φ 350 mm
Conveyor Size (L×W) 1950 mm × 100 mm
Machine Size Approx. 2000 × 1400 × 1300 mm
Packing Size Approx. 2110 × 1040 × 1400 mm
Net Weight / Gross Weight Approx. 223.5 kg / 280 kg
