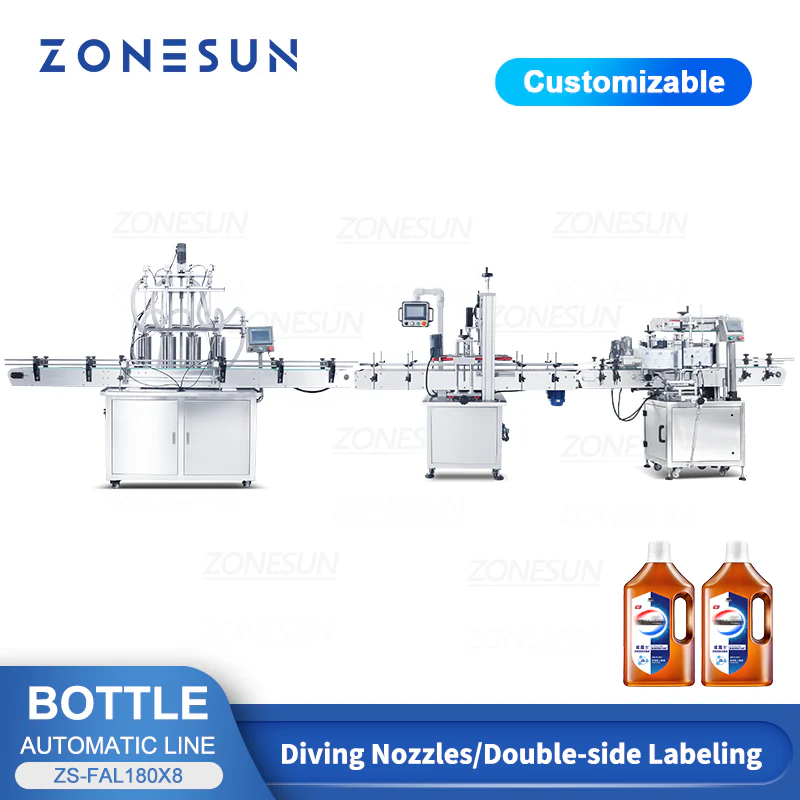

ZONESUN ZS‑FAL180X8 Automatic Liquid Filling Capping Labeling Line
The ZONESUN ZS‑FAL180X8 is a fully automated production line integrating liquid filling, bottle capping, and labeling into one streamlined process. Designed for square bottles, it significantly increases production efficiency and reduces manual labor. Ideal for packaging daily chemical goods, skincare solutions, and liquid healthcare products, it delivers professional, consistent results while ensuring product quality and presentation.
Machine Specifications
Parameter Details

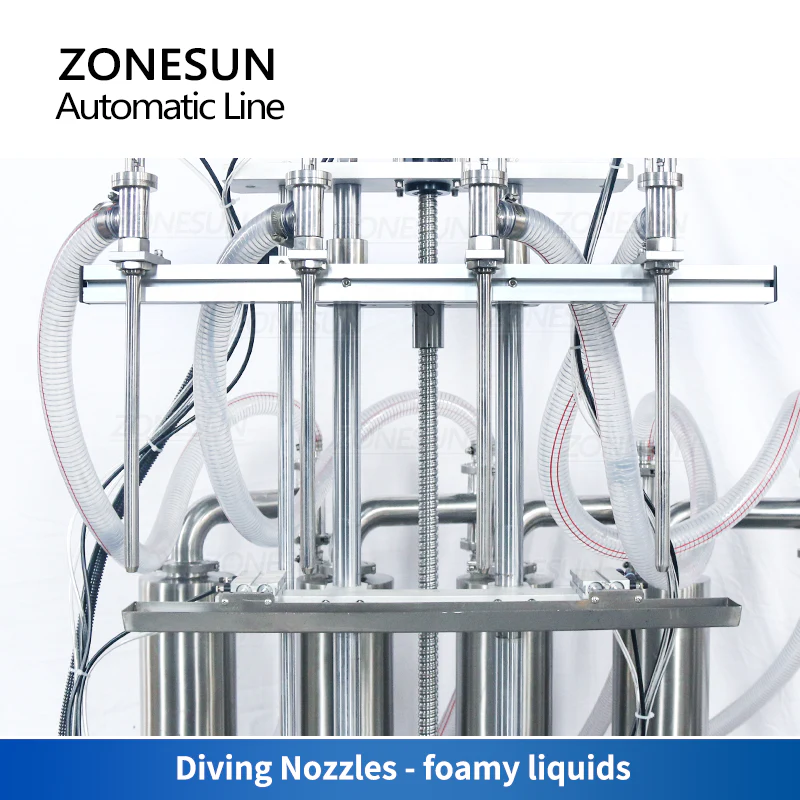

Model ZS‑SV4HS Filling Machine
Machine Voltage 110 V / 220 V, 50–60 Hz
Power Approx. 6 kW
Filling Range 100 – 1000 ml (customizable)
Filling Speed Approx. 15 – 30 bottles/min (varies by bottle size & material)
Filling Accuracy Approx. ±0.5 %
Air Pressure 0.5 – 0.8 MPa
Conveyor Belt Size Approx. 114 × 2000 mm (W × L)
Machine Weight Approx. 130 kg
Package Size Approx. 2070 × 760 × 1670 mm
Package Weight Approx. 275 kg

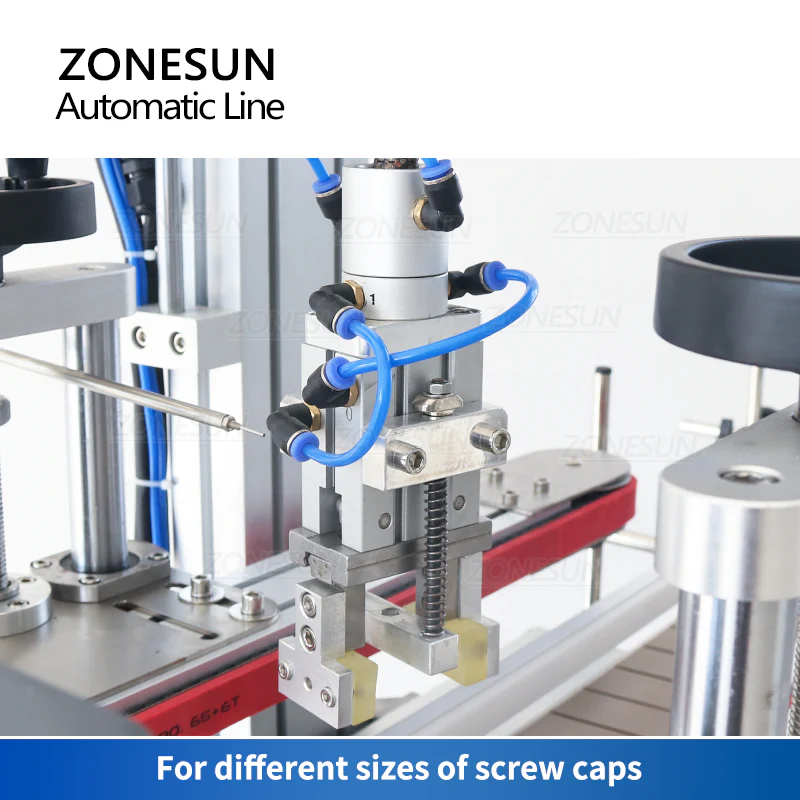

Machine Model ZS‑XG16F Capping Machine
Voltage AC 220 V / 110 V, 50–60 Hz
Bottle Height 30 – 300 mm
Cap Diameter 18 – 70 mm
Bottle Diameter 20 – 160 mm
Working Speed 20 – 60 bottles/min (depends on bottle & cap size)
Working Pressure 0.4 – 0.6 MPa
Machine Size Approx. 1930 × 650 × 1800 mm
Machine Weight Approx. 141 kg
Package Size Approx. 1970 × 360 × 1840 mm
Gross Weight Approx. 284 kg
Machine Model ZS‑TB300V Labeling Machine
Voltage 110 V‑60 Hz / 220 V‑50 Hz
Power 3100 W
Working Speed 30 – 100 bottles/min
Labeling Accuracy ±0.5 mm
Suitable Labeling Size ≤ 200 mm (width) — customizable
Roll Inside Diameter Ø 75 mm
Roll Outside Diameter Ø 250 mm
Suitable Bottle Diameter Ø ≤ 100 mm, Height ≤ 350 mm
Conveyor Size Approx. 1800 × 100 mm
Machine Size Approx. 1800 × 1250 × 1450 mm (L × W × H)
Package Size Approx. 1850 × 1135 × 1560 mm (L × W × H)
Net Weight / Gross Weight Approx. 213 kg / 268 kg
