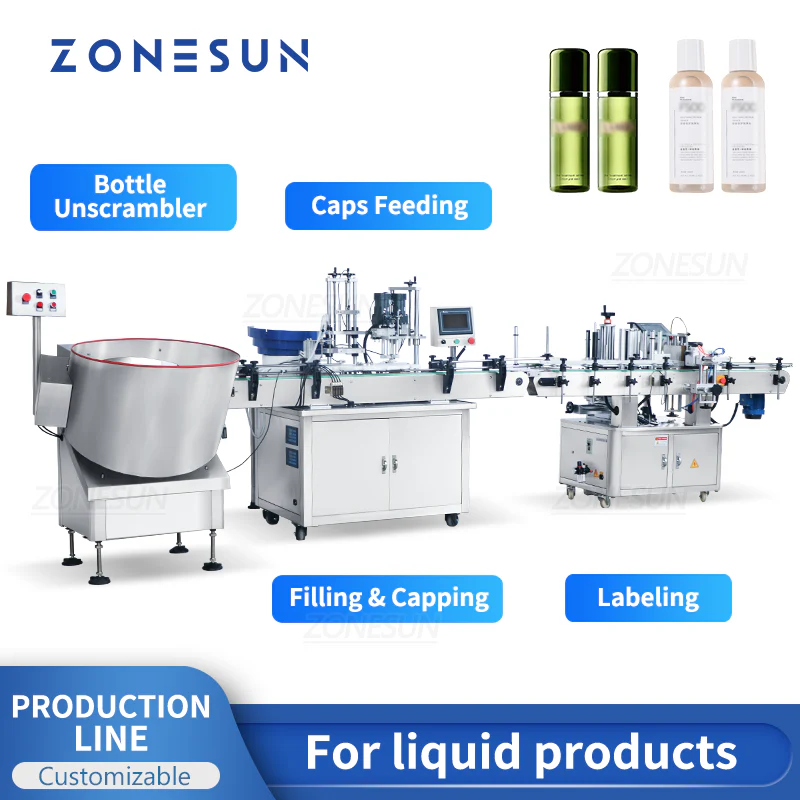

The ZS-FAL180Z2 is a fully automated production line combining bottle unscrambling, filling, capping, and labeling functions. Designed for liquid products such as skincare, daily chemicals, and health supplements, it streamlines packaging with high precision and efficiency. Ideal for businesses seeking to reduce labor costs and boost output with consistent, professional results.

ZONESUN ZS-LP750 Bottle Turntable Machine – Technical Specifications
Parameter Details
Model ZS-LP750
Machine Voltage & Power 110V / 220V, 50–60Hz, 500W
Rotary Plate Diameter 755mm
Suitable Bottle Diameter Customized to match your bottles
Working Speed 20–80 bottles/min
Machine Size Approx. 570 × 685 × 1325mm
Machine Weight Approx. 177kg
Package Size Approx. 1110 × 1080 × 1490mm
Package Weight Approx. 208kg

ZONESUN ZS-AFC1 Filling Capping Machine – Technical Specifications
Parameter Details
Model ZS-AFC1
Machine Voltage & Power AC220V, 50Hz/60Hz, 300W
Bottle Diameter 25–50mm (Customizable)
Bottle Height 50–350mm
Working Speed 0–40 bottles/min (varies by liquid, bottle, cap)
Air Pressure 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Conveyor Size Approx. 2000 × 100mm (L × W)
Machine Size Approx. 1050 × 800 × 1560mm
Machine Weight Approx. 341kg
Packing Size Approx. 2210 × 980 × 1740mm
Package Weight Approx. 411kg

ZONESUN ZS-TB260 Labeling Machine – Technical Specifications
Parameter Details
Model ZS-TB260
Power Supply AC220V, 50Hz/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1mm
Suitable Bottle Diameter Φ30–100mm
Label Size Length: 15–200mm / Height: 15–150mm
Roll Inside Diameter Φ76mm
Roll Outside Diameter Φ350mm
Conveyor Size 1950 × 100mm (L × W)
Machine Size Approx. 2000 × 1400 × 1300mm
Packing Size Approx. 2120 × 940 × 1500mm
Net/Gross Weight Approx. 226kg / 290kg
