The ZONESUN ZS-FK2200 is a compact automatic aluminum foil sealing machine designed for sharp-mouth bottles. With a sealing diameter range of Φ15–85mm and adjustable conveyor speed, it supports bottle heights from 10–350mm and seals up to 50 bottles per minute. Ideal for pharmaceutical, cosmetic, and food packaging, it helps reduce labor costs while ensuring consistent sealing quality. This machine must be customized to match your bottle specifications—please send sample bottles for accurate configuration.

Parameter
Machine model: ZS-FK2200
Machine voltage: 110/220V 50-60Hz
Machine power: 2200W
Sealing diameter: Φ15-85mm
Suitable bottle height: 10-350mm
Conveyor belt speed: 0-10m/min
Sealing speed: 20-50 bottles/min
Machine weight: About 25kg
Package size: About 1000*585*550mm
Package weight: About 49kg

The working height of this machine can be adjusted according to bottle height by rotating the knob.This can help to improve production quality.

The simple control panel can help you watch working voltage and current in real time,ensures the safety operation.The sealing temperature can be adjusted according to operation need.

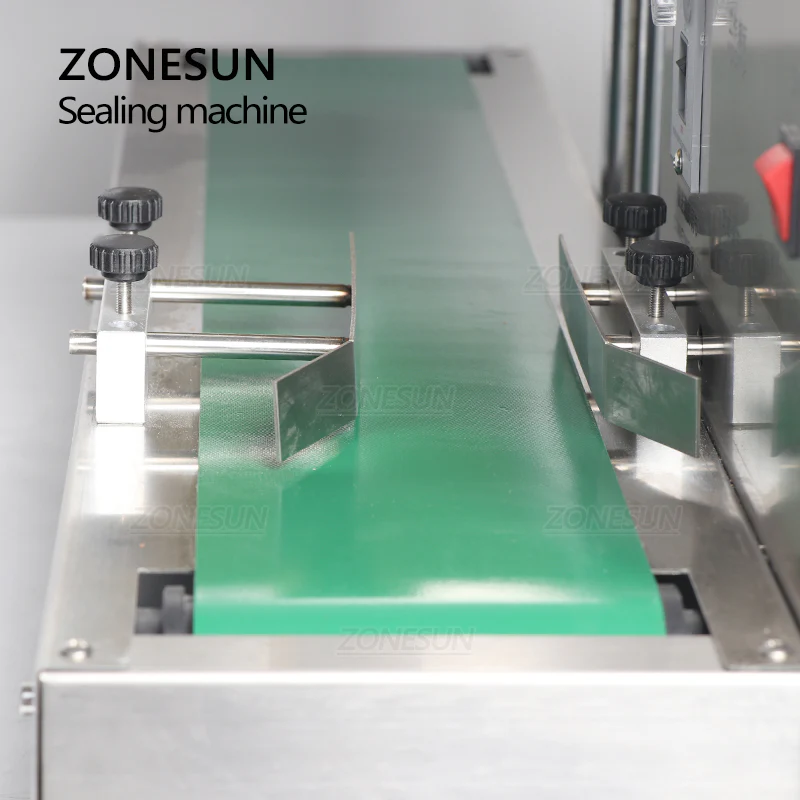

The feeding inlet can be adjusted according to bottle diameter.This can help to arrange bottle before sealing.Makes sure the production can be in order.

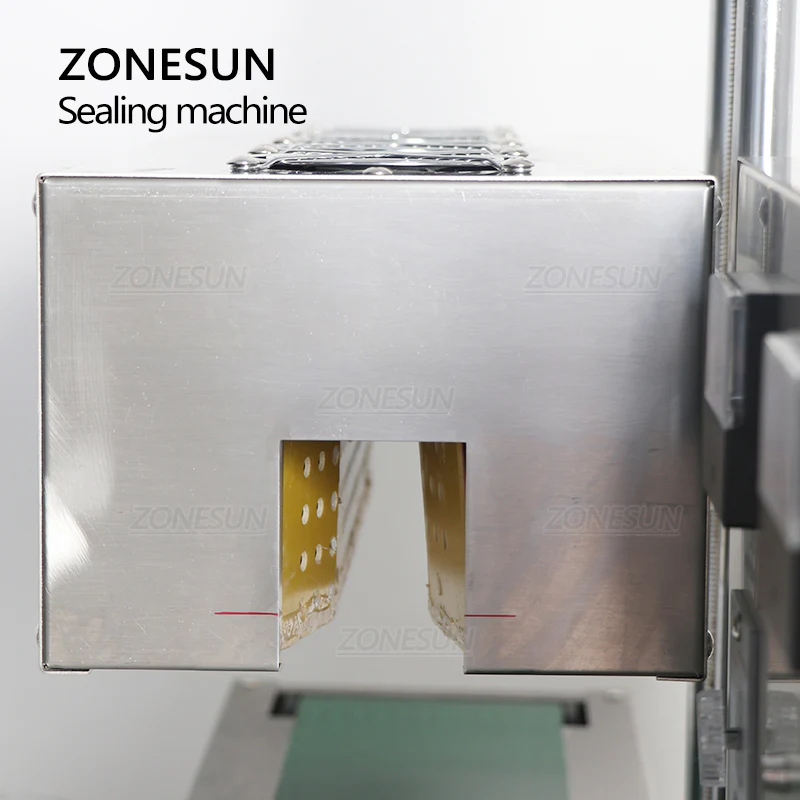

The host sends the audio current to the sensor head, and the aluminum foil is electromagnetically induced to generate super-audio current, which instantly reaches high temperature, so that the composite film is bonded to the bottle mouth.This design is good for sharp mouth bottles.
