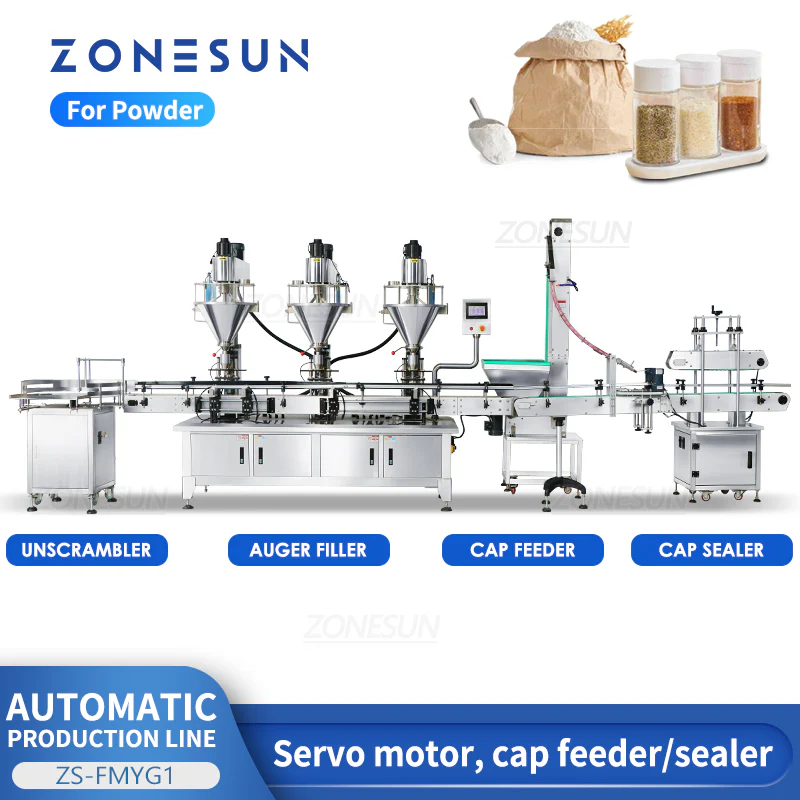

ZONESUN ZS-FMYG1 Powder Filling & Capping Line with Servo Auger System

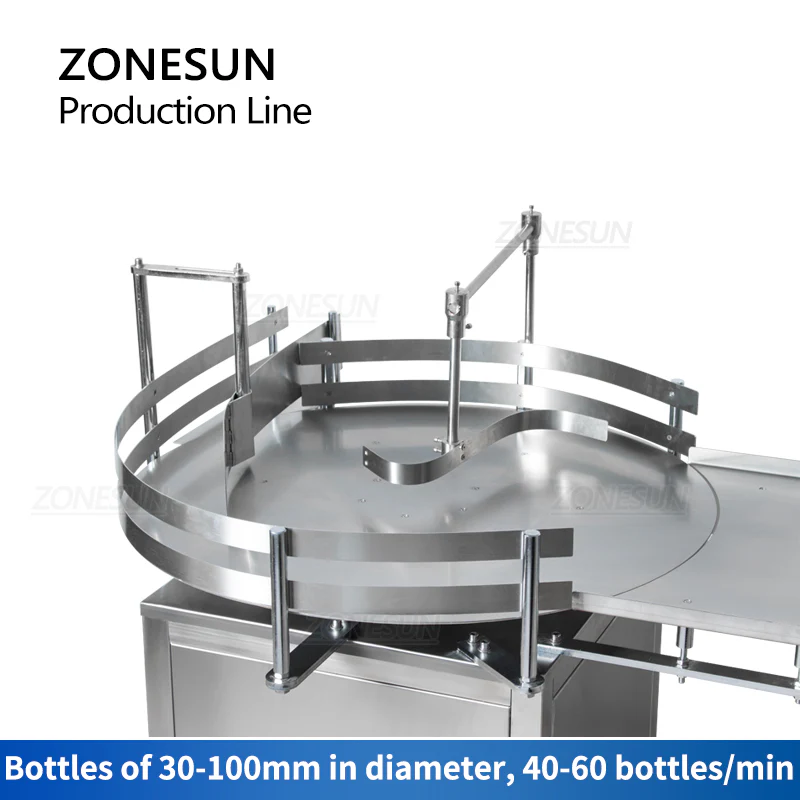

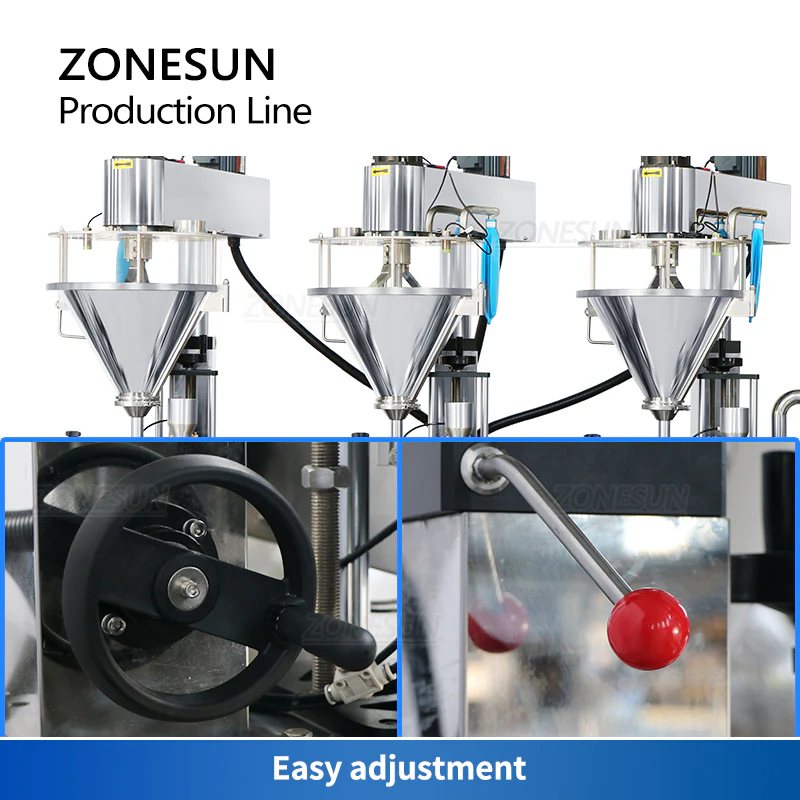

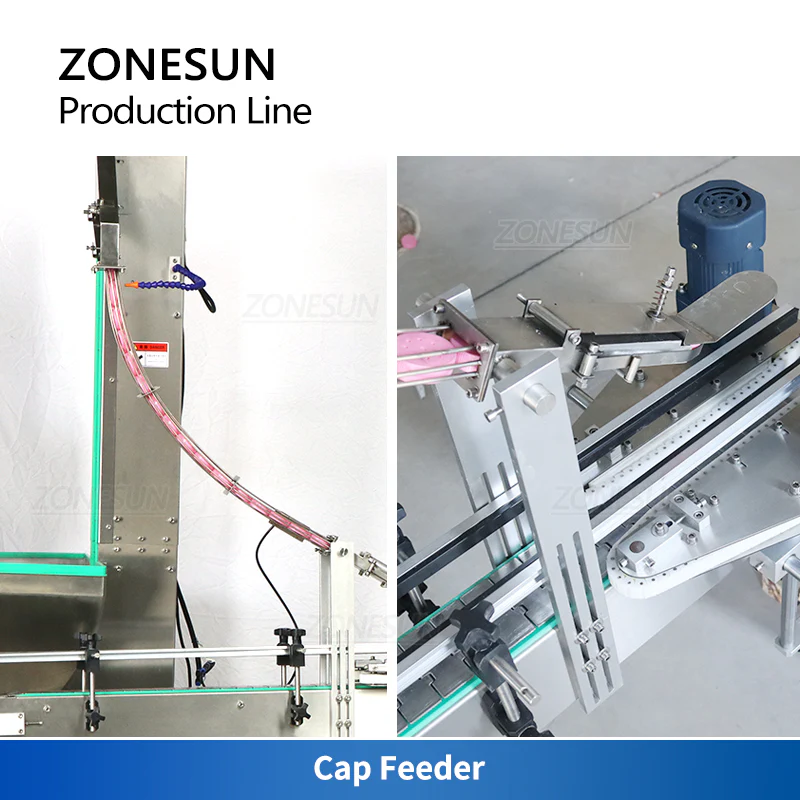

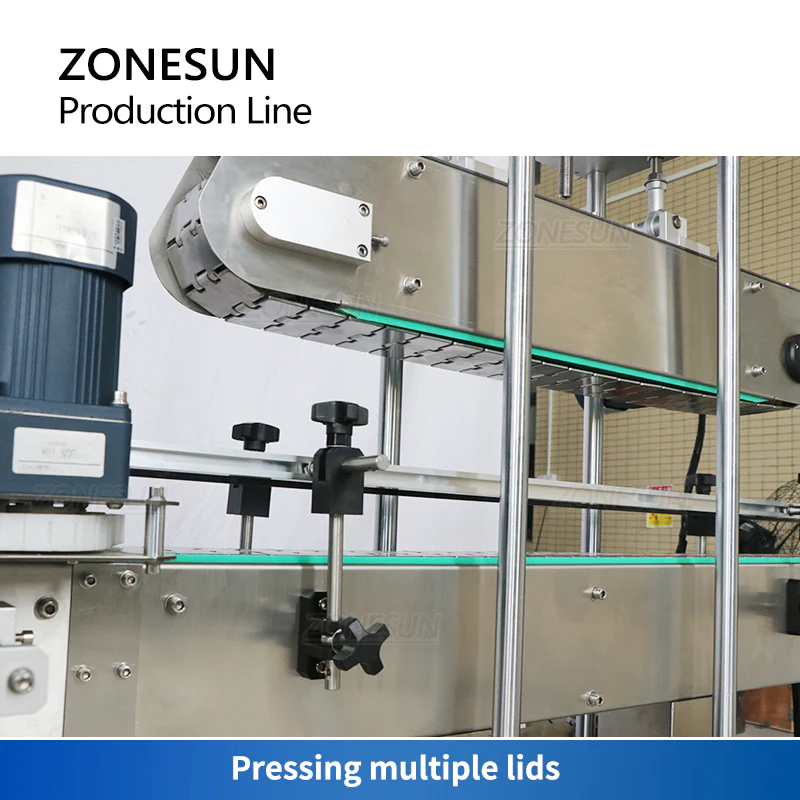

The ZONESUN ZS-FMYG1 is a fully automated powder filling and capping production line designed for high-speed, precision packaging. It includes a bottle unscrambler, a three-head servo-driven auger filler, a cap feeder, and a cap pressing machine. Ideal for powders such as milk, chili, cocoa, and other fine granules, this system ensures consistent fill weights and secure sealing. The ZS-FMA4 filling unit offers customizable dosing from 50–300g, while the ZS-XG21S induction sealing machine handles bottle heights from 100–380mm with cap diameters of 50–100mm. Built for industrial efficiency, this line supports up to 3000 bottles per hour.
Technical Specifications
Parameter Value
Machine Model ZS-FMA4 powder filling machine
Voltage 380V / 6KW
Filling Range 50–300g (Customizable)
Filling Head Quantity 3
Filling Nozzle Diameter Custom
Machine Size 2800×1050×2300mm (approx.)
Package Size 2590×1030×2230mm (approx.)
Net/Gross Weight 600kg / 905kg (approx.)
Machine Model ZS-XG21S induction sealing machine
Voltage 220V / 110V, 50–60Hz
Motor Power 180W
Conveyor Motor Power 370W
Working Speed 1000–3000 bottles/hour
Applicable Bottle Height 100–380mm
Bottle Cap Diameter 50–100mm
Machine Size 630×650×1500mm (approx.)
Package Size 860×650×2100mm (approx.)
Package Weight 150kg (approx.)
The ZONESUN ZS-FMYG1 is a fully automated powder filling and capping production line designed for high-speed, precision packaging. It includes a bottle unscrambler, a three-head servo-driven auger filler, a cap feeder, and a cap pressing machine. Ideal for powders such as milk, chili, cocoa, and other fine granules, this system ensures consistent fill weights and secure sealing. The ZS-FMA4 filling unit offers customizable dosing from 50–300g, while the ZS-XG21S induction sealing machine handles bottle heights from 100–380mm with cap diameters of 50–100mm. Built for industrial efficiency, this line supports up to 3000 bottles per hour.
Technical Specifications
Parameter Value
Machine Model ZS-FMA4 powder filling machine
Voltage 380V / 6KW
Filling Range 50–300g (Customizable)
Filling Head Quantity 3
Filling Nozzle Diameter Custom
Machine Size 2800×1050×2300mm (approx.)
Package Size 2590×1030×2230mm (approx.)
Net/Gross Weight 600kg / 905kg (approx.)
Machine Model ZS-XG21S induction sealing machine
Voltage 220V / 110V, 50–60Hz
Motor Power 180W
Conveyor Motor Power 370W
Working Speed 1000–3000 bottles/hour
Applicable Bottle Height 100–380mm
Bottle Cap Diameter 50–100mm
Machine Size 630×650×1500mm (approx.)
Package Size 860×650×2100mm (approx.)
Package Weight 150kg (approx.)
Original: $27,249.00
-70%$27,249.00
$8,174.70Description
The ZONESUN ZS-FMYG1 is a fully automated powder filling and capping production line designed for high-speed, precision packaging. It includes a bottle unscrambler, a three-head servo-driven auger filler, a cap feeder, and a cap pressing machine. Ideal for powders such as milk, chili, cocoa, and other fine granules, this system ensures consistent fill weights and secure sealing. The ZS-FMA4 filling unit offers customizable dosing from 50–300g, while the ZS-XG21S induction sealing machine handles bottle heights from 100–380mm with cap diameters of 50–100mm. Built for industrial efficiency, this line supports up to 3000 bottles per hour.
Technical Specifications
Parameter Value
Machine Model ZS-FMA4 powder filling machine
Voltage 380V / 6KW
Filling Range 50–300g (Customizable)
Filling Head Quantity 3
Filling Nozzle Diameter Custom
Machine Size 2800×1050×2300mm (approx.)
Package Size 2590×1030×2230mm (approx.)
Net/Gross Weight 600kg / 905kg (approx.)
Machine Model ZS-XG21S induction sealing machine
Voltage 220V / 110V, 50–60Hz
Motor Power 180W
Conveyor Motor Power 370W
Working Speed 1000–3000 bottles/hour
Applicable Bottle Height 100–380mm
Bottle Cap Diameter 50–100mm
Machine Size 630×650×1500mm (approx.)
Package Size 860×650×2100mm (approx.)
Package Weight 150kg (approx.)
