ZONESUN ZS‑GFYT320 Automatic Liquid Pouch Filling & Sealing Machine

Product image 1
1 / 6
+1

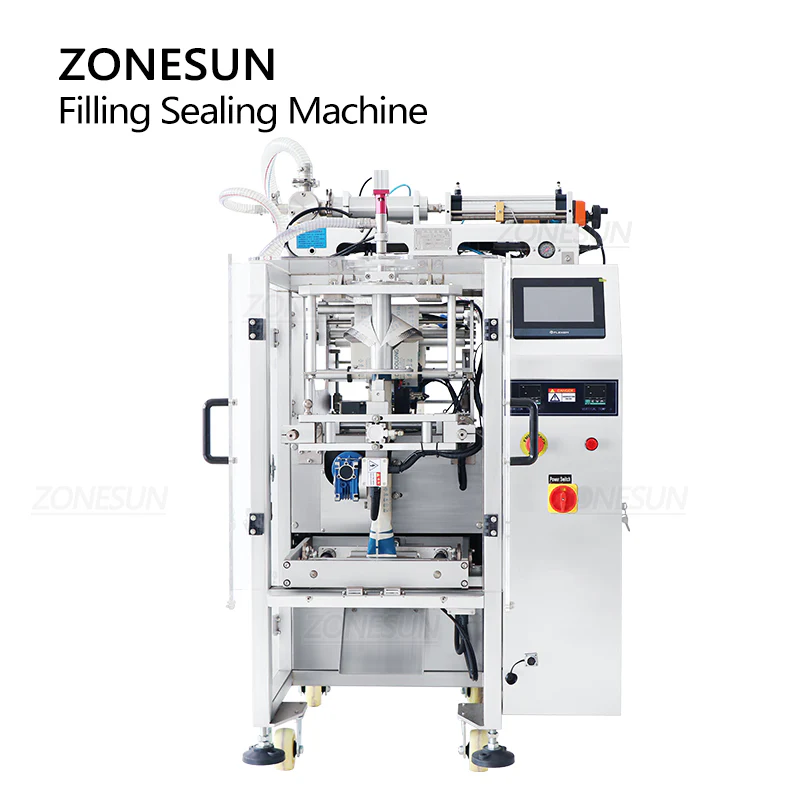

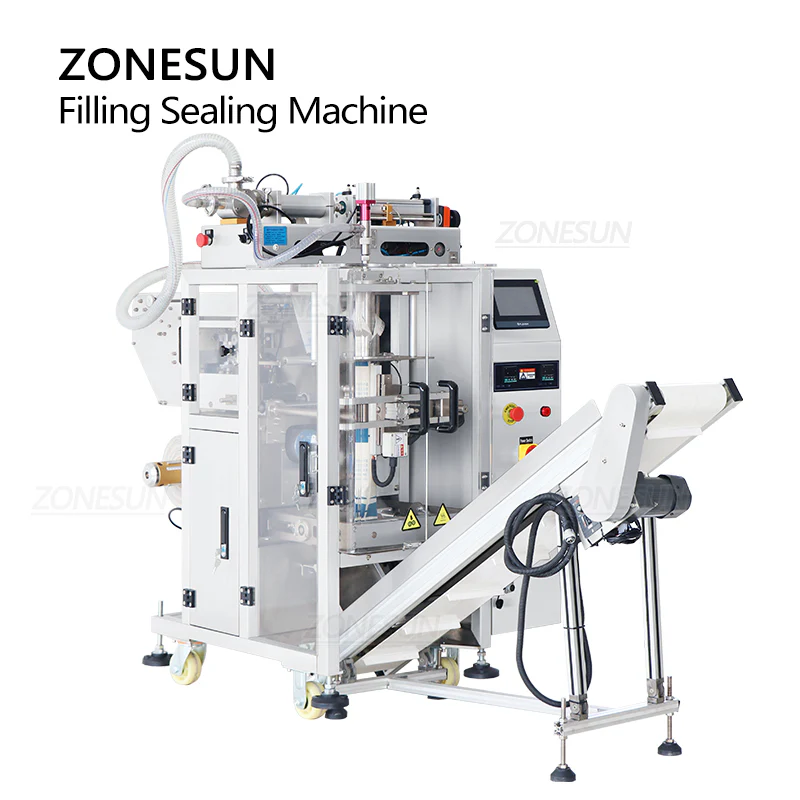

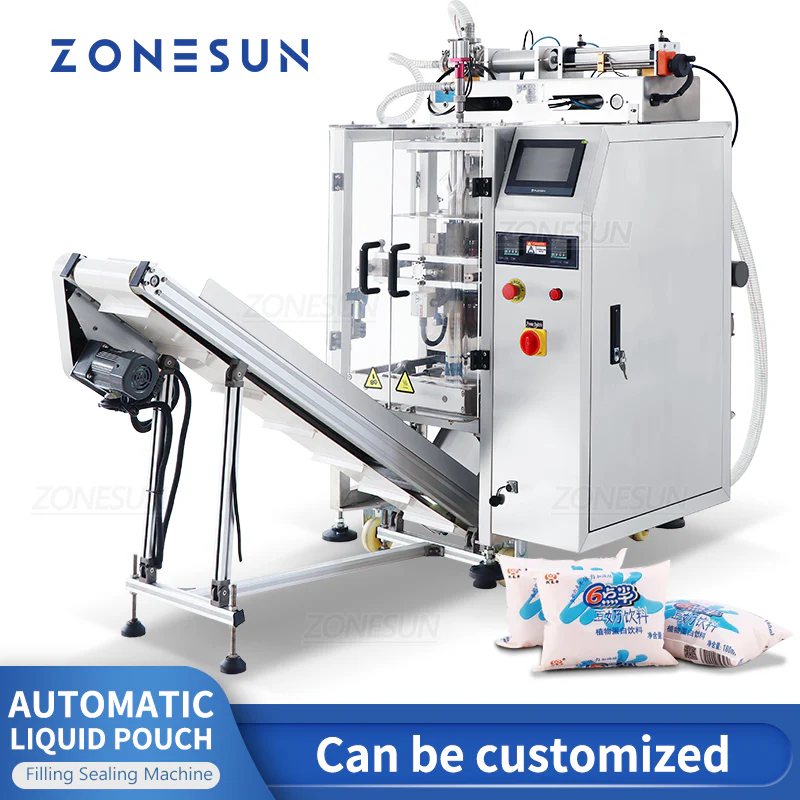

ZONESUN ZS‑GFYT320 Automatic Liquid Pouch Filling & Sealing Machine

The ZONESUN ZS‑GFYT320 is a high‑efficiency automatic liquid pouch filling and sealing machine, ideal for products such as peanut butter, tahini, almond paste, chili sauce, and more. Built with a large hopper, a powerful 4 kW motor, and a wide outlet, it delivers excellent throughput in a space‑saving design. Made from durable 304 stainless steel, it supports multiple sealing formats — back side, three‑side, or four‑side — and works with various films including OPP/CPP, OPP/PE, and NILO PE. Featuring customizable filling volumes (50–500 ml), precise filling accuracy (≤ 0.3–1%), and adjustable conveying speed, this machine meets the demands of both food and daily chemical industries with reliability and flexibility.

PARAMETER

Machine Model

ZS-GFYT320

Voltage

110/220/380V 50-60Hz

Power

4kW

Suitable Film

OPP/CPP OPP/PE NILO PE

Filling Range

50-500ml(Can be customized)

Package Speed

5-60bags/min

(depend on liquid and bag's size)

Width of Film

Max 320mm

Size of Package Bags

(W)50-150mm*(L)50-400mm

Sealing Method

Back side/Three sides/Four sides (Customize)

Filling Accuracy

≤0.3-1%

Film Thickness

0.06-0.12mm

Air Pressure

0.65Mpa 0.7m³/min

Lifting Height

About 1200mm

Conveying Speed

50-300mm/s(Adjustable)

Machine Size

About 830*1080*1450mm

Machine Weight

About 289kg
