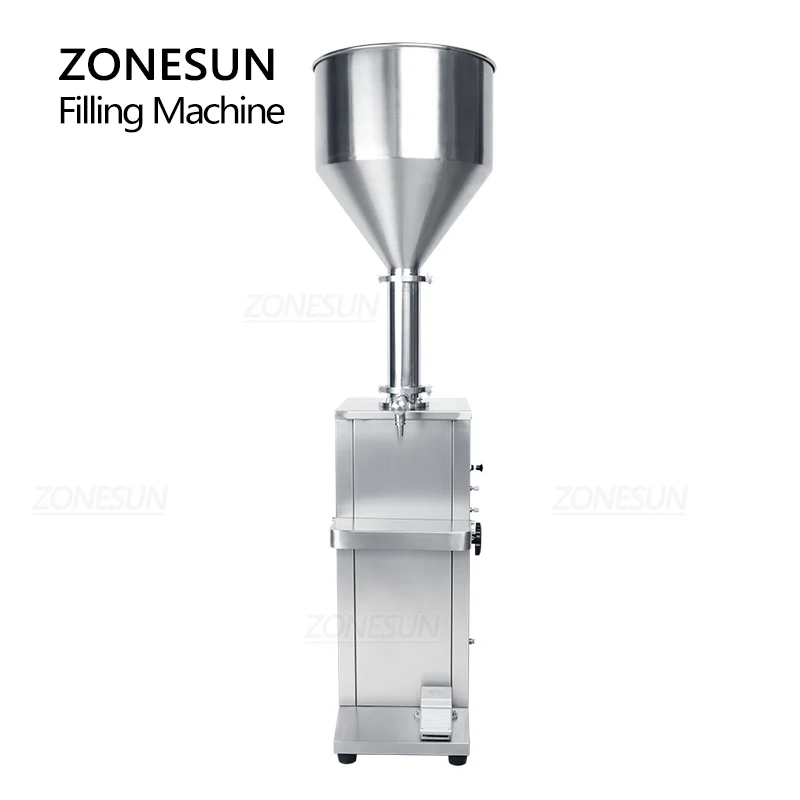

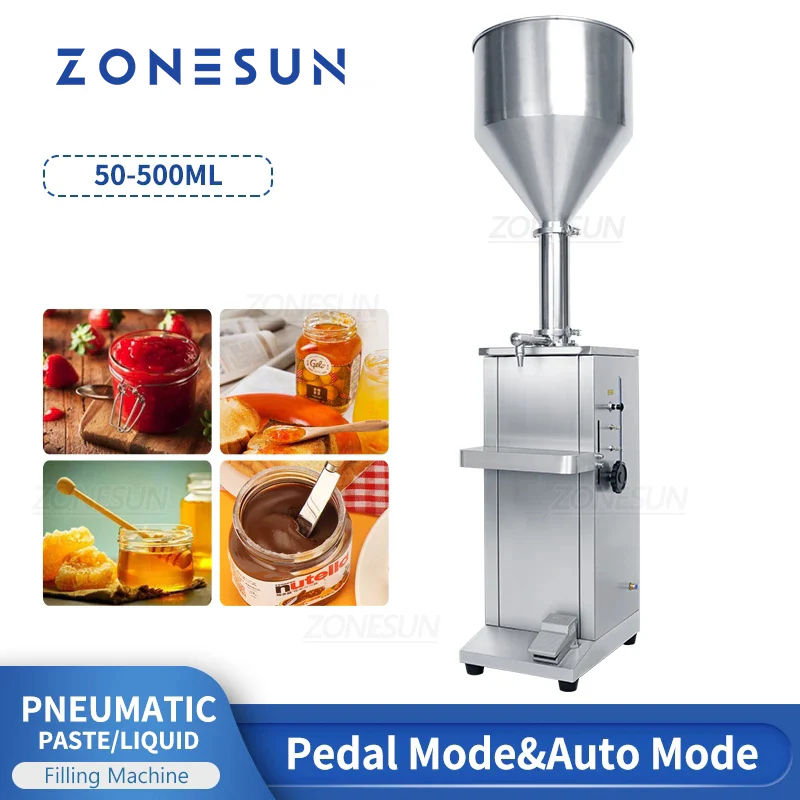

ZONESUN ZS-GT1V Pneumatic Paste Liquid Filling Machine for Gel & Detergent
The ZONESUN ZS-GT1V is a fully pneumatic filling machine designed for precise dispensing of paste and liquid products such as gel, alcohol, and detergent. With a 30L hopper and adjustable filling range from 5ml to 1000ml, it accommodates a wide variety of container sizes and viscosities. Operating at up to 25 bottles per minute, it’s ideal for daily chemical, beverage, and pharmaceutical industries. The machine features ±1% filling accuracy and requires an external air compressor (sold separately), making it a reliable solution for semi-automatic production environments.
ZS-GT1V Fully Pneumatic Paste/Liquid Filling Machine – Technical Specification
Item Specification
Machine Name Fully Pneumatic Paste/Liquid Filling Machine
Machine Model ZS-GT1V
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml
Filling Speed Approx. 1–25 bottles/min (depends on bottle & material)

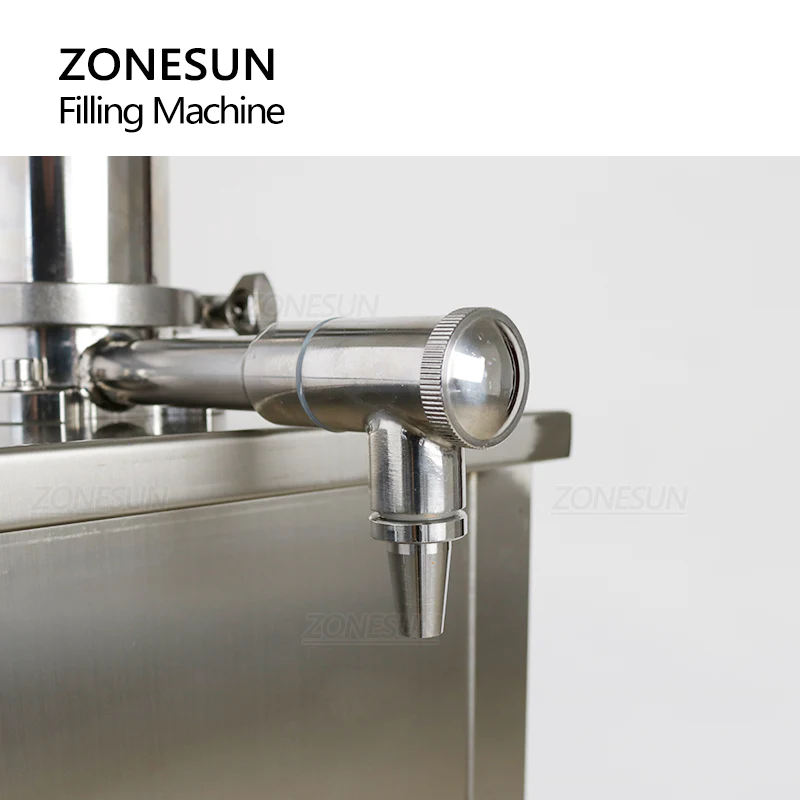

Filling Nozzle Diameter OD 8mm

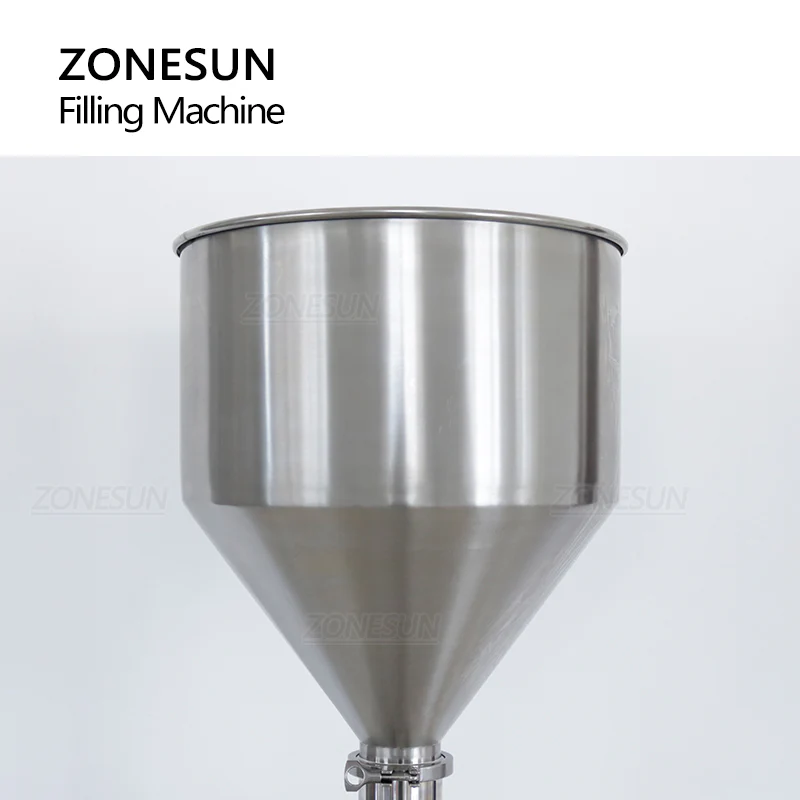

Hopper Capacity 30L
Filling Accuracy ±1%
Air Pressure Requirement 0.4–0.6MPa
Air Compressor Connector OD 8mm
Machine Dimensions (L×W×H) 300mm × 320mm × 1555mm
Machine Weight Approx. 32kg
Package Dimensions 1595mm × 450mm × 460mm
Package Weight Approx. 46kg
The ZONESUN ZS-GT1V is a fully pneumatic filling machine designed for precise dispensing of paste and liquid products such as gel, alcohol, and detergent. With a 30L hopper and adjustable filling range from 5ml to 1000ml, it accommodates a wide variety of container sizes and viscosities. Operating at up to 25 bottles per minute, it’s ideal for daily chemical, beverage, and pharmaceutical industries. The machine features ±1% filling accuracy and requires an external air compressor (sold separately), making it a reliable solution for semi-automatic production environments.
ZS-GT1V Fully Pneumatic Paste/Liquid Filling Machine – Technical Specification
Item Specification
Machine Name Fully Pneumatic Paste/Liquid Filling Machine
Machine Model ZS-GT1V
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml
Filling Speed Approx. 1–25 bottles/min (depends on bottle & material)
Filling Nozzle Diameter OD 8mm
Hopper Capacity 30L
Filling Accuracy ±1%
Air Pressure Requirement 0.4–0.6MPa
Air Compressor Connector OD 8mm
Machine Dimensions (L×W×H) 300mm × 320mm × 1555mm
Machine Weight Approx. 32kg
Package Dimensions 1595mm × 450mm × 460mm
Package Weight Approx. 46kg
Original: $750.00
-70%$750.00
$225.00Description
The ZONESUN ZS-GT1V is a fully pneumatic filling machine designed for precise dispensing of paste and liquid products such as gel, alcohol, and detergent. With a 30L hopper and adjustable filling range from 5ml to 1000ml, it accommodates a wide variety of container sizes and viscosities. Operating at up to 25 bottles per minute, it’s ideal for daily chemical, beverage, and pharmaceutical industries. The machine features ±1% filling accuracy and requires an external air compressor (sold separately), making it a reliable solution for semi-automatic production environments.
ZS-GT1V Fully Pneumatic Paste/Liquid Filling Machine – Technical Specification
Item Specification
Machine Name Fully Pneumatic Paste/Liquid Filling Machine
Machine Model ZS-GT1V
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml
Filling Speed Approx. 1–25 bottles/min (depends on bottle & material)
Filling Nozzle Diameter OD 8mm
Hopper Capacity 30L
Filling Accuracy ±1%
Air Pressure Requirement 0.4–0.6MPa
Air Compressor Connector OD 8mm
Machine Dimensions (L×W×H) 300mm × 320mm × 1555mm
Machine Weight Approx. 32kg
Package Dimensions 1595mm × 450mm × 460mm
Package Weight Approx. 46kg
