The ZONESUN ZS‑DTGT1P Pneumatic Paste & Viscous Liquid Filling Machine combines precision filling technology with automated conveyor operation for higher efficiency. Powered by compressed air, it supports dual filling ranges of 10–100 ml or 50–500 ml and achieves 10–15 bottles per minute (based on 100 ml gel), with an accuracy of ≤ ±0.5%. Its 30 L hopper and adjustable conveyor ensure smooth, continuous production, while the durable construction makes it ideal for food, beverage, daily chemical, and cosmetics industries.

PARAMETER

• Machine Model: ZS-DTGT1P
• Power Supply: 110V/220V, 50–60Hz, 60W
• Filling Range: 10–100ml / 50–500ml
• Filling Speed: 10–15 bottles/min (based on 100ml gel)
• Filling Accuracy: ≤ ±0.5%

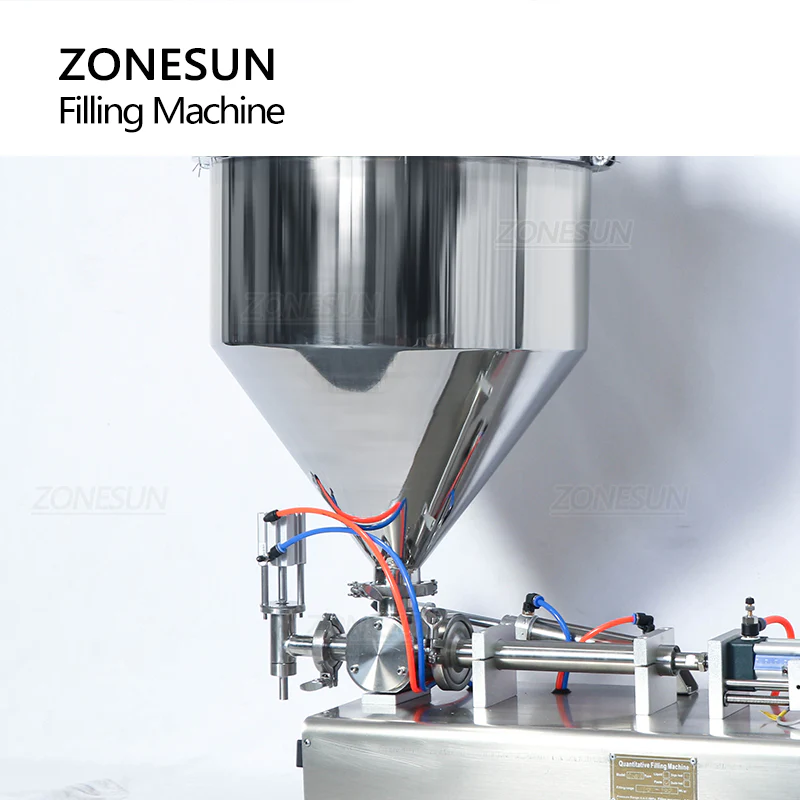

• Hopper Capacity: 30L
• Required Air Pressure: 0.4–0.9Mpa
• Filling Nozzle Size: Outer Diameter 10mm
• Conveyor Size: 1200mm (L) × 100mm (W)
• Maximum Conveyor Load: 6kg / 6 bottles of 1000ml water
• Conveyor Speed: Adjustable
