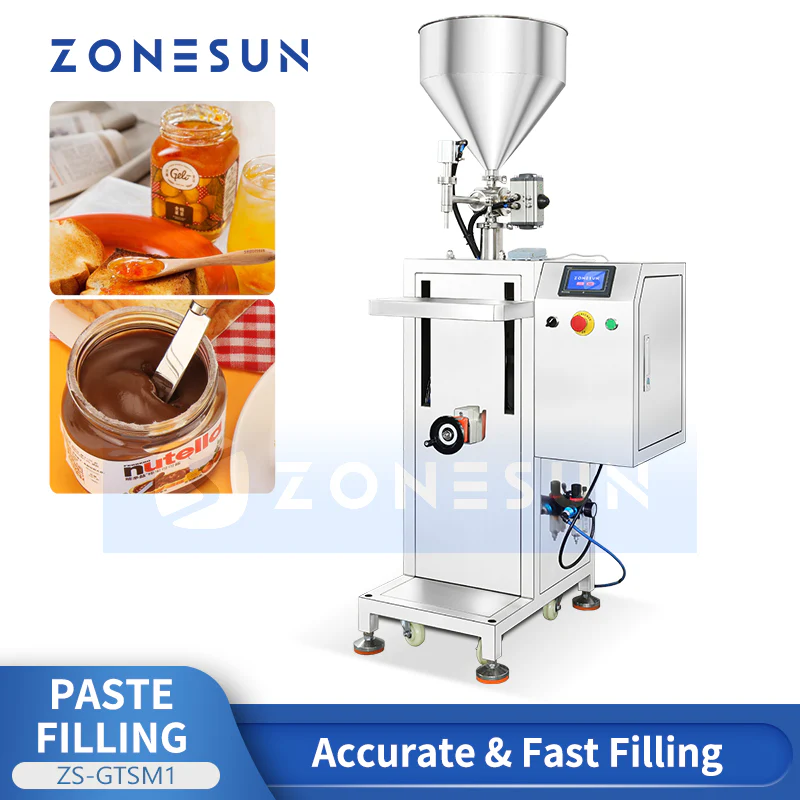

ZONESUN ZS‑GTSM1 Semi‑auto Servo Motor Paste Filling Machine

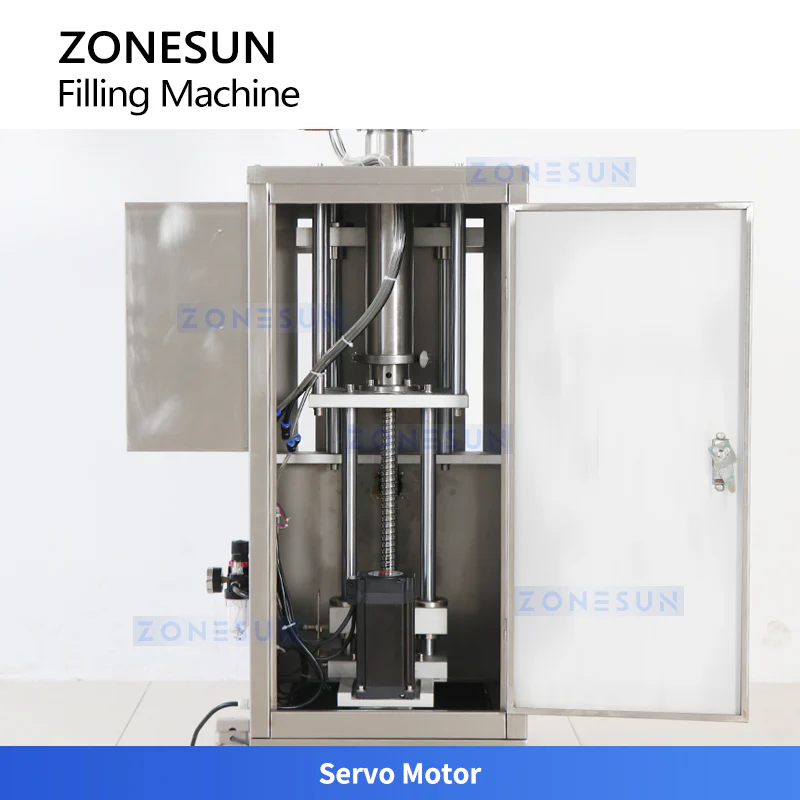

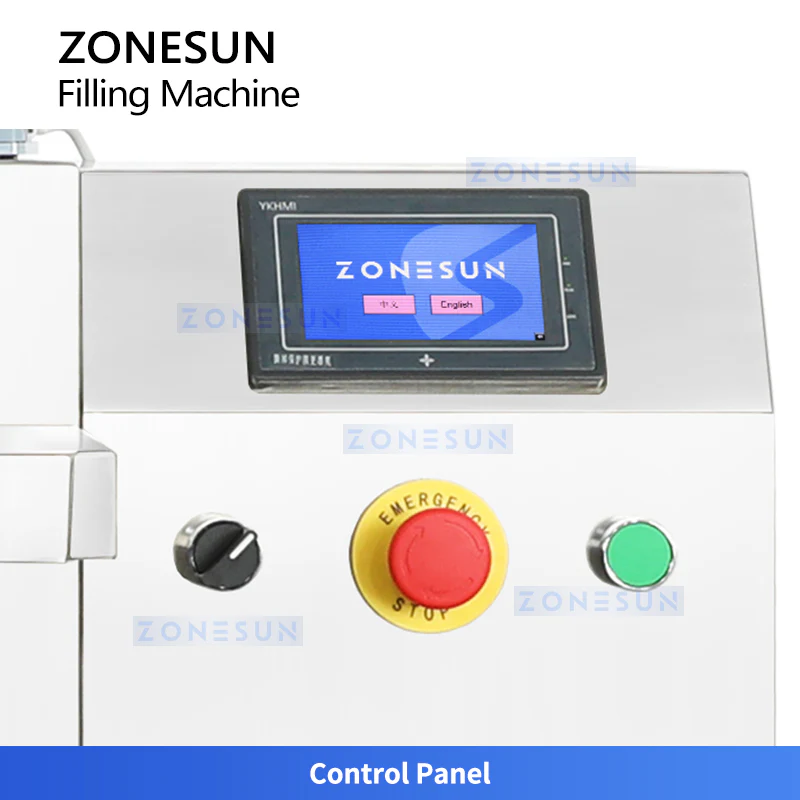

The ZONESUN ZS‑GTSM1 Semi‑automatic Servo Motor Rotor Pump Paste Filling Machine offers exceptional accuracy thanks to its servo motor control system. Filling volume and speed can be easily adjusted via user‑friendly parameter settings, ensuring flexibility for different production needs. Built for versatility, it efficiently handles viscous products such as honey, glue, syrup, and ketchup with a filling accuracy of ≤ ± 0.5 %.

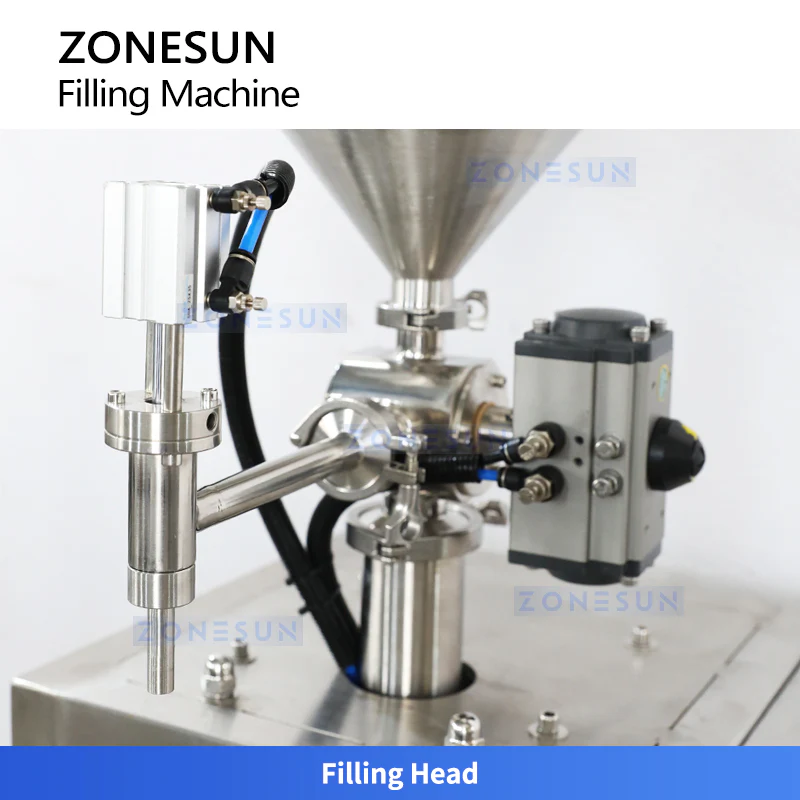

Designed for food, daily chemical, and cosmetics industries, this model delivers consistent performance at 10–25 bottles/min (depending on bottle size and liquid). The rotor pump ensures smooth, precise paste delivery, while the compact design saves valuable workspace.
Specifications
- Model: ZS‑GTSM1
- Voltage: 220 / 110 V, 50 / 60 Hz
- Power: Approx. 950 W
- Filling Accuracy: ≤ ± 0.5 %
- Filling Speed: Approx. 10 – 25 bottles/min (depends on bottle size & liquid)
- Filling Volume: 5 – 100 / 10 – 300 / 50 – 500 / 100 – 1000 ml
- Equipped Air Pressure: 0.4 – 0.6 MPa
- Air Consumption: ≥ 0.1 m³/min
- Machine Size: Approx. 580 × 590 × 1590 mm
- Machine Weight: Approx. 92 kg
- Package Size: Approx. 700 × 1520 × 700 mm
- Package Weight: Approx. 116 kg
The ZONESUN ZS‑GTSM1 Semi‑automatic Servo Motor Rotor Pump Paste Filling Machine offers exceptional accuracy thanks to its servo motor control system. Filling volume and speed can be easily adjusted via user‑friendly parameter settings, ensuring flexibility for different production needs. Built for versatility, it efficiently handles viscous products such as honey, glue, syrup, and ketchup with a filling accuracy of ≤ ± 0.5 %.
Designed for food, daily chemical, and cosmetics industries, this model delivers consistent performance at 10–25 bottles/min (depending on bottle size and liquid). The rotor pump ensures smooth, precise paste delivery, while the compact design saves valuable workspace.
Specifications
- Model: ZS‑GTSM1
- Voltage: 220 / 110 V, 50 / 60 Hz
- Power: Approx. 950 W
- Filling Accuracy: ≤ ± 0.5 %
- Filling Speed: Approx. 10 – 25 bottles/min (depends on bottle size & liquid)
- Filling Volume: 5 – 100 / 10 – 300 / 50 – 500 / 100 – 1000 ml
- Equipped Air Pressure: 0.4 – 0.6 MPa
- Air Consumption: ≥ 0.1 m³/min
- Machine Size: Approx. 580 × 590 × 1590 mm
- Machine Weight: Approx. 92 kg
- Package Size: Approx. 700 × 1520 × 700 mm
- Package Weight: Approx. 116 kg
Original: $2,559.00
-70%$2,559.00
$767.70Description
The ZONESUN ZS‑GTSM1 Semi‑automatic Servo Motor Rotor Pump Paste Filling Machine offers exceptional accuracy thanks to its servo motor control system. Filling volume and speed can be easily adjusted via user‑friendly parameter settings, ensuring flexibility for different production needs. Built for versatility, it efficiently handles viscous products such as honey, glue, syrup, and ketchup with a filling accuracy of ≤ ± 0.5 %.
Designed for food, daily chemical, and cosmetics industries, this model delivers consistent performance at 10–25 bottles/min (depending on bottle size and liquid). The rotor pump ensures smooth, precise paste delivery, while the compact design saves valuable workspace.
Specifications
- Model: ZS‑GTSM1
- Voltage: 220 / 110 V, 50 / 60 Hz
- Power: Approx. 950 W
- Filling Accuracy: ≤ ± 0.5 %
- Filling Speed: Approx. 10 – 25 bottles/min (depends on bottle size & liquid)
- Filling Volume: 5 – 100 / 10 – 300 / 50 – 500 / 100 – 1000 ml
- Equipped Air Pressure: 0.4 – 0.6 MPa
- Air Consumption: ≥ 0.1 m³/min
- Machine Size: Approx. 580 × 590 × 1590 mm
- Machine Weight: Approx. 92 kg
- Package Size: Approx. 700 × 1520 × 700 mm
- Package Weight: Approx. 116 kg
