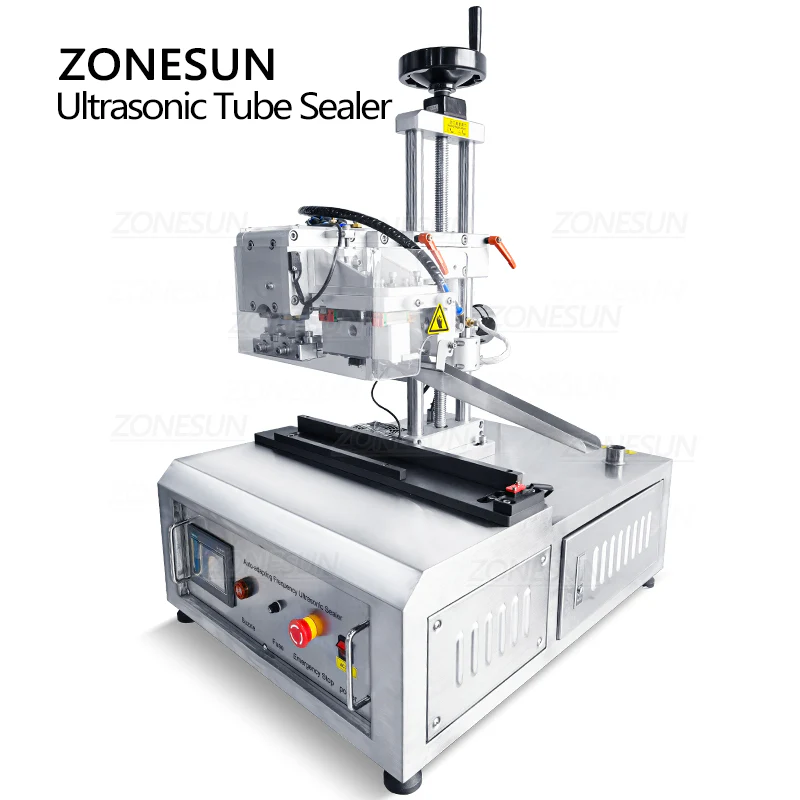

ZONESUN ZS‑FK003U Ultrasonic Tube Sealing Machine 10‑50 mm
The ZONESUN ZS‑FK003U Ultrasonic Tube Sealing Machine combines ultrasonic and heat‑sealing technology for efficient, reliable closure of soft metal and plastic tubes measuring 10–50 mm in diameter. Designed for tube heights of 10–250 mm, it delivers a sealing capacity of 8–18 pieces per minute with precise control over air pressure and temperature. Ideal for the food, cosmetics, and daily chemical industries, this machine ensures consistent seals, compact design, and durable components from leading brands including Coolmay, OMRON, AirTAC, and SICK.
ZONESUN ZS‑FK003U — Specifications
Parameter Details
Model ZS‑FK003U
Voltage 220 V / 110 V, 50/60 Hz
Power 600 W
Frequency 20 kHz
Tube Height 10 – 250 mm
Sealing Diameter 10 – 50 mm
Capacity 8 – 18 pcs/min
Air Pressure 0.5 – 0.6 MPa
Dimension (L×W×H) 56 × 53.7 × 88 cm
Net Weight 105 kg
PRODUCT DETAILS
HEIGHT
The sealing height is adjustable with a knob. It is applicable to tubes that are 10-250mm in height.
COPPER BLOCKS
It adopts ultrasonic to heat up rapidly and is durable with copper blocks.

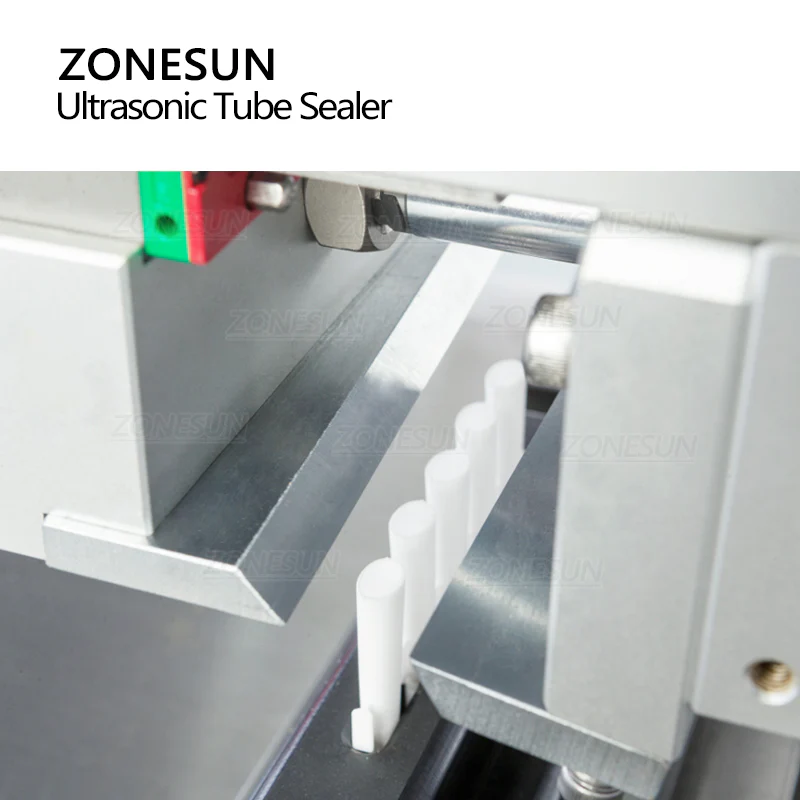

CUTTER
The height of the cutter is also adjustable. It is made of alloy steel and it can automatically remove the tails to the trough.
CUSTOMIZABLE JIG
The jig is customizable for the tubes that are 10-250mm in height and 10-50mm in diameter.
The ZONESUN ZS‑FK003U Ultrasonic Tube Sealing Machine combines ultrasonic and heat‑sealing technology for efficient, reliable closure of soft metal and plastic tubes measuring 10–50 mm in diameter. Designed for tube heights of 10–250 mm, it delivers a sealing capacity of 8–18 pieces per minute with precise control over air pressure and temperature. Ideal for the food, cosmetics, and daily chemical industries, this machine ensures consistent seals, compact design, and durable components from leading brands including Coolmay, OMRON, AirTAC, and SICK.
ZONESUN ZS‑FK003U — Specifications
Parameter Details
Model ZS‑FK003U
Voltage 220 V / 110 V, 50/60 Hz
Power 600 W
Frequency 20 kHz
Tube Height 10 – 250 mm
Sealing Diameter 10 – 50 mm
Capacity 8 – 18 pcs/min
Air Pressure 0.5 – 0.6 MPa
Dimension (L×W×H) 56 × 53.7 × 88 cm
Net Weight 105 kg
PRODUCT DETAILS
HEIGHT
The sealing height is adjustable with a knob. It is applicable to tubes that are 10-250mm in height.
COPPER BLOCKS
It adopts ultrasonic to heat up rapidly and is durable with copper blocks.
CUTTER
The height of the cutter is also adjustable. It is made of alloy steel and it can automatically remove the tails to the trough.
CUSTOMIZABLE JIG
The jig is customizable for the tubes that are 10-250mm in height and 10-50mm in diameter.
Original: $5,899.00
-70%$5,899.00
$1,769.70Description
The ZONESUN ZS‑FK003U Ultrasonic Tube Sealing Machine combines ultrasonic and heat‑sealing technology for efficient, reliable closure of soft metal and plastic tubes measuring 10–50 mm in diameter. Designed for tube heights of 10–250 mm, it delivers a sealing capacity of 8–18 pieces per minute with precise control over air pressure and temperature. Ideal for the food, cosmetics, and daily chemical industries, this machine ensures consistent seals, compact design, and durable components from leading brands including Coolmay, OMRON, AirTAC, and SICK.
ZONESUN ZS‑FK003U — Specifications
Parameter Details
Model ZS‑FK003U
Voltage 220 V / 110 V, 50/60 Hz
Power 600 W
Frequency 20 kHz
Tube Height 10 – 250 mm
Sealing Diameter 10 – 50 mm
Capacity 8 – 18 pcs/min
Air Pressure 0.5 – 0.6 MPa
Dimension (L×W×H) 56 × 53.7 × 88 cm
Net Weight 105 kg
PRODUCT DETAILS
HEIGHT
The sealing height is adjustable with a knob. It is applicable to tubes that are 10-250mm in height.
COPPER BLOCKS
It adopts ultrasonic to heat up rapidly and is durable with copper blocks.
CUTTER
The height of the cutter is also adjustable. It is made of alloy steel and it can automatically remove the tails to the trough.
CUSTOMIZABLE JIG
The jig is customizable for the tubes that are 10-250mm in height and 10-50mm in diameter.
